| Current Rating | 10A |
| Voltage Type | AC |
| Resolution | If Current in mA = 1 mA If Current in Amp = 0.001A |
| Input Current | 30 mA To 3.00 Amp AC |
| Display Currant Range | 0.030 To 3.000 Amp AC |
| Country of Origin | Made in India |

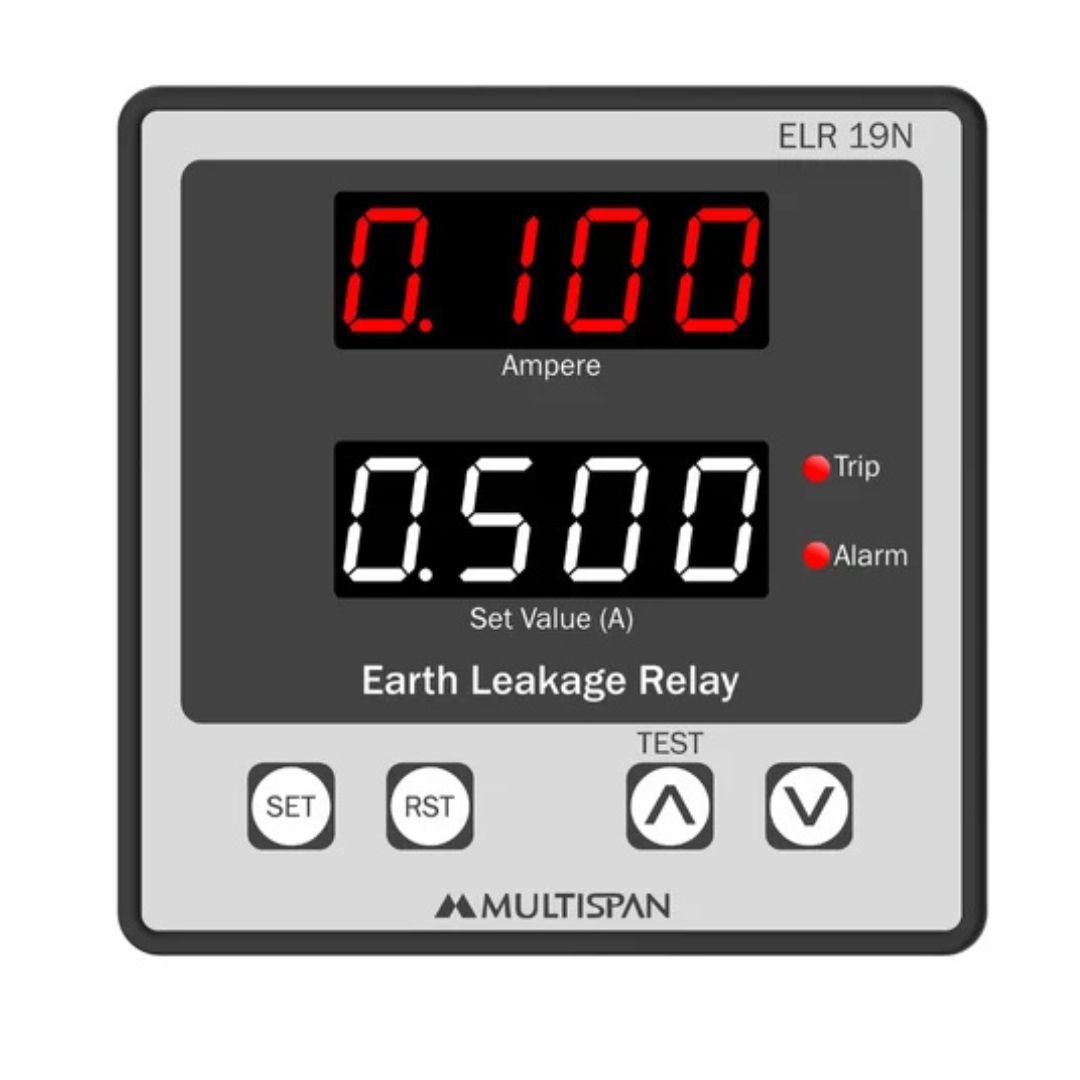

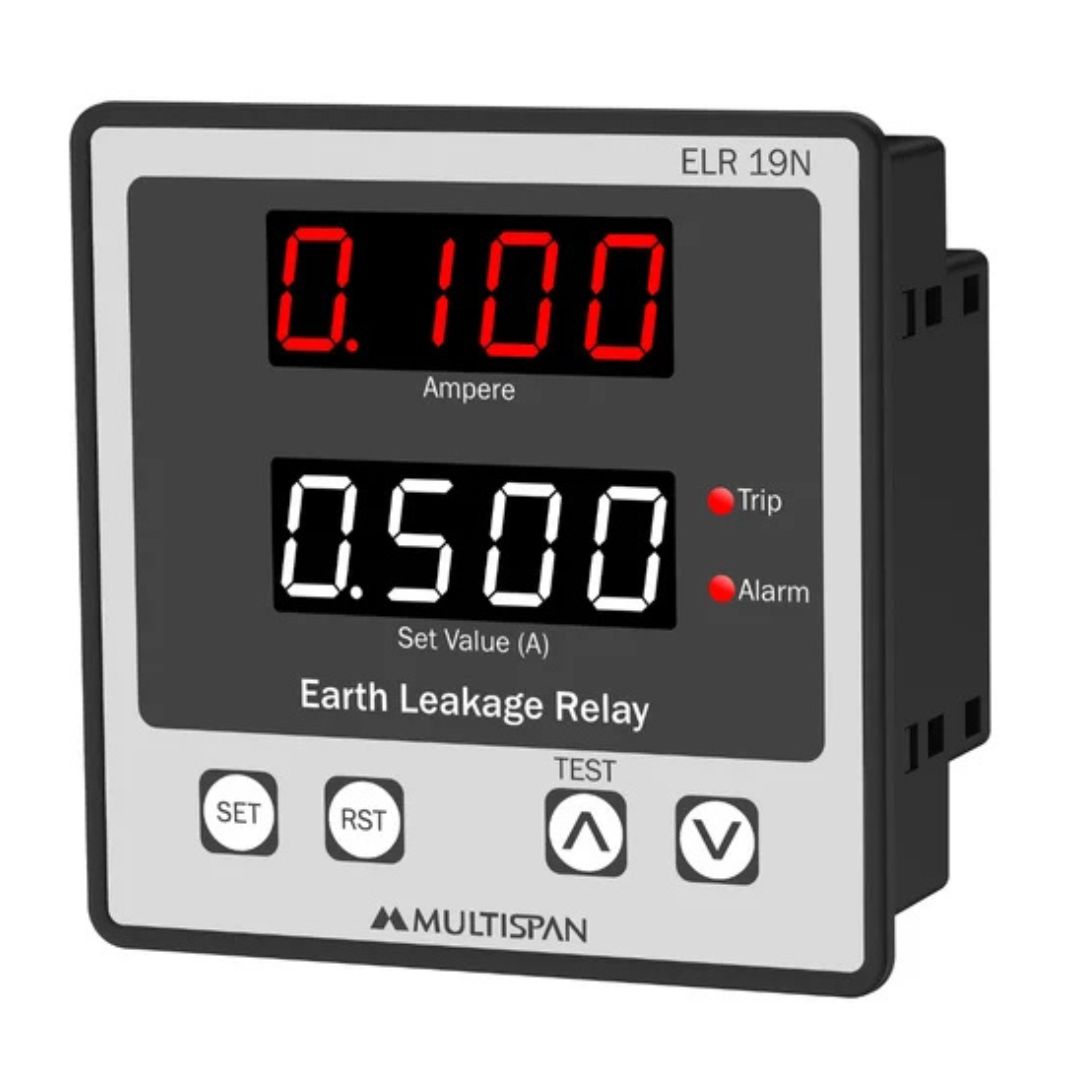

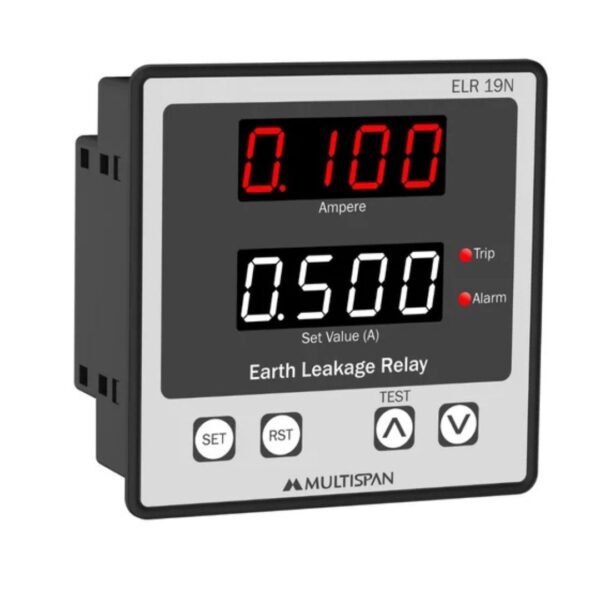

Product: Multispan ELR-19N
- 4+4 Digital Display for Indication of Leakage and Set Current
- 1-Relay, 1-C/O,5A,230V AC
- Fail Safe and Non Fail Safe Mode
- RS-485 Modbus Available
- Size: (H)96mm X (W)96mm X (D)54mm
- Supply Voltage: 100-270V AC/DC
| INPUT SPECIFICATION | |
| Input Current | 30 mA To 3.00 Amp AC |
| Display Currant Range | 0.030 To 3.000 Amp AC |
| Resolution | If Current in mA = 1 mA If Current in Amp = 0.001A |
| DISPLAY & KEYS : | |
| Display | Upper: 4-Digit ,7-Seg, 0.56”, Red Lower: 4-Digit ,7-Seg, 0.56”,White |
| Keys | SET, INC, DEC, ENT/RST |
| DIMENSION : | |
| Size (mm) | 96 (H) X 96 (W) X 54 (D) |
| Panel Cutout (mm) | 92 (H) X 92 (W) |
| OUTPUT SPECIFICATION : | |
| Relay | 1 Nos. |
| Relay Type | 1-C/O (NO-C-NC) |
| Rating | 10A,230V AC Resistive Load |
| AUXILIARY SUPPLY : | |
| Supply Voltage | 100 To 250 V AC,50/60Hz |
| Power Consumption (VA Rating) | 4VA @ 230 VAC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level (As per request) |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
Application
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
