| Material | Brass |
| End Connection Type | Threaded |
| Automation Grade | Automatic |
| Media | Air |
| Maximum Pressure | 60 PSI |

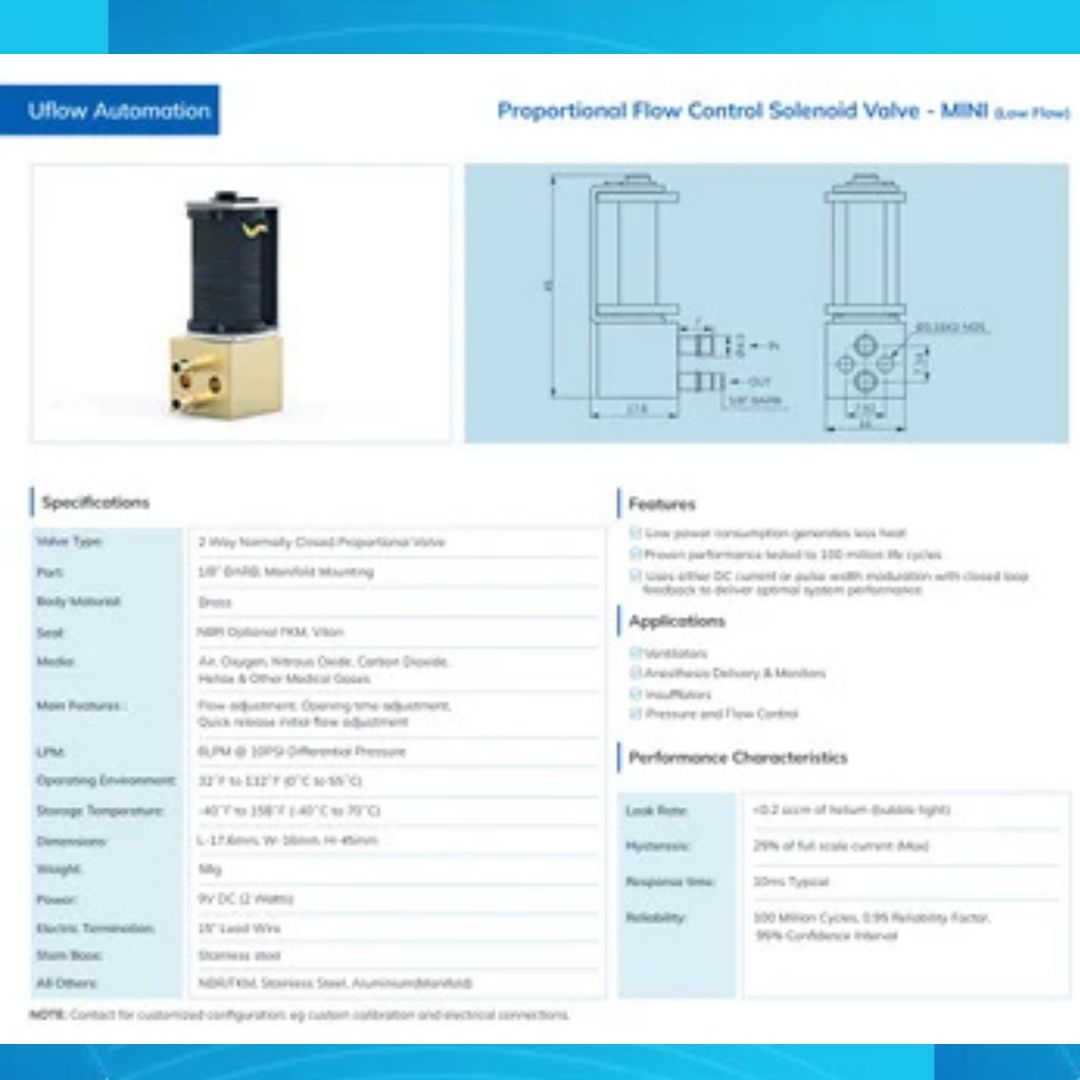

Valve Type: 2 Way Normally Closed Proportional Valve
Port: 1/8” BARB, Manifold Mounting
Body Material: Brass
Seal: NBR Optional FKM, Viton
Media: Air, Oxygen, Nitrous Oxide, Carbon Dioxide, Heliox & Other Medical Gases
Main Features : Flow adjustment, Opening time adjustment, Quick release initial flow adjustment
LPM: 6LPM @ 10PSI Differential Pressure
Operating Environment: 32˚F to 132˚F (0˚C to 55˚C)
Storage Temperature: -40˚F to 158˚F (-40˚C to 70˚C)
Dimensions: L-17.6mm, W-16mm, H-45mm
Weight: 58g
Power: 9V DC (2 Watts)
Electric Termination: 15” Lead Wire
Stem Base: Stainless steel
