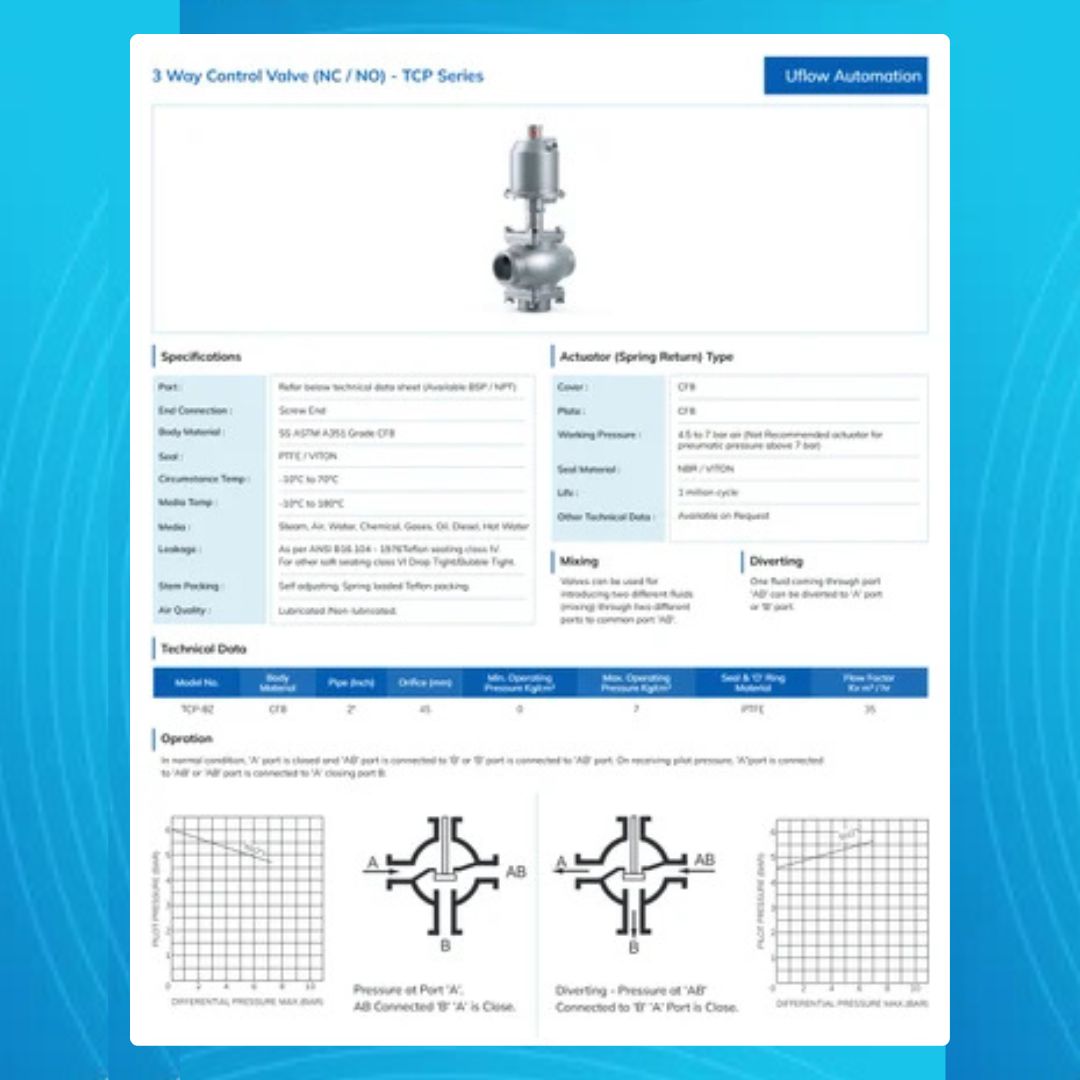

3 Way Control Valve (Normally Close / Open)

Uflow 3 Way Control Valve (Normally Close/ Open)

Port : 2″
End Connection : Screw End
Body Material : SS ASTM A351 Grade CF8
Seal : PTFE / VITON
Circumstance Temp : -10°C to 70°C
Media Temp : -10°C to 180°C
Media : Steam, Air, Water, Chemical, Gases, Oil, Diesel, Hot Water
Leakage : As per ANSI B16.104 – 1976Teflon seating class IV.
Stem Packing : Self adjusting, Spring loaded Teflon packing.
Air Quality : Lubricated /Non-lubricated.
