| Valve Size | 1/4 inch |
| Material | Aluminium, Nitrile, Polymer, Brass |
| Media | Compressed Air (Filtered & Lubricated) |
| Coil Voltage | 24V AC/9W, 110V AC/9W, 230V AC/9W, 12V DC/10W, 24V DC/11W |
| Country of Origin | Made in India |

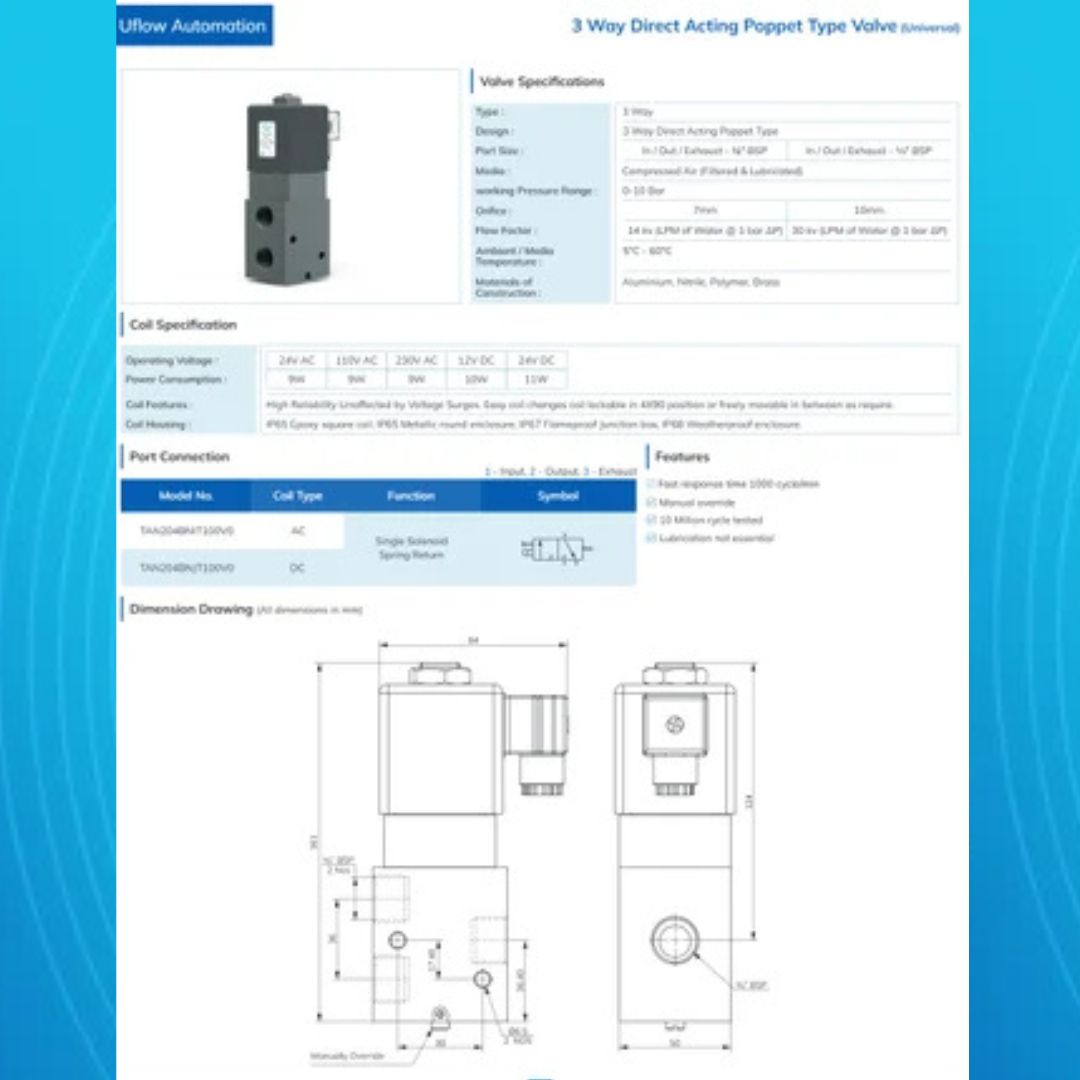

Type: 3 Way
Design : 3 Way Direct Acting Poppet Type
Port Size : In / Out / Exhaust – 1/4″ BSP, In / Out / Exhaust – ½” BSP
Working Pressure Range : 0-10 Bar
Orifice : 7mm/ 10mm
Flow Factor : 14 kv (LPM of Water @ 1 bar ΔP)/ 30 kv (LPM of Water @ 1 bar ΔP)
Ambient / Media Temperature : 5°C – 60°C
Features
- Fast response time 1000 cycle/min
- Manual override
- 10 Million cycle tested
- Lubrication not essential
