| Type | Digital |
| Accuracy | Class 0.5 |
| Input Current | Primary: 5 to 4000A Selectable |
| Operating Temperature | Upto 95% RH Non Condensing |
| Power Supply | 230V AC, 50Hz |

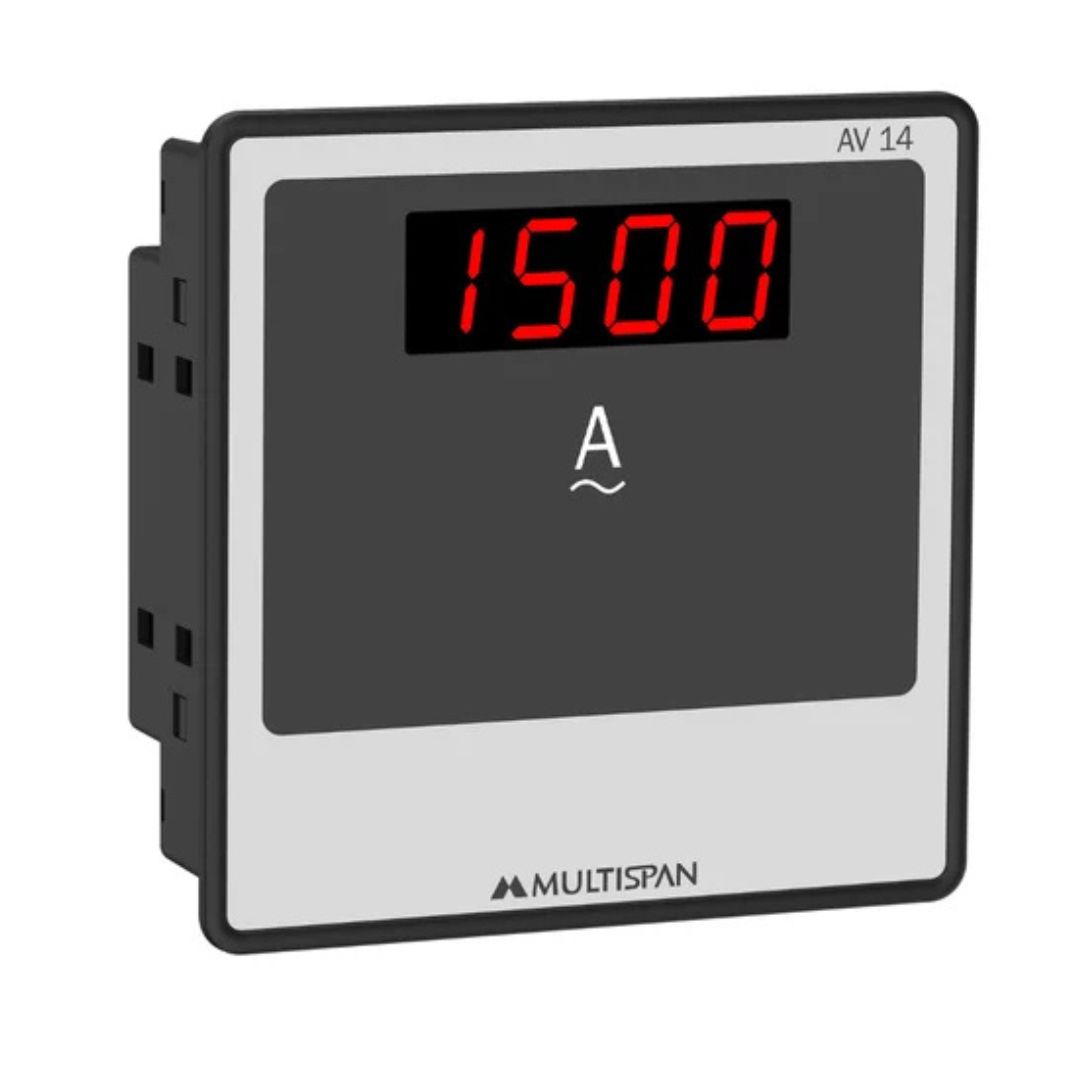

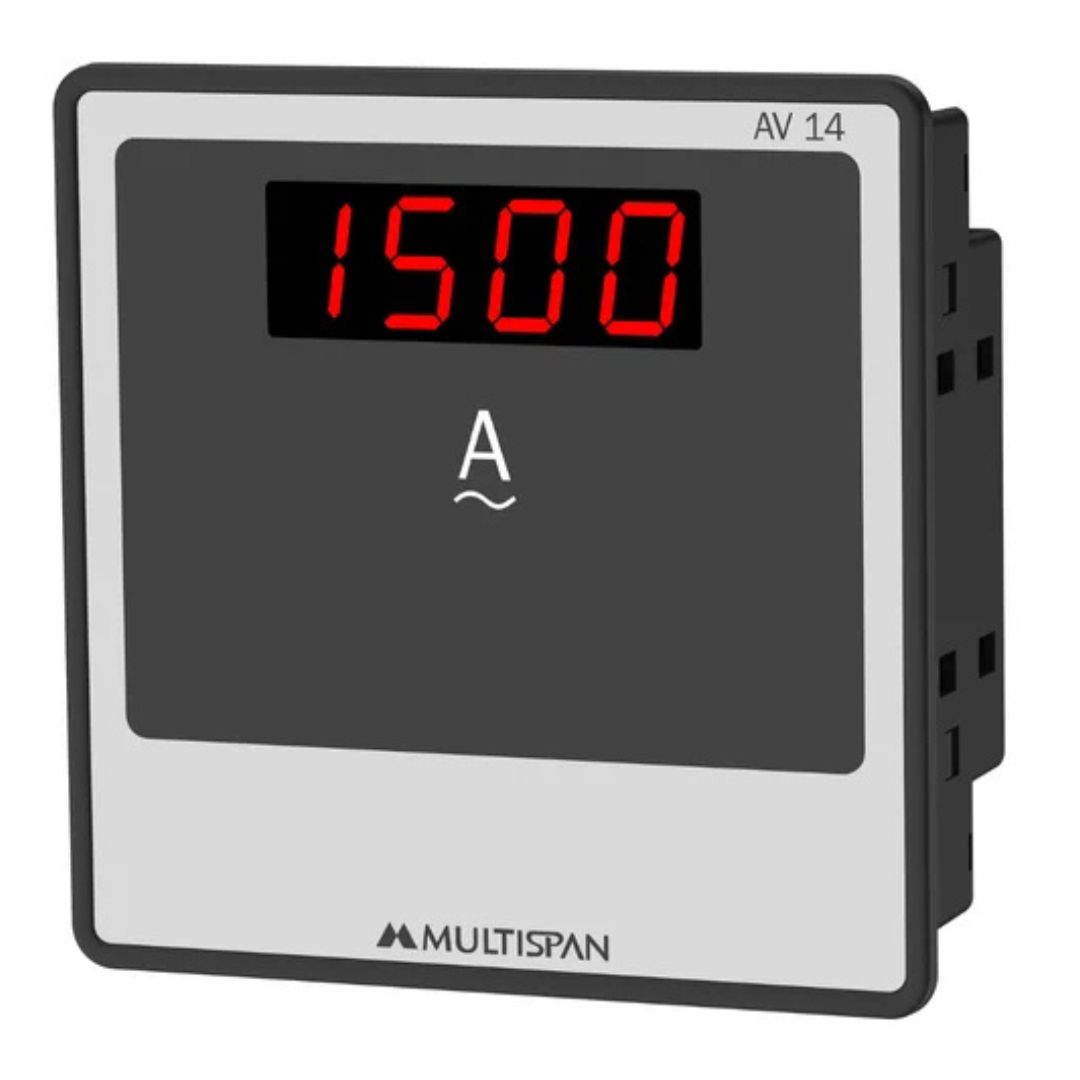

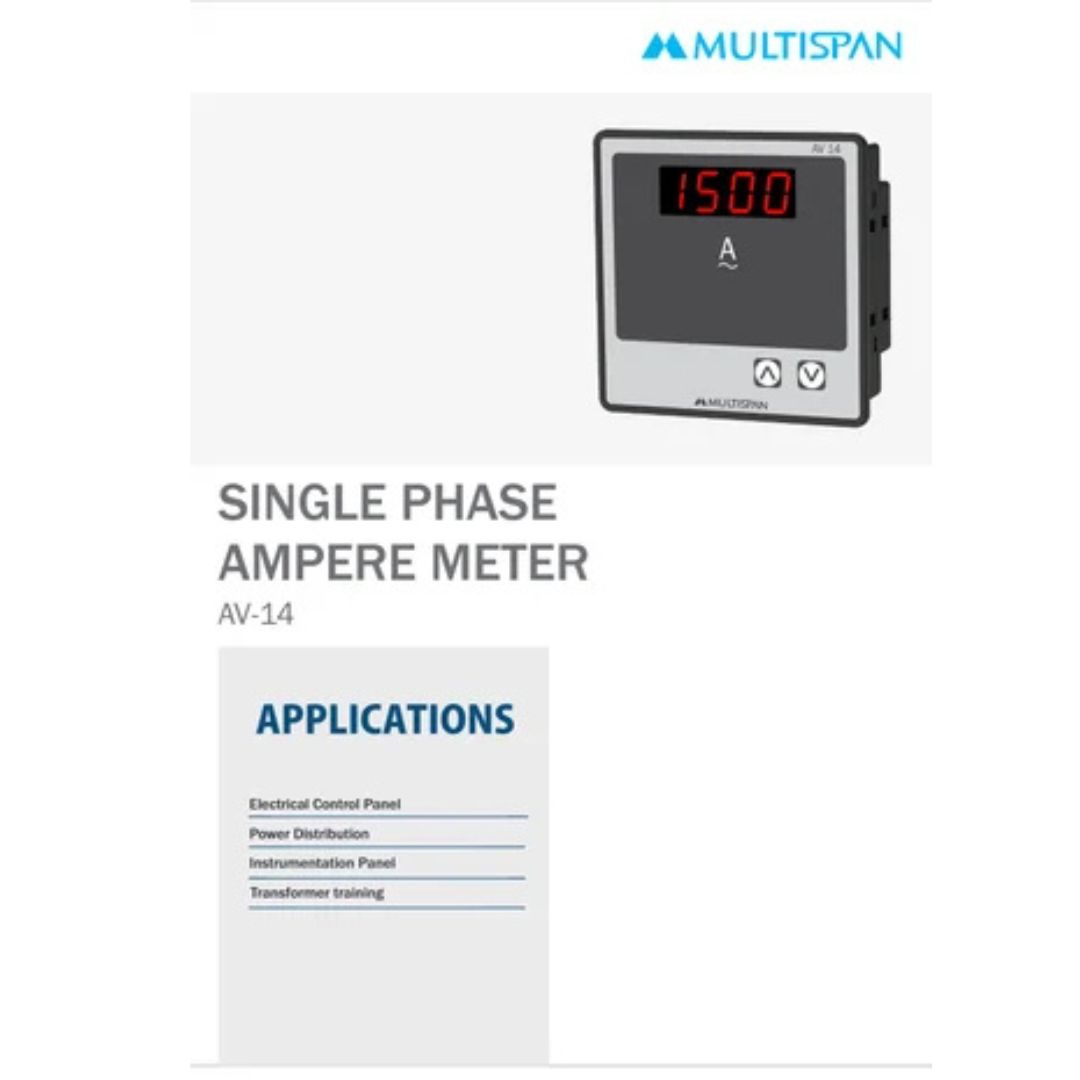

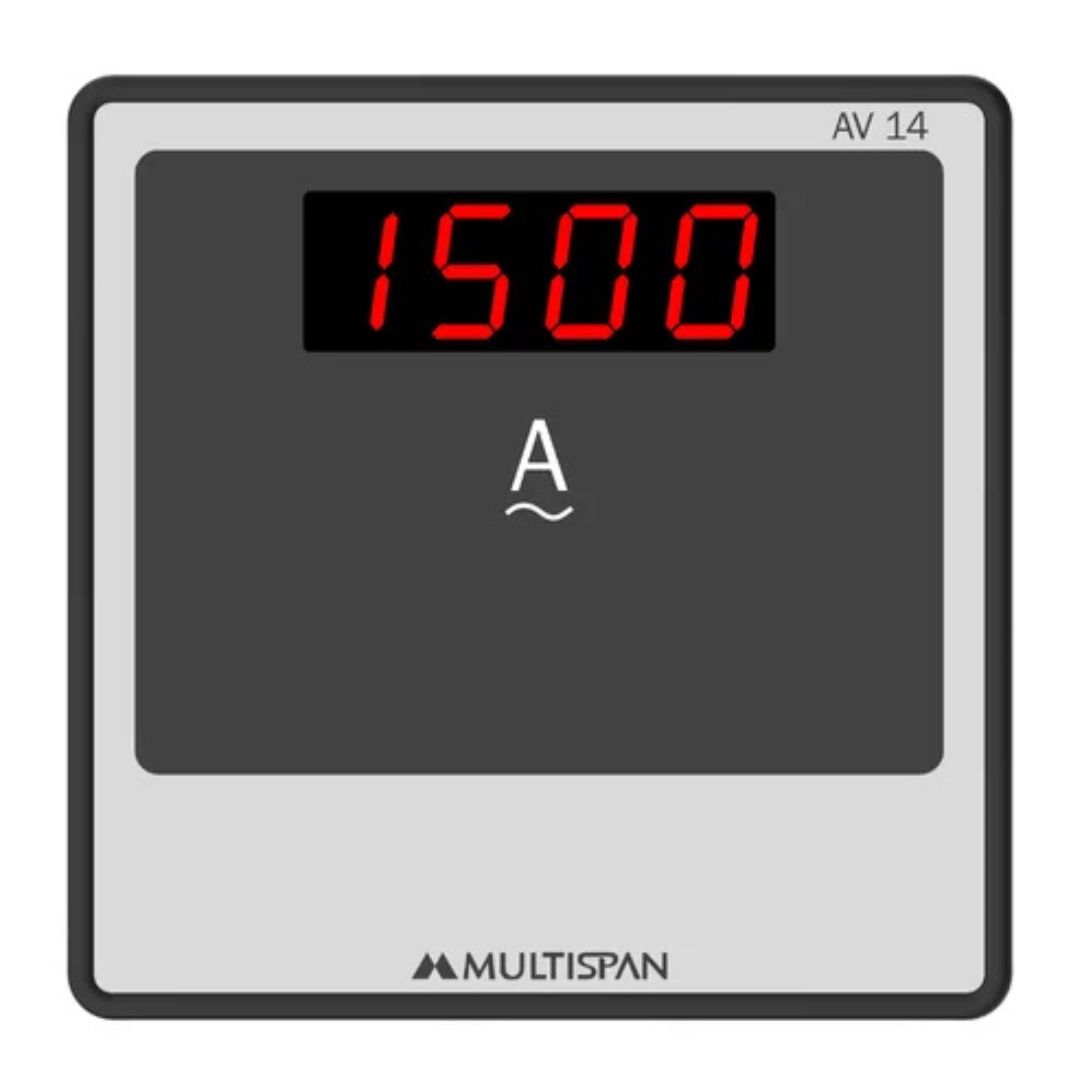

Product: MULTISPAN AV-14
- 7-Segment, 4-Digit LED Display
- CT Selectable Upto 4000/5

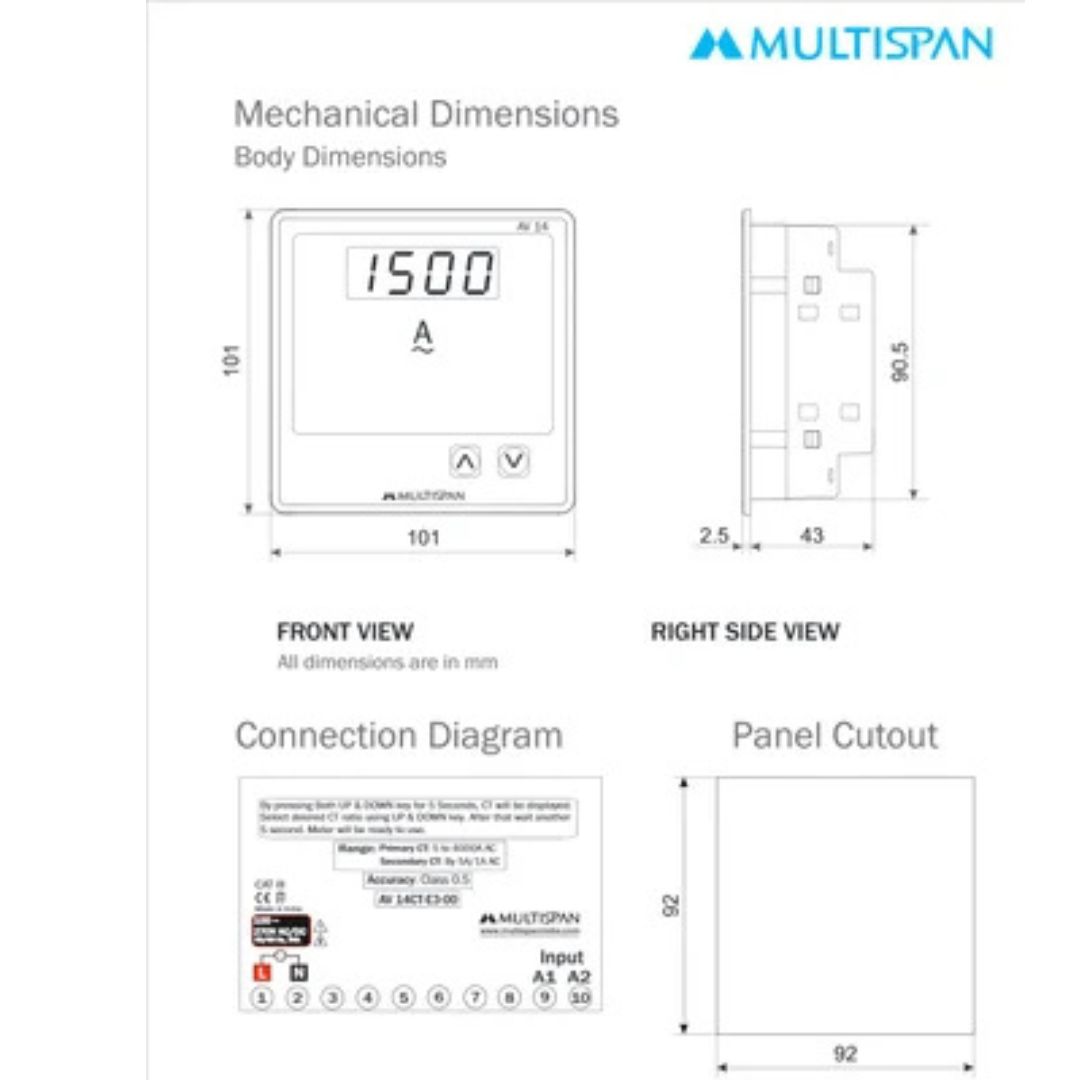

- Size: (H)96mm X (W)96mm X(D)43mm
- Supply Voltage: 230V AC

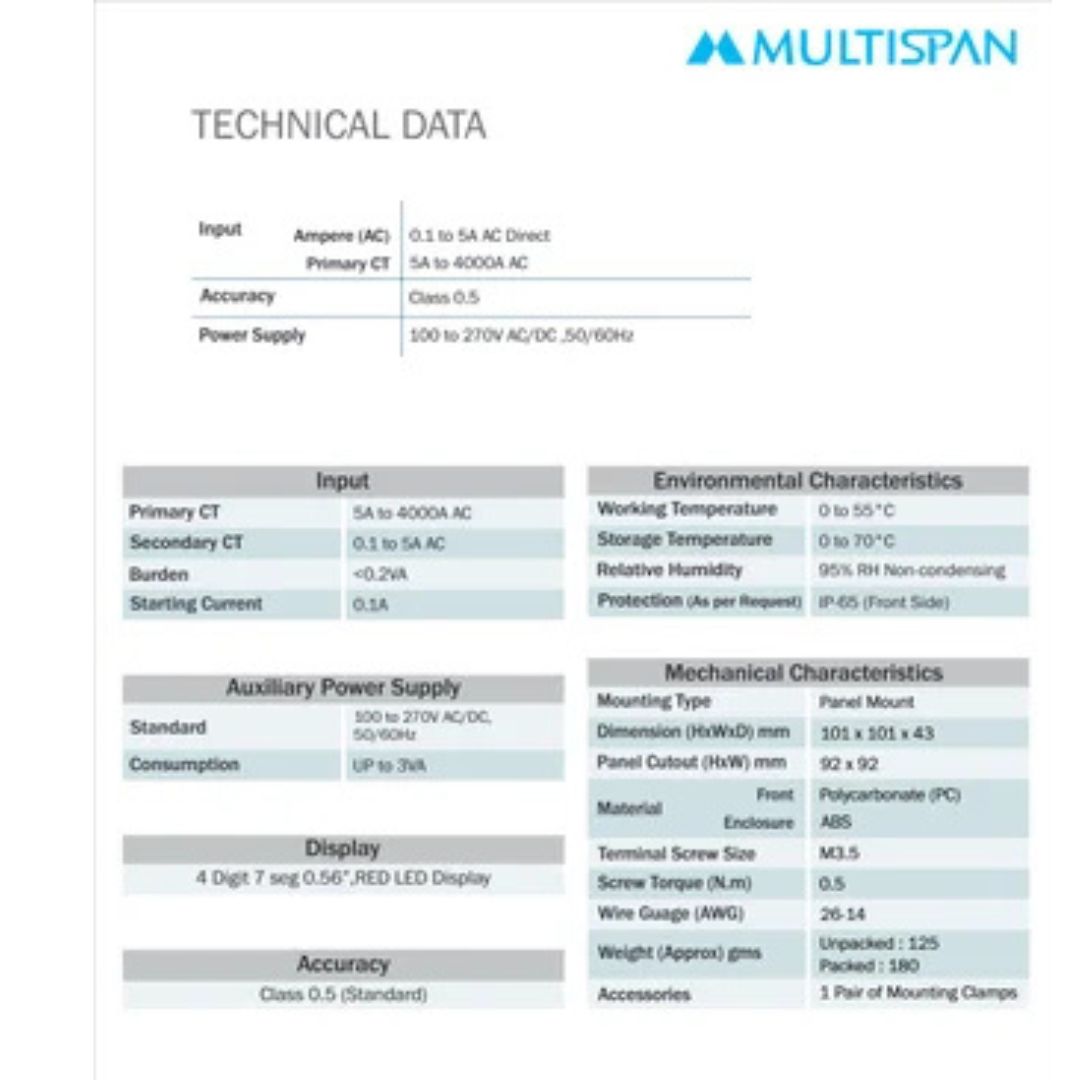

| Model | AV-14 |
| Display | 4-Digit, 7-Seg 0.56”, Red LED Display |
| Size (mm) | 96 (H) X 96 (W) X 43 (D) |
| Panel Cutout (mm) | 92 (H) X 92 (W) |
| Input Current | Primary: 5 to 4000A Selectable |
| Secondary: 0.5 to 5A AC Direct | |
| Accuracy | Class 0.5 |
| Power Supply | 230V AC, 50Hz |
| Protection Level (As per request) | IP-65(Front side) AS per IS/IEC 60529:2001 |
| Relative Humidity | 0°C To 55°C |
| Operating Temperature | Upto 95% RH Non Condensing |
