| Detection Distance | 15mm |
| Brand | Multispan |
| Model Number | CMS 5X |
| Application | Printing Machinery Packaging Machinery Food & Beverage Pharmaceutical Applications |
| Switching Output | PNP/NPN |
- Multicolor sensing
- Ultrafast & Accurate Response
- Compact & Sleek Design
- NPN/PNP Output Selectable
- Operating Distance: 10-15mm
- Size : (H)44mm x (W)60mm x (D)27mm
- Power Supply : 12-24V DC
| Power Supply | 12 – 24V DC |
| Current Consumption | 35 mA max.@ 24 V DC |
| Output | NPN/PNP Output |
| Output Current | 25 mA max |
| Response Time | 2 Millisecond |

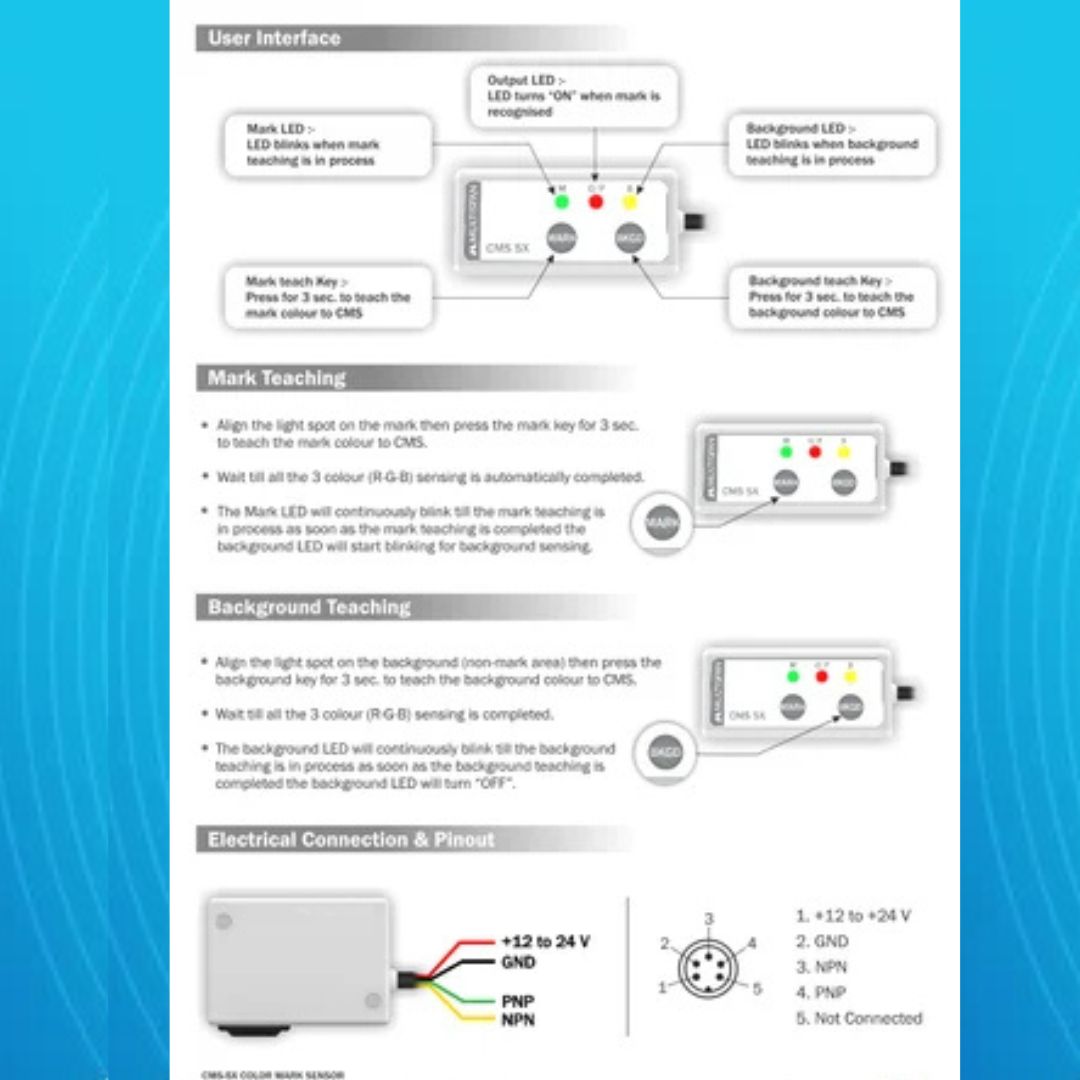

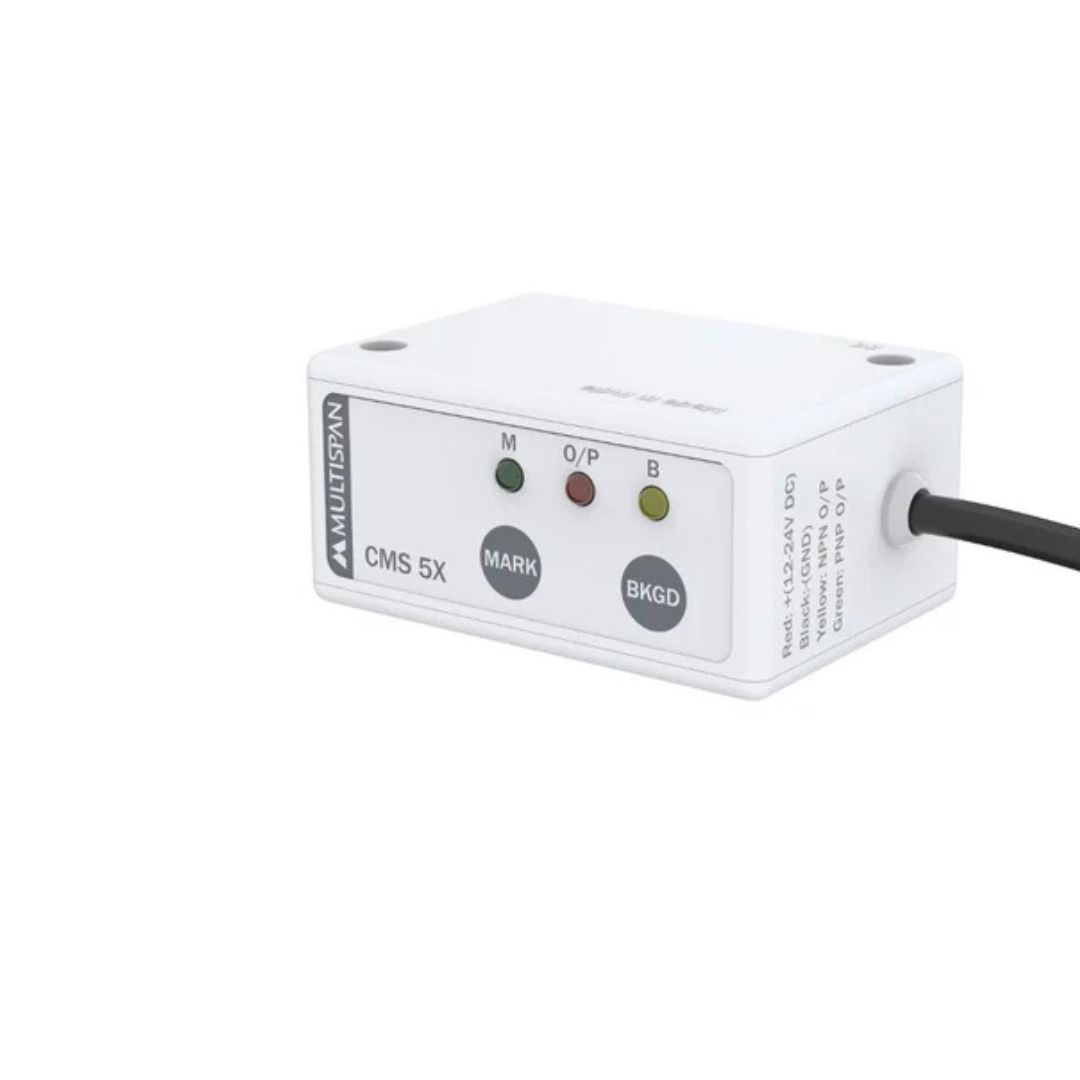

| Indications | LED 1 : Mark LED(Green) |
| LED 2 : Output LED(Red) | |
| LED 3 : Background LED (Yellow) | |
| Push Buttons | Button 1 : Mark Button |
| Button 2 : Background Button | |
| Min. Mark Output Delay | 20 ms |
| Operating Temp. | -10 to 50 C |
| Storage Temp. | -20 to 70 C |
| Operating Distance | 10 to 15 mm |
| Minimum Spot Diameter | 5 mm |
| Emission type | RED (630 nm) |
| GREEN (520 nm) | |
| BLUE (465 nm) | |
| Ambient Light Rejection | Yes |
| Vibration | 0.5 mm amplitude, |
| 10 to 55 Hz Frequency | |
| Housing Material | ABS |
| Lens Material | Glass |
| Connection | Shielded 4 Wire Cable |
Application
- Printing Machinery
- Packaging Machinery
- Food & Beverage
- Pharmaceutical Applications
