| Controller Type | On/Off |
| Features | Alarm and Alerts |
| Brand | Multispan |
| Display Type | 3 Digit 0.62″ 7 Segment RED / WHITE Display |

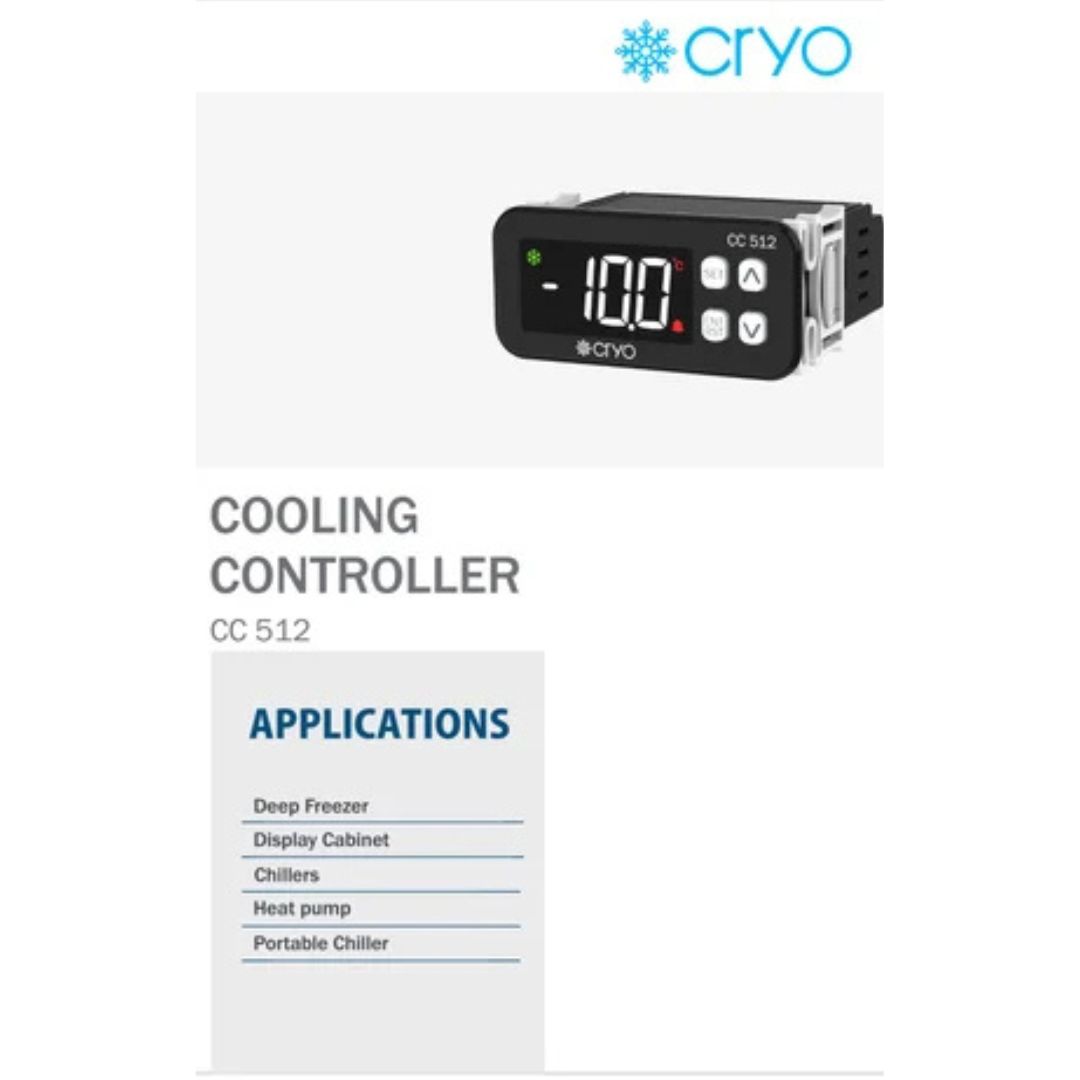

| Usage/Application | Deep Freezer Display Cabinet Chillers Heat pump Portable Chiller |
| Dimensions | 37 (H) x 78 (W) x 70 (D) mm |
| Color | White |
| Material | Polycarbonate |
| Country of Origin | Made in India |

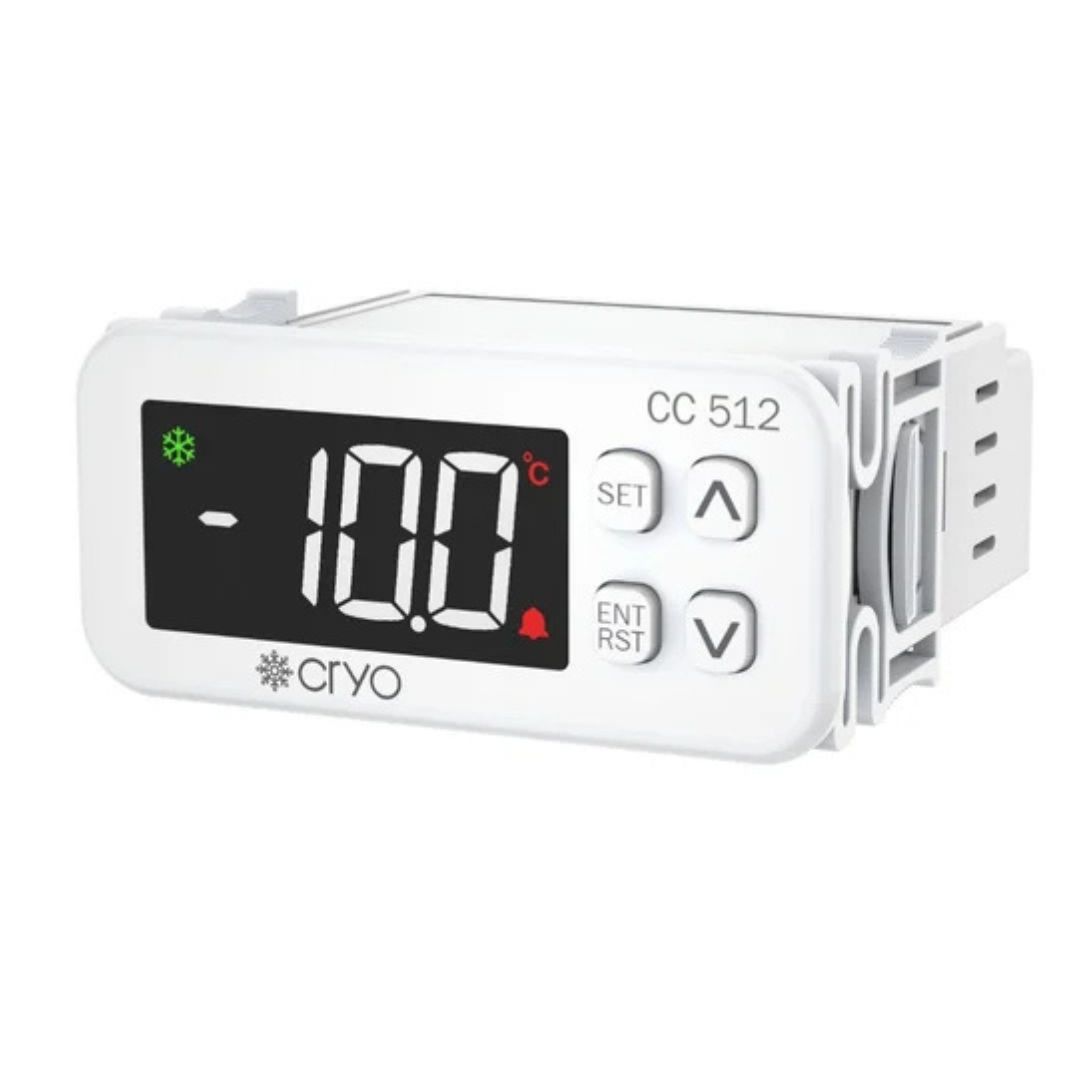

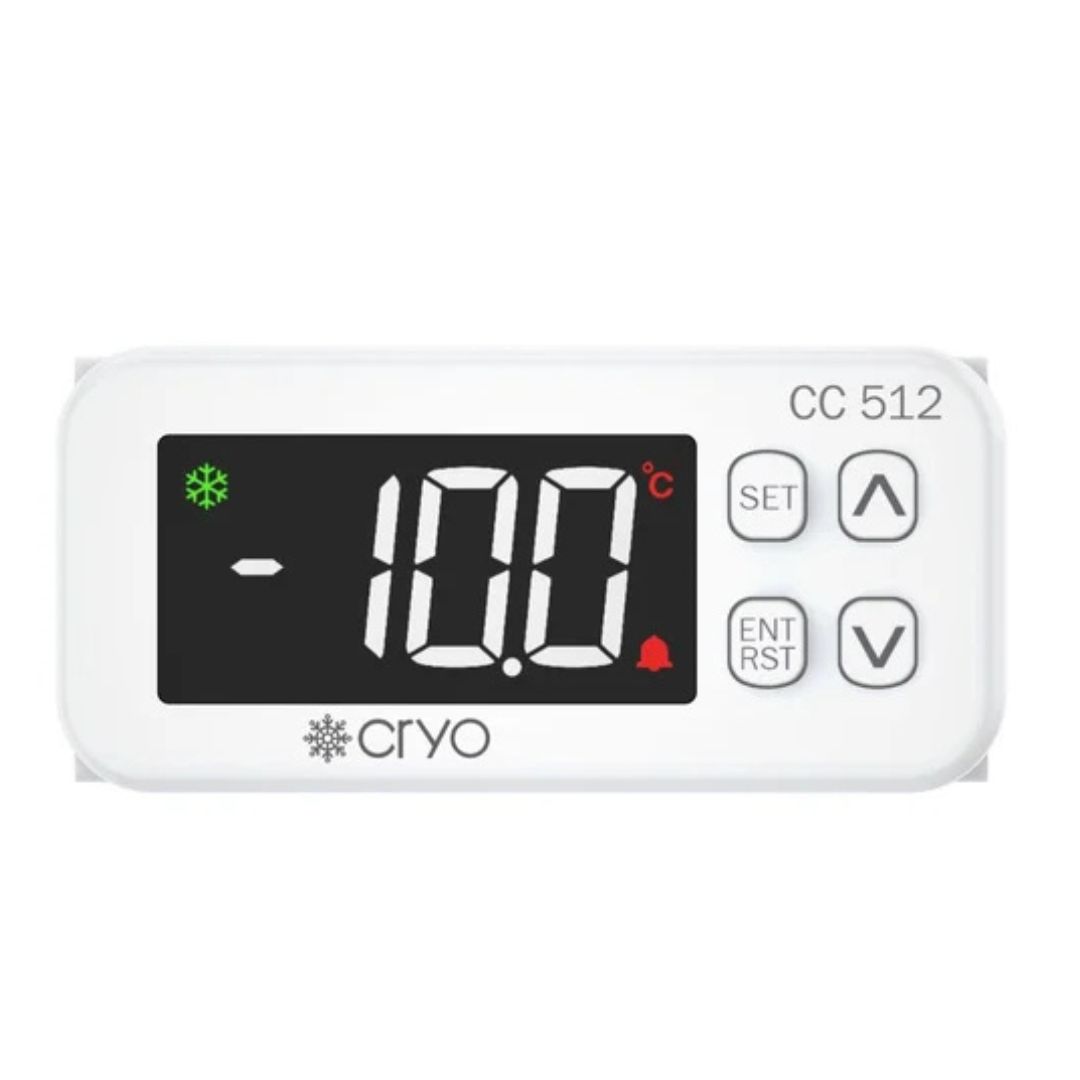

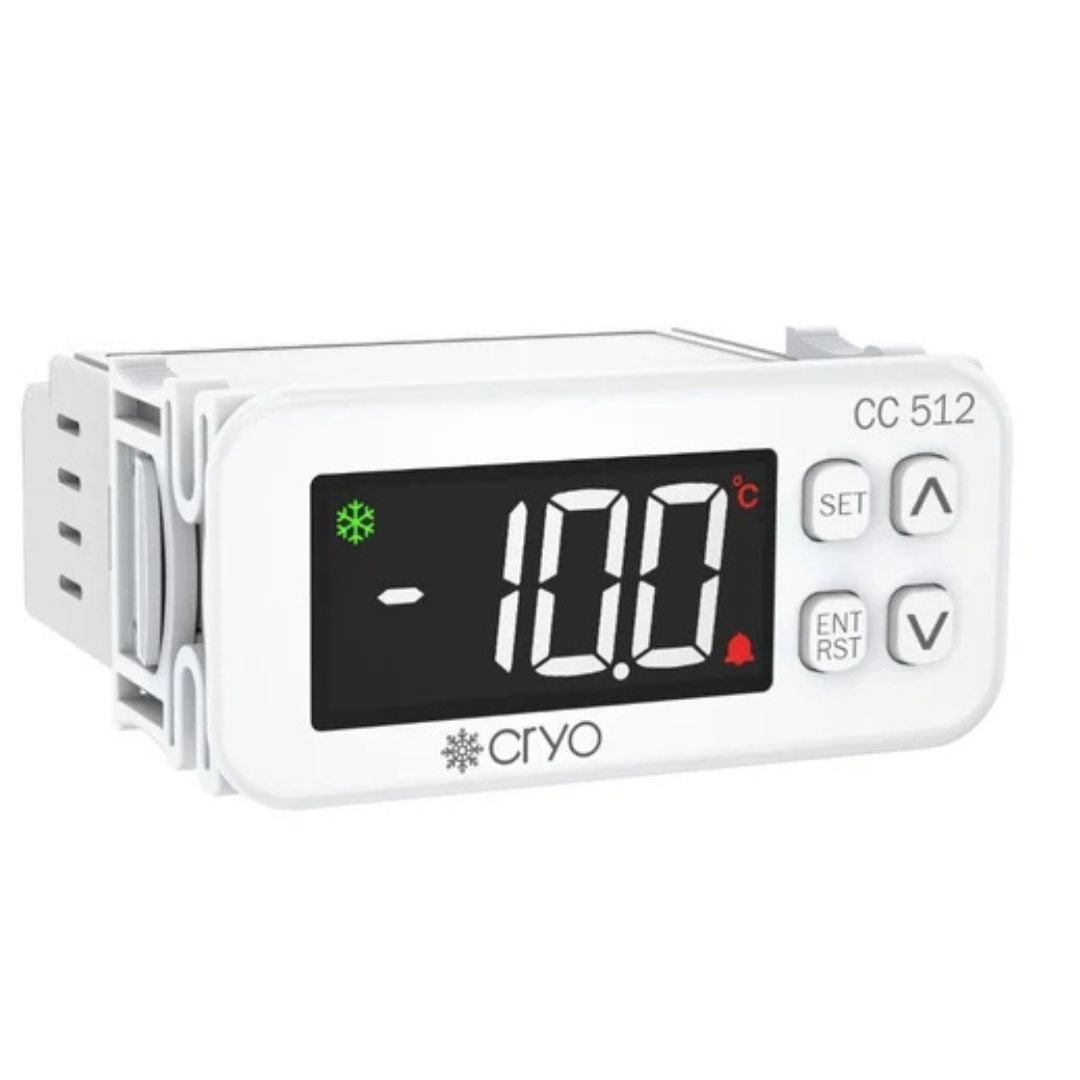

Product: Multispan CC-512
- Single NTC input
- 10A Relay Output for Compressor or heater load
- 10A Alarm output or 12V DC Buzzer Output for High/Low Alarm function
- 3 Digit White/Red Display With 0.1 Resolution

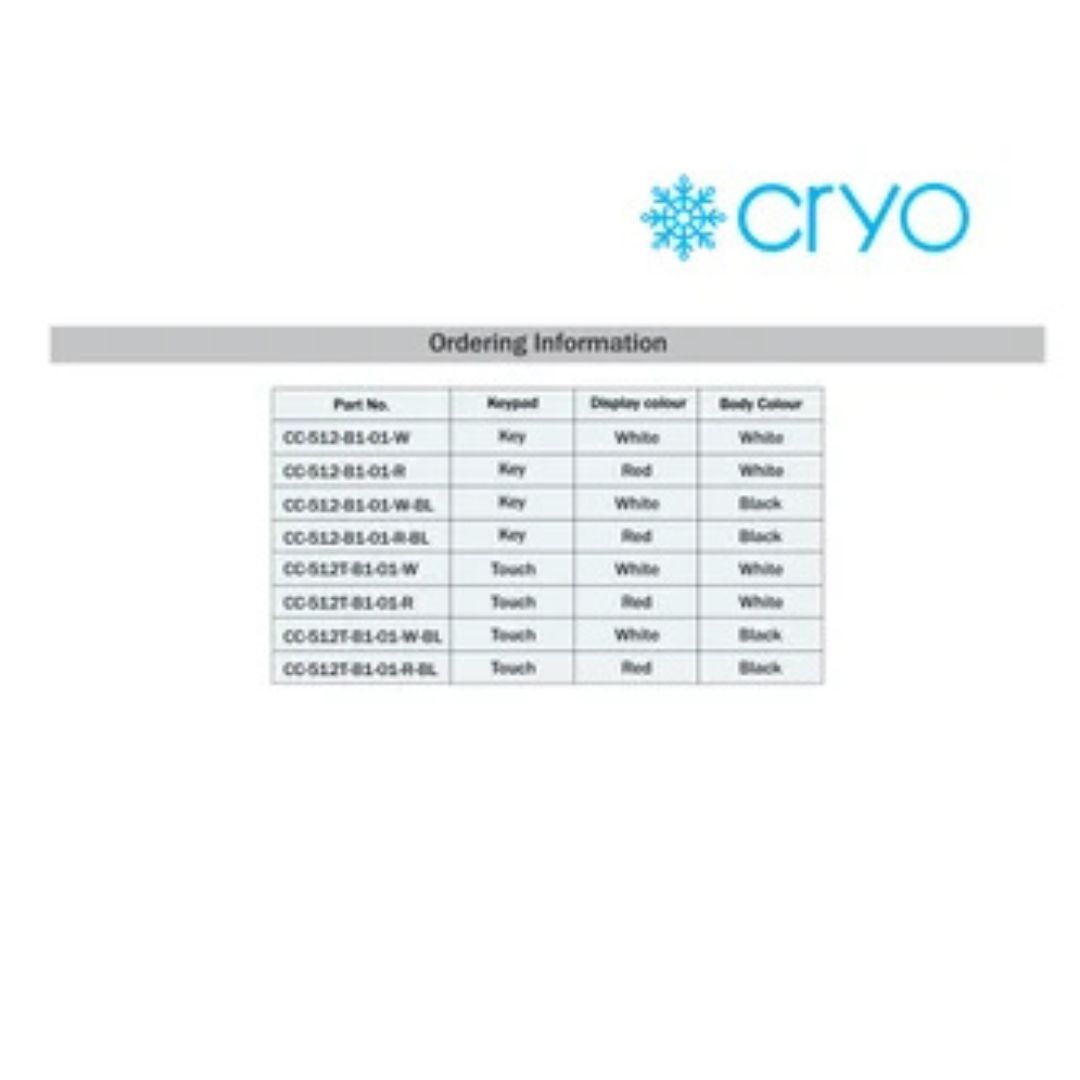

- Available in touch/keypad module With Black & White color plastic Enclosure
- Supply : 230V AC/24VDC/12V DC
| Display | 3 Digit 0.62” 7 Segment RED / WHITE Display |

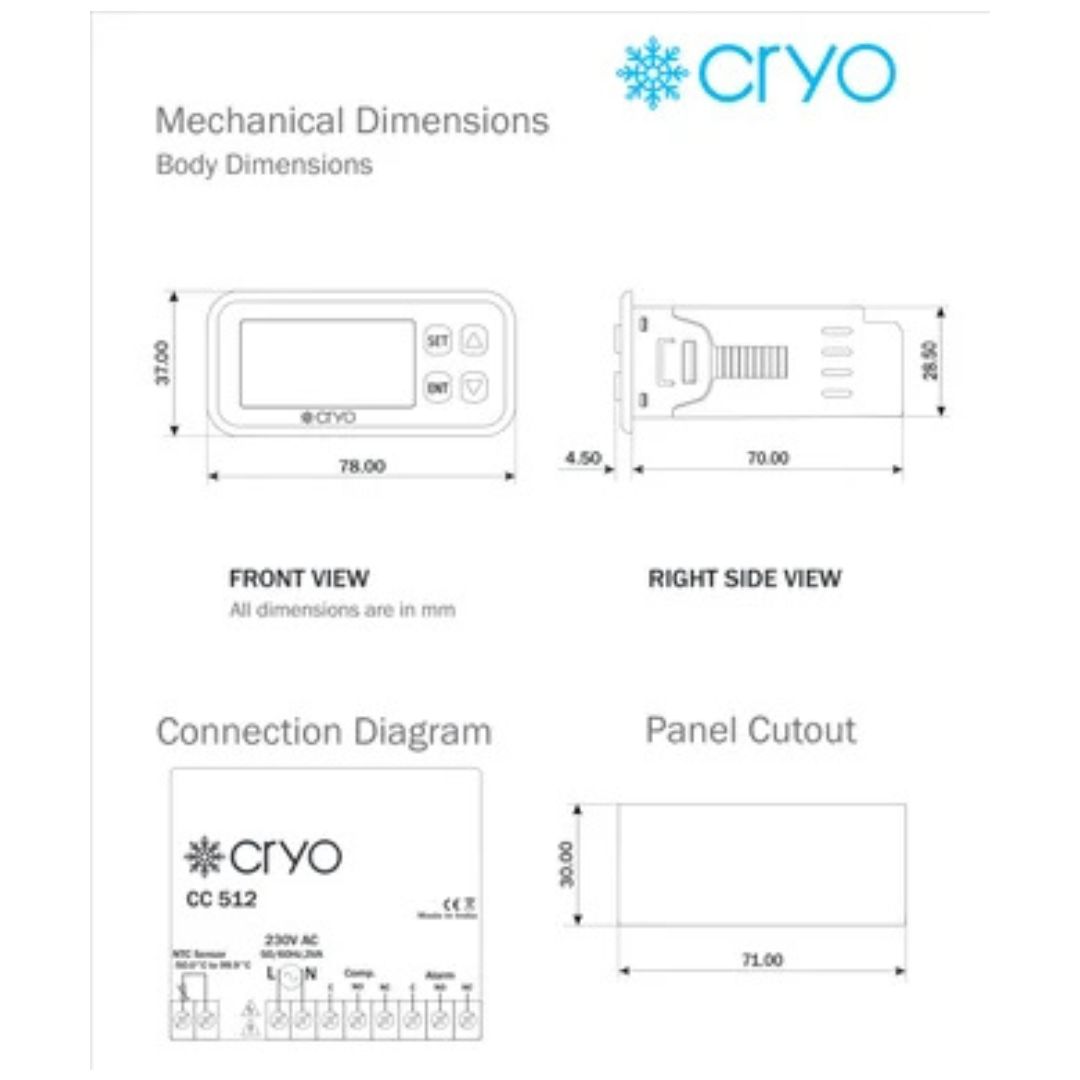

| Size (mm) | 37 (H) x 78 (W) x 70 (D) mm |
| Panel Cutout | 30(H) X 71(W) mm |
| Input | NTC Thermistor |
| Output | 2 Relay, (NO-C-NC)
1st Relay For Compressor } 10A ( Resistive load ) 2nd Relay for Alarm contact } 10A ( Resistive load ) |
| Range | -50.0°C To 99.9°C |
| Power Supply | 230V AC,50/60Hz,Approx 3VA |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
