| Brand | Multispan |
| Voltage | 100-270V AC |
| Current | 200mA to 5Amp AC |
| Relay Type | Voltage Relay |
| Model Name/Number | CR-3K |
| Usage/Application | DG Set Panels Motor Control Center Panels Control Panels Distribution Panels Process Control |
| Country of Origin | Made in India |

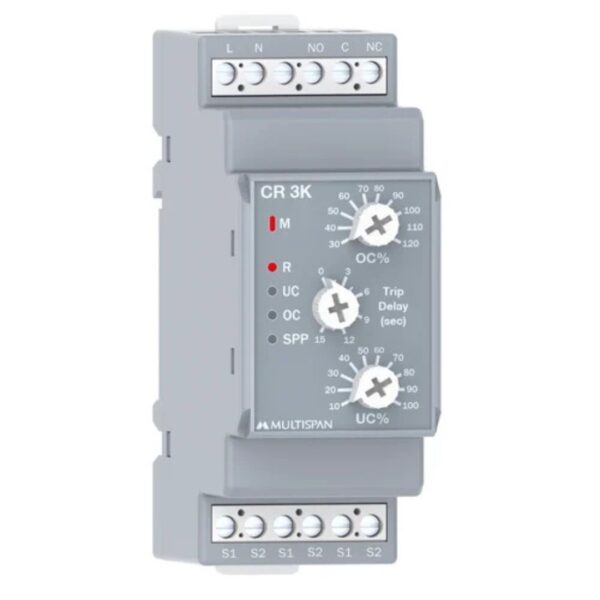

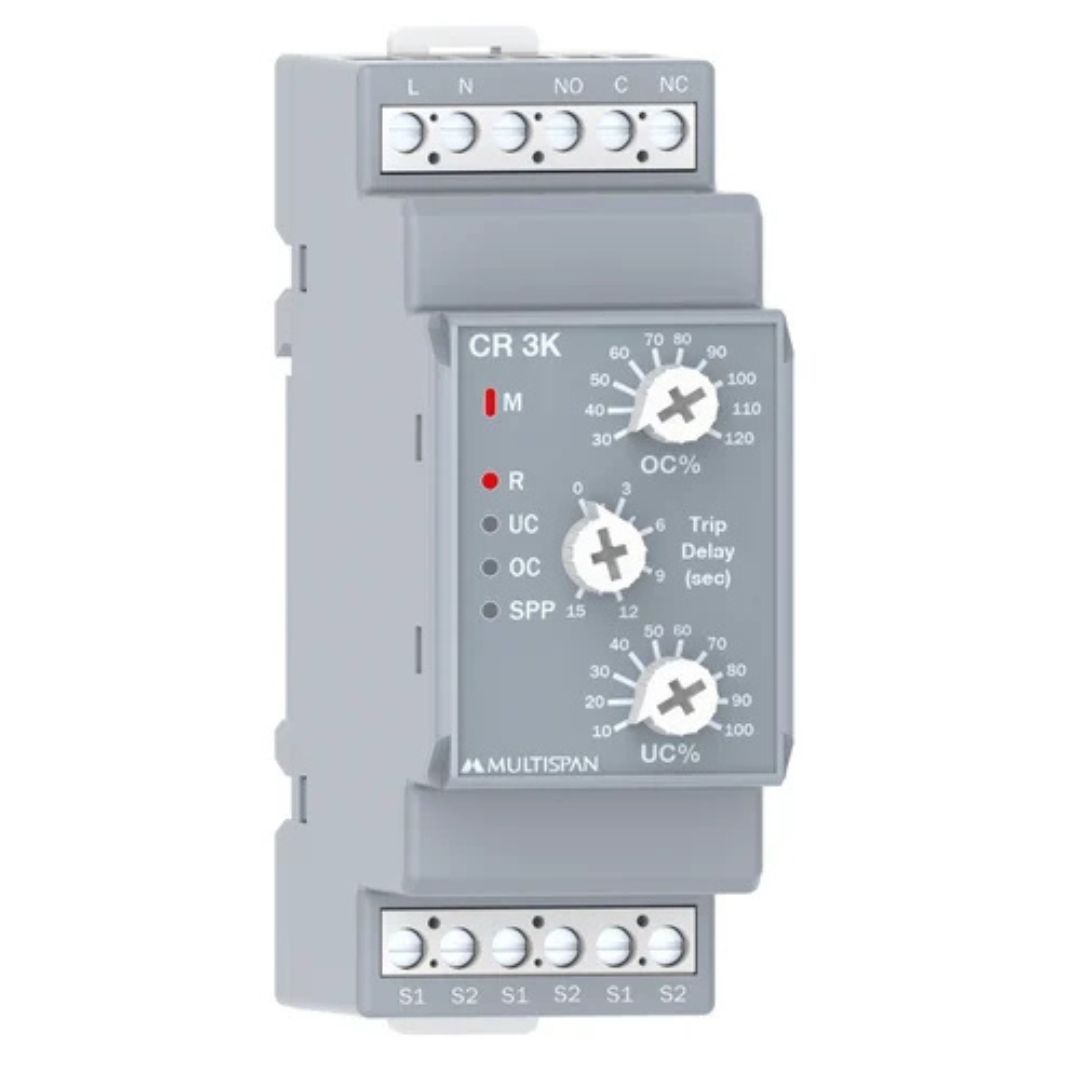

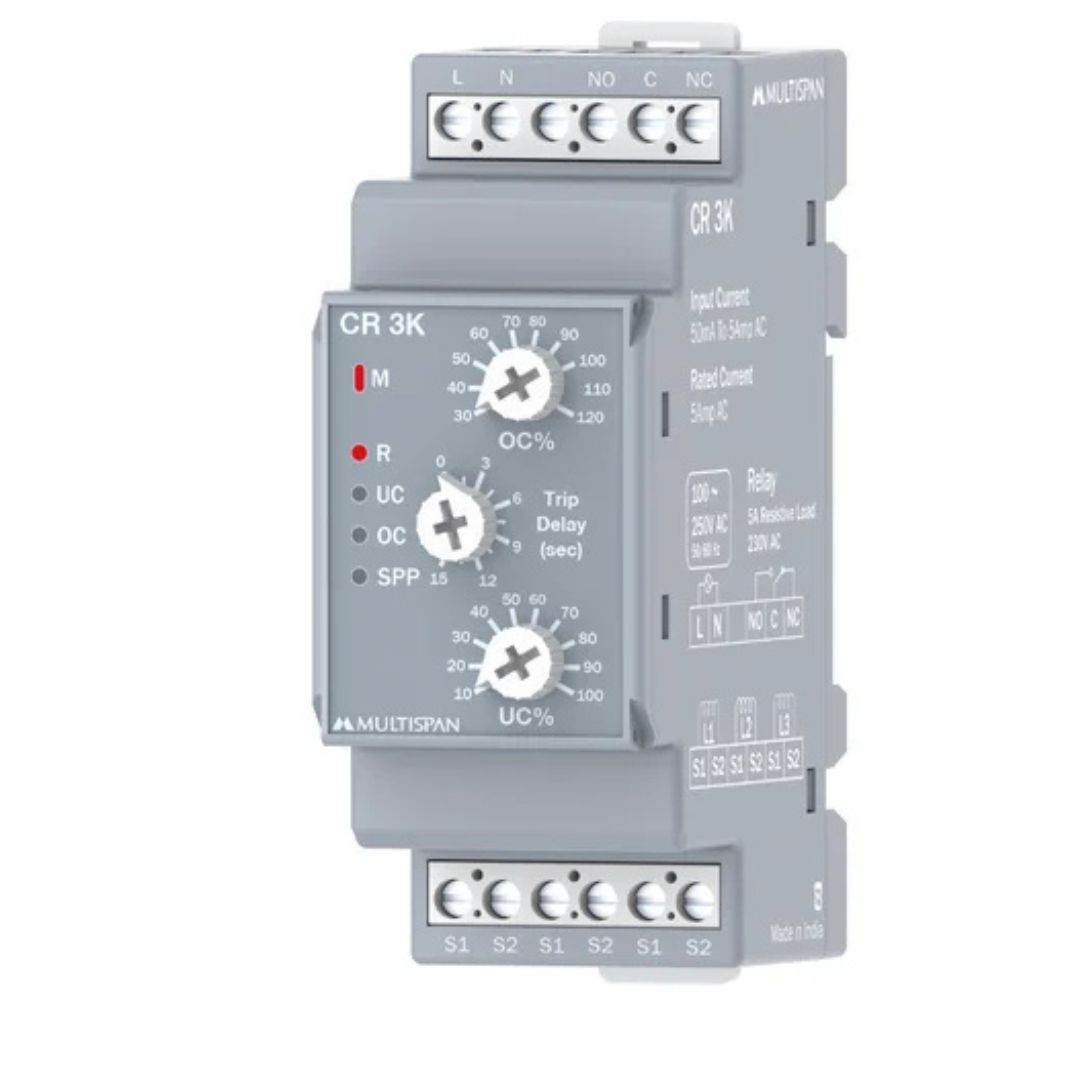

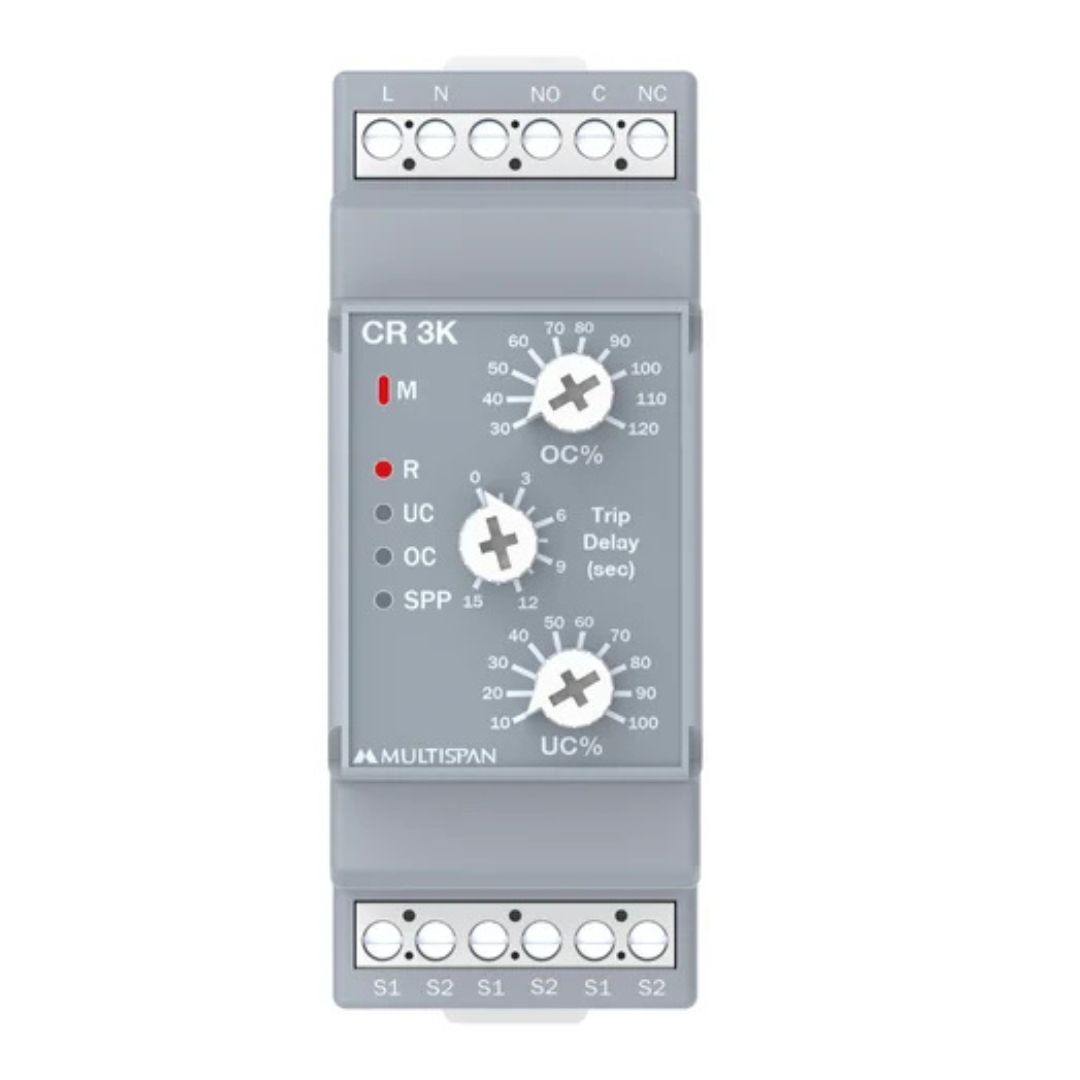

Product: CR-3K
- Programmable Over & Under Current
- 1-Relay, 1-C/O,5A,230V AC
- Digital Display 3+3 Digit in Din Rail Mount
- Size: (H)90mm X (W)35mm X (D)62.5mm
- Supply Voltage: 100-270V AC
| Parameter | Specification |
|---|---|
| Power Supply | 100-270V AC |
| Input Current | 200mA to 5Amp AC |
| Rated Current | 5A |
| Output | 1-Relay, 1-C/O, 5A, 230V AC Resistive load |
| Tripping Parameters | – Under Current |
| – Over Current | |
| – SPP (Single Phase Perversion) | |
| RESET MODE | ZVR (Zero Value Reset) |
