| Type | Digital |
| Size | 96 (H) X 96 (W) X 54 (D) (mm) |
| Input | through DC Shunt 75mV DC |
| Range | 2A DC, 5A DC, 10A DC, 20A DC (Factory Set) |
| Power Supply | 100-270V AC/DC, 50/60 Hz, Approx 4VA |

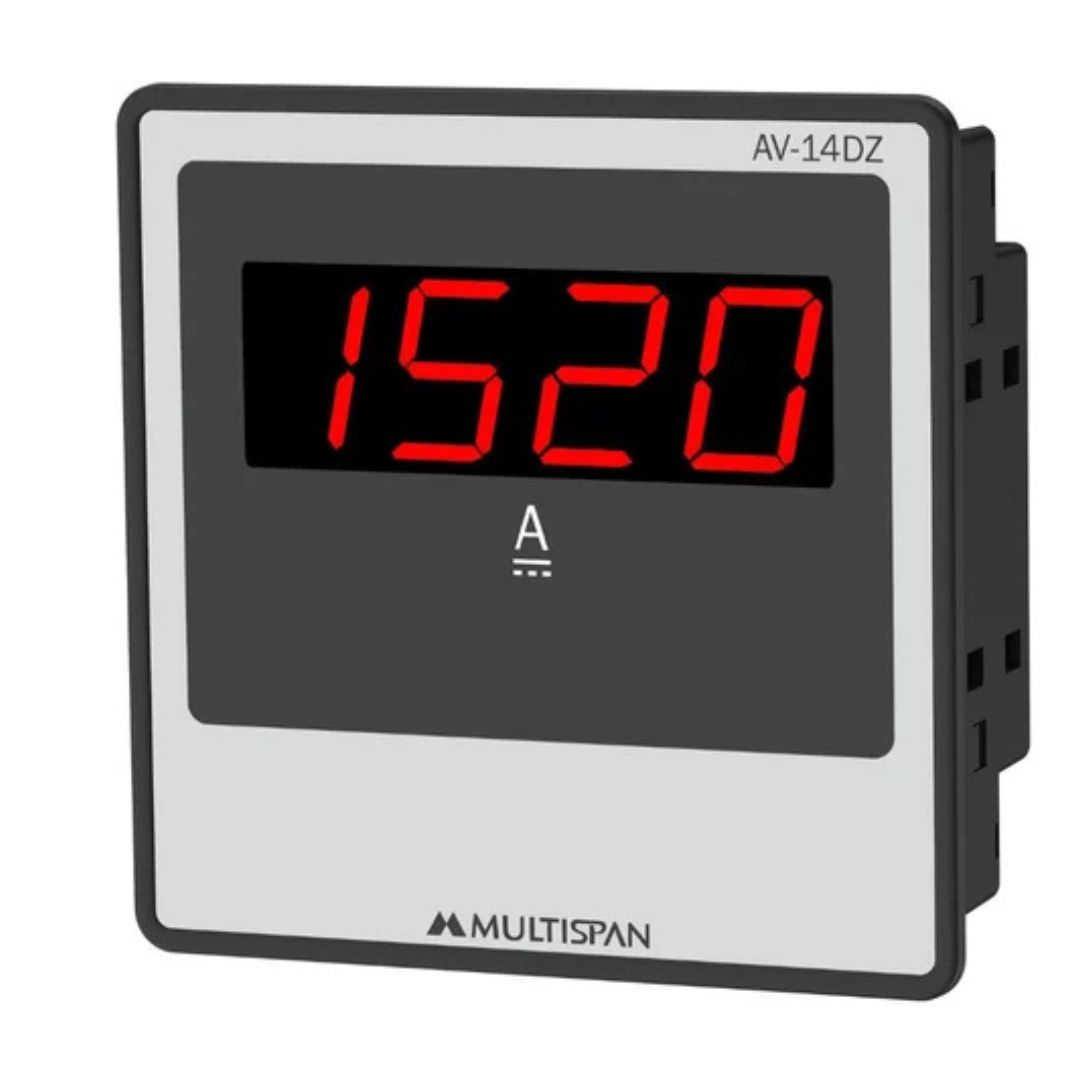

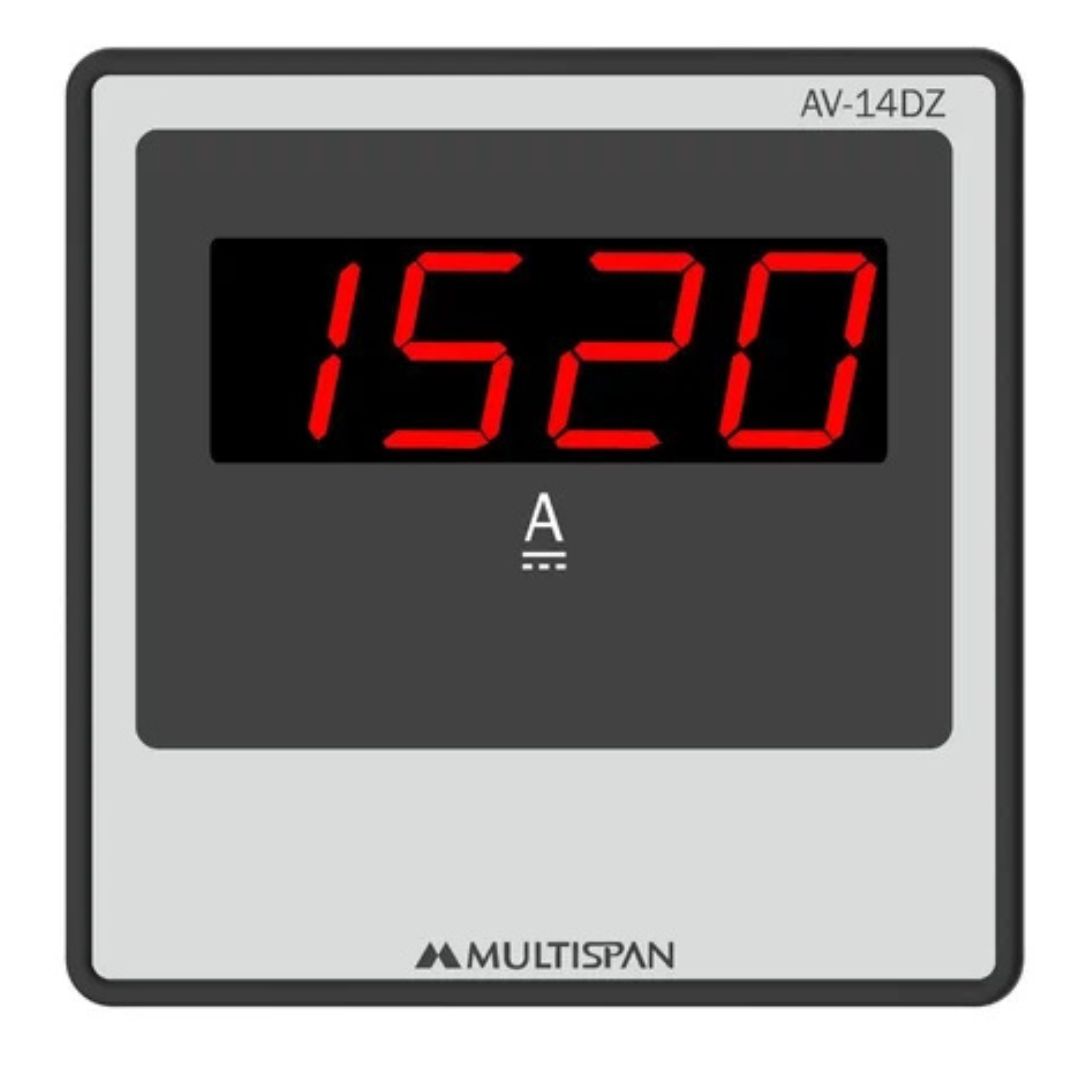

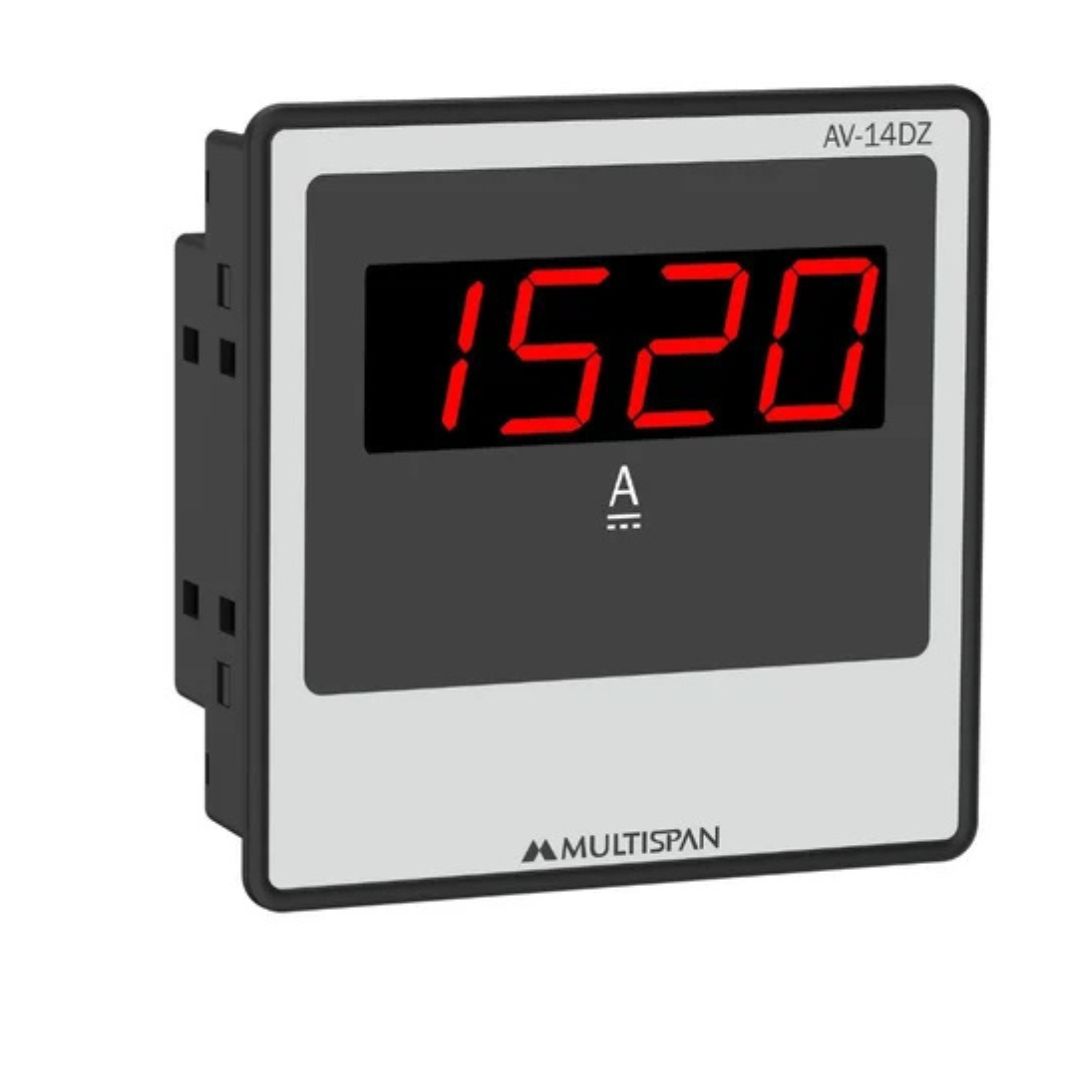

Product: MULTISPAN AV-14DZ
- Input through DC Shunt 75mV DC
- Range: 2A DC, 5A DC, 10A DC, 20A DC (Factory Set)
- Size: (H)96mm X (W)96mm X(D)54mm
- Supply Voltage:100-270V AC/DC, 50/60 Hz
| Model | AV 14DZ | ||
| Display | 4-Digit, 7-Seg 0.56”,Red LED Display | ||
| Size (mm) | 96 (H) X 96 (W) X 54 (D) | ||
| Panel Cutout (mm) | 92 (H) X 92 (W) | ||
| Range | 20.0A DC | ||
| Power Supply | 100-270V AC/DC, 50/60 Hz, Approx 4VA | ||
| Protection Level (As per request) | IP-65(Front side) AS per IS/IEC 60529:2001 | ||
| Operating Temperature | 0°C To 55°C | ||
| Relative Humidity | Upto 95% RH Non Condensing | ||
