| Body Material | ABS Plastic |
| Display Type | Digital |
| Brand | Multispan |

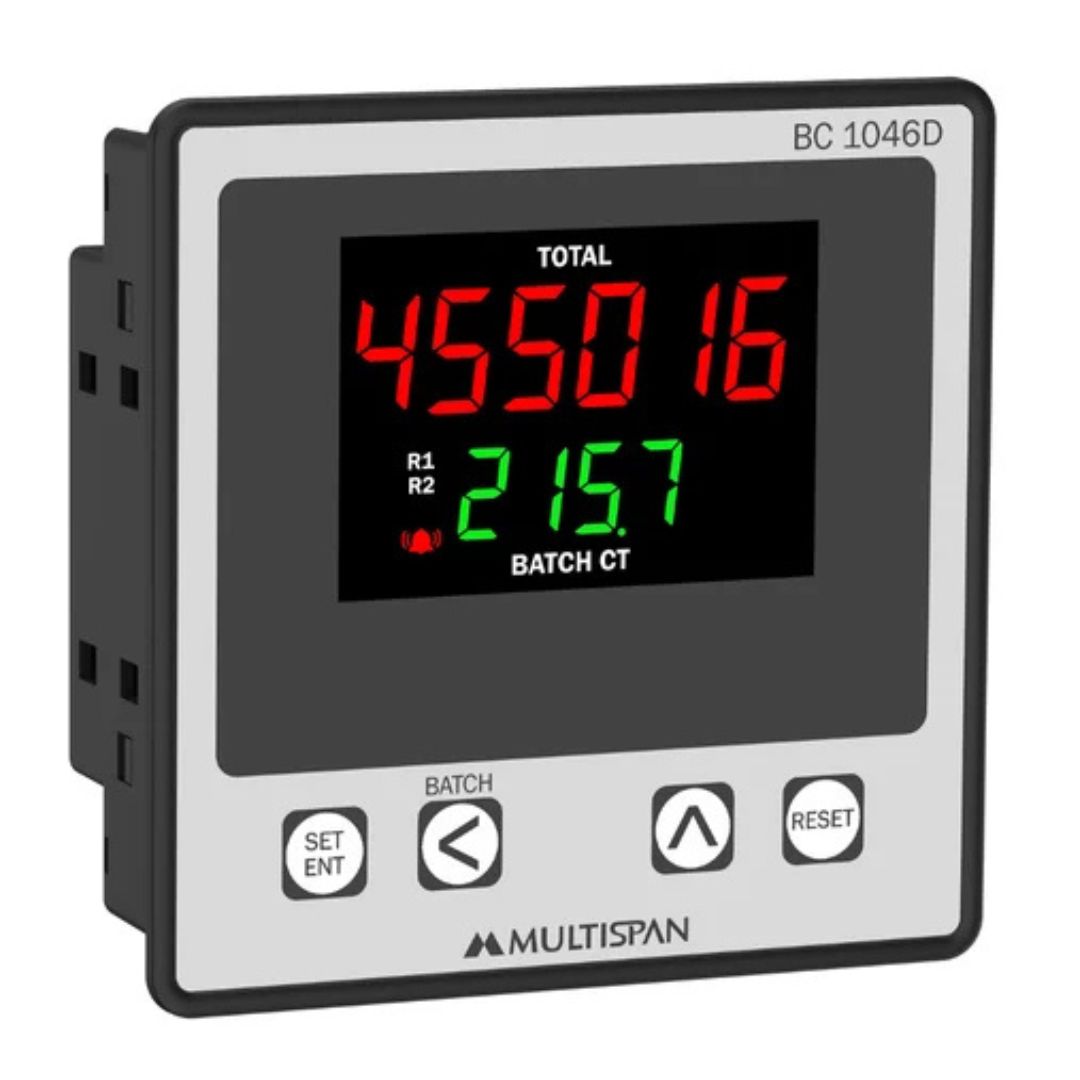

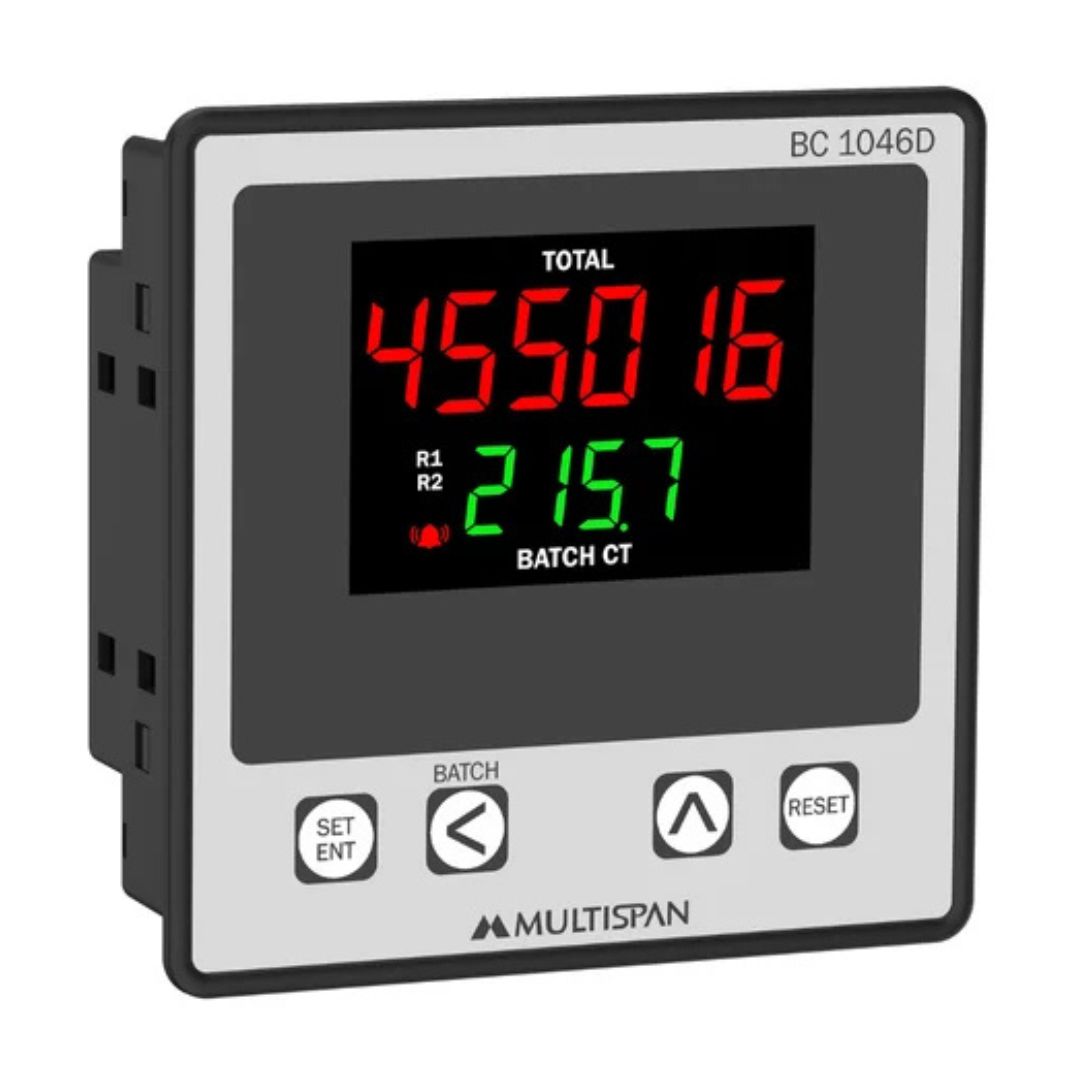

| Model Name/Number | BC1046D |
| Frequency | 50 Hz |
| Range | 0-999999 |
| Dimension | 96 x 96 x 42 mm |
| Voltage | 220 V |
| Weight | 160 Gram |
- Proximity or Micro Switch Input
- 1 Relay 1C/O + Buzzer Output
- 6-Digit Total Count, 4-Digit Batch Count
- Auto/Manual Reset
- Size: (H)96mm x (W)96mm x (W)43mm
- Supply Voltage: 230V AC
| Model | BC-1046D |
|---|---|
| Display | UPPER: 6-Digit, 7-Seg 0.56″, RED LED Display |
| LOWER: 4-Digit, 7-Seg 0.4″, GREEN LED Display | |
| Size (mm) | 96 (H) X 96 (W) X 43 (D) |
| Panel Cutout (mm) | 92 (H) X 92 (w) |
| Output | 1-Relay, 1-C/O, 230V AC, 5A & Buzzer |
| Power Supply | 230V AC, 50 Hz, Approx 4VA |
| Sensor | Proximity PNP/NPN (Selectable) & Micro Switch |
| Memory | Nonvolatile |
| Protection Level (As per request) | IP-65 (Front side) As per IS/IEC 60529:2001 |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non CondensinG |
