| Phase | Three Phase |
| Model Name/Number | Multispan EPM-310 |
| Voltage | 100 to 270V AC |
| Display Type | Digital |
| Usage/Application | Industrial |
| Dimension | 48 (H) x 96 (W) x 76 (D) |

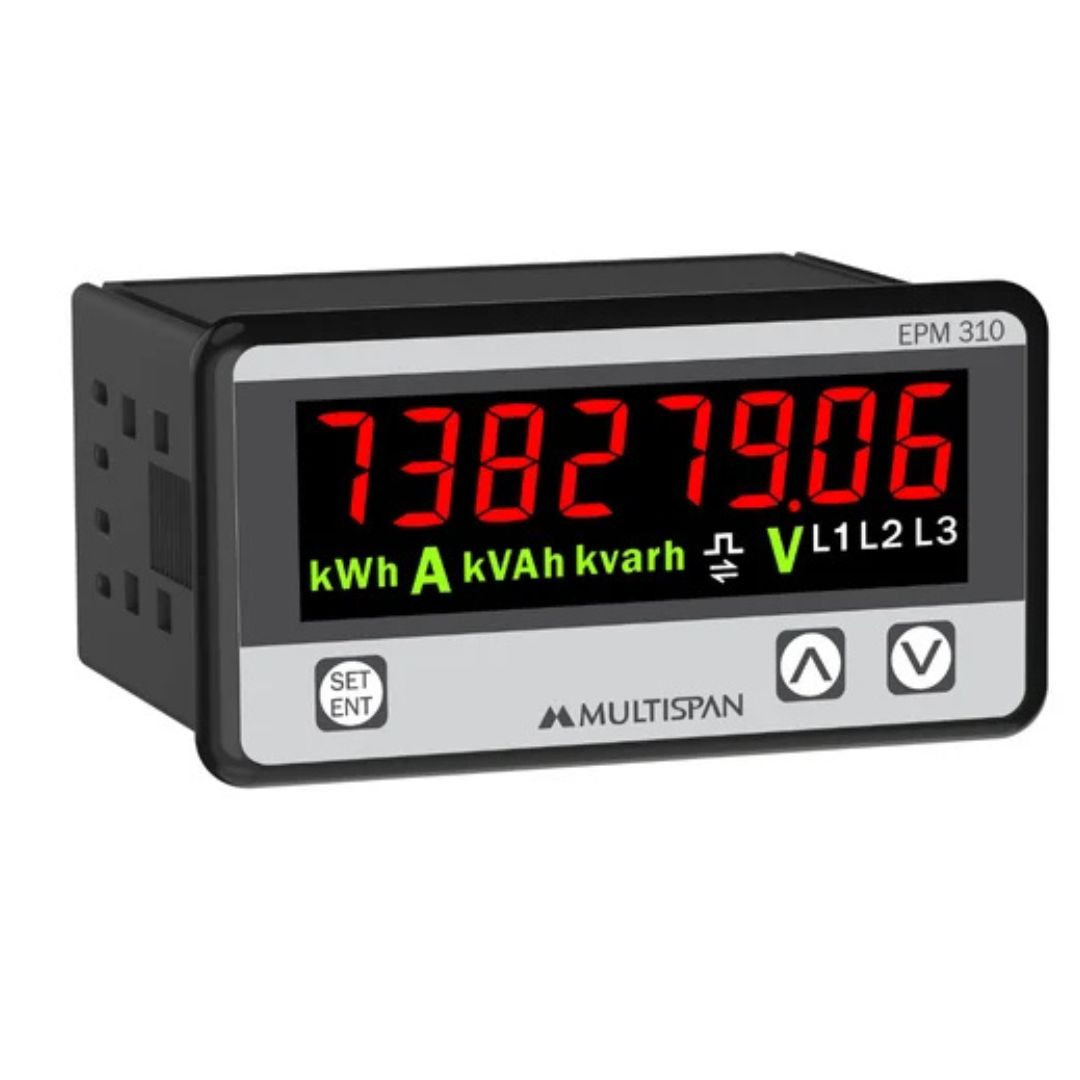

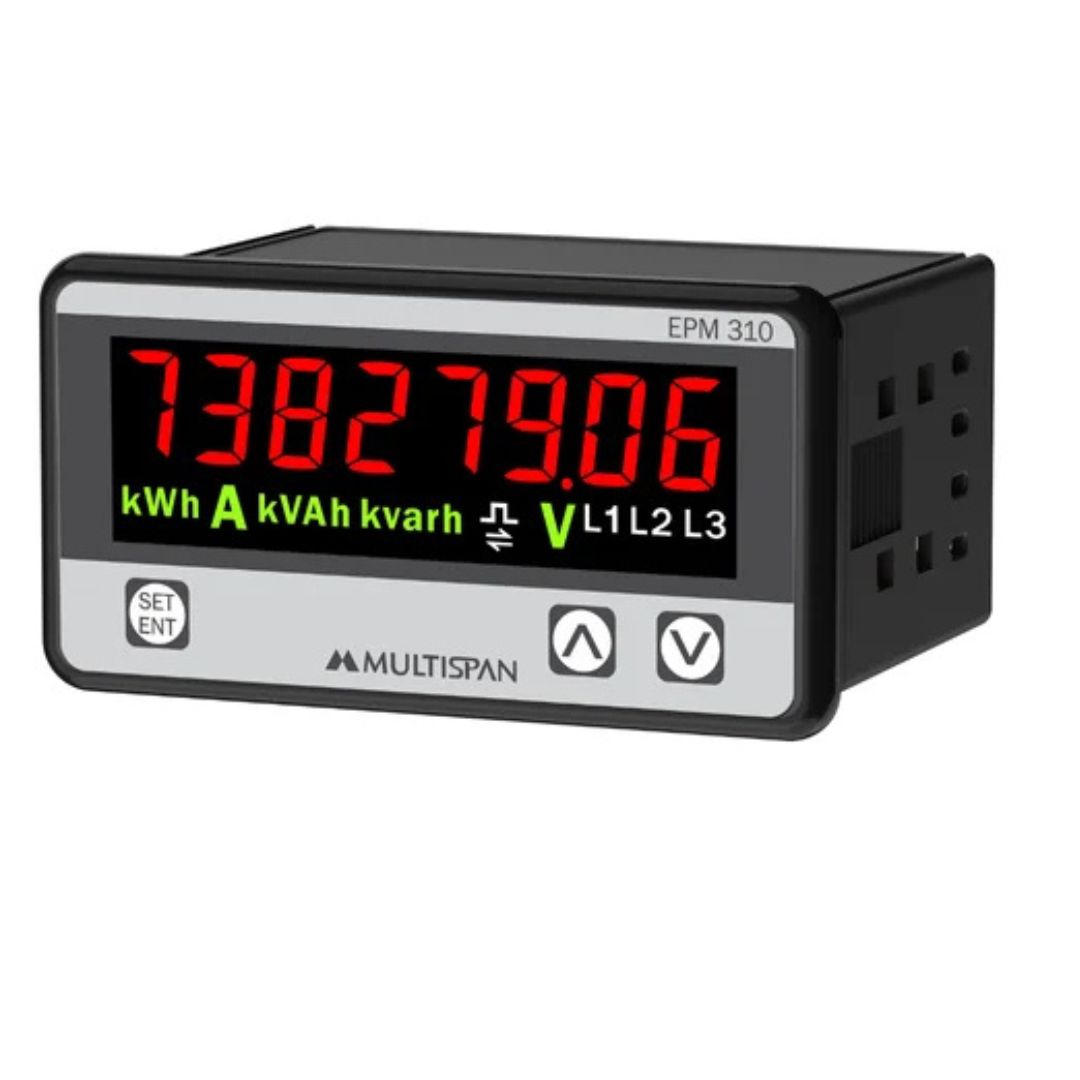

MULTISPAN EPM-310
- 3Ø-3W/4W
- 30 to 300V AC (L-N), 50 to 520V AC (L-L),
- Pulse & RS-485 Modbus Communication
- Size: (H)48mm X (W)96mm X(D)76mm
- Aux. Supply: 100-270V AC, 50/60 Hz

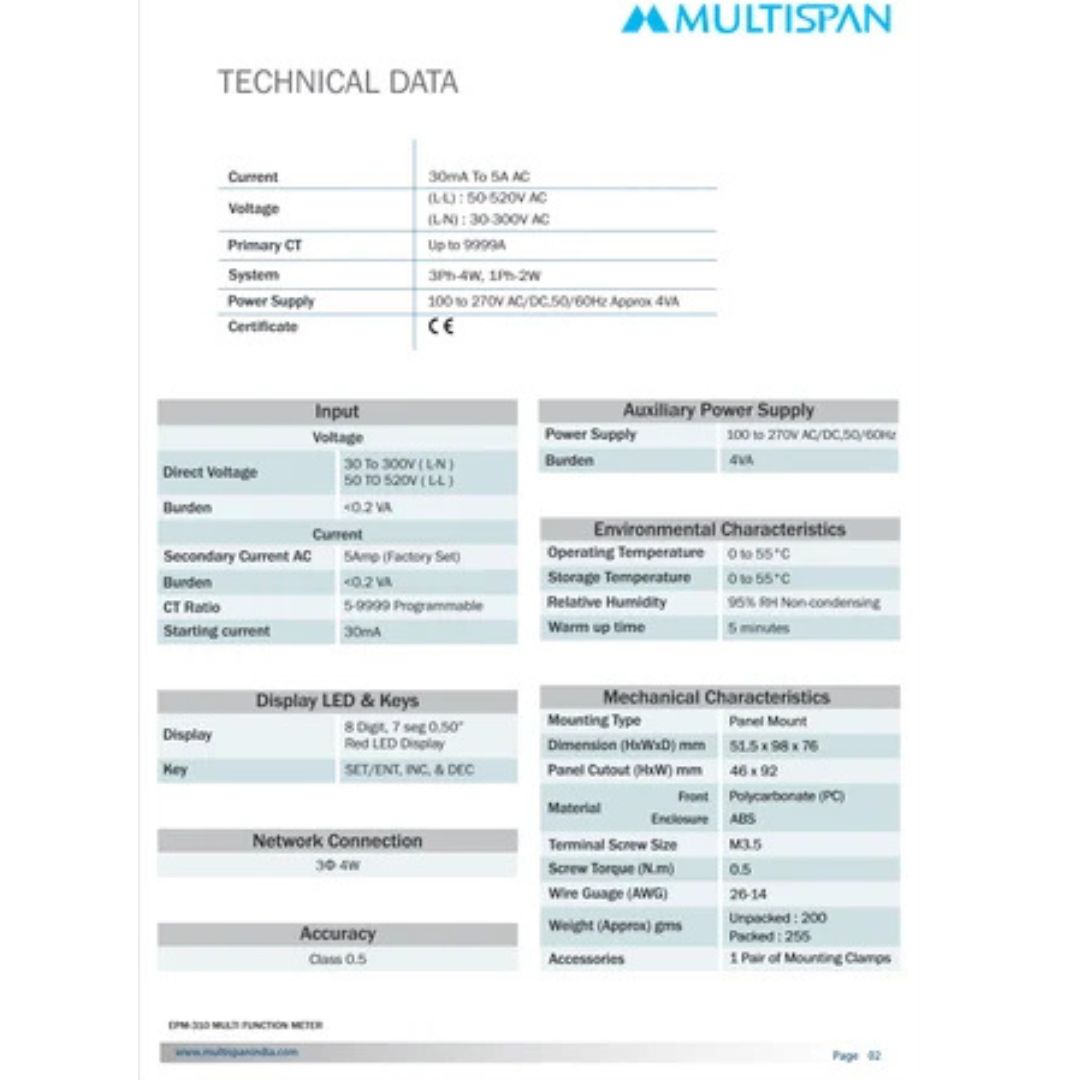

| PARAMETER SPECIFICATION | |
| Input Signal | 3Ø-4W/1Ø-2W Selectable |
| CT Primary | Upto 9999A (Programmable) |
| PF Avg. & Per Phase | 0.100 – 1.000 |
| Frequency (Hz) | 45.00 – 60.00 Hz |
| Load hours | 9999.59 Hrs/Min. |
| No load hours | 9999.59 Hrs/Min. |
| RPM | 3600 RPM @ 60 Hz & 2 pole |
| POWER | |
| KW Total | 0.000 – 9999 kW |
| kW Per Phase | 0.000 – 9999 kW |
| kVA Total | 0.000 – 9999 kVA |
| kVA Per Phase | 0.000 – 9999 kVA |
| kVAr Total | 0.000 – 9999 kVAr |
| kVAr Per Phase | 0.000 – 9999 kVAr |
| Energy | |
| kWH Total | 000.000 – 99999999 kWh |
| kVAh Total | 000.000 – 99999999 kVAh |
| kVArh Total | 000.000 – 99999999 kVArh |
| INPUT | |
| Voltage AC | |
| Direct Voltage AC | 30 to 300V(L – N) |
| Current AC | |
| Primary CT Ratio | 5 to 9999 Amp selectable |
| Secondary Current AC | 0.03 to 5 Amp |
| DISPLAY & KEY | |

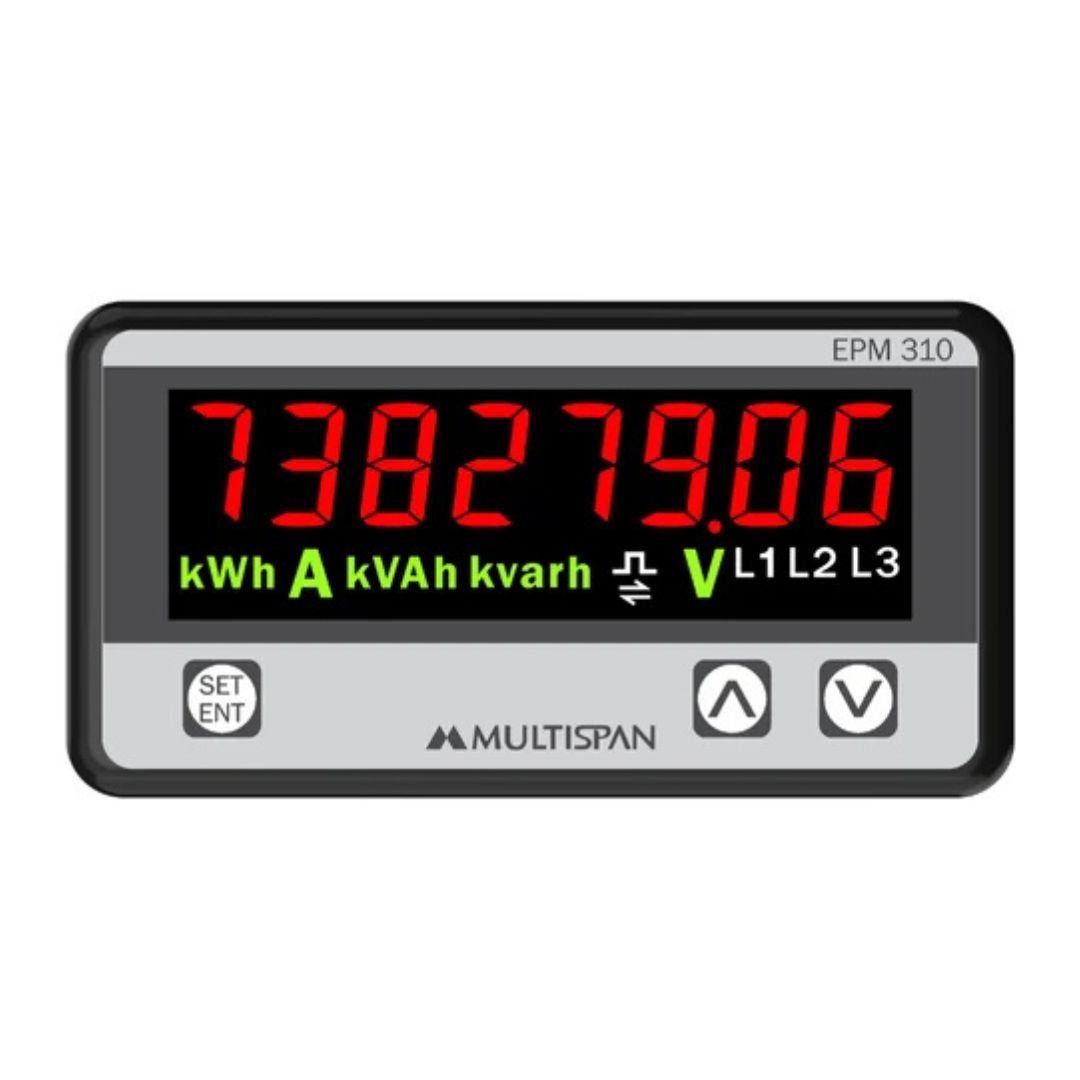

| Display | 8-Digit,7-Segment 0.5″ RED |
| Key | SET/ENT, INC, DEC |

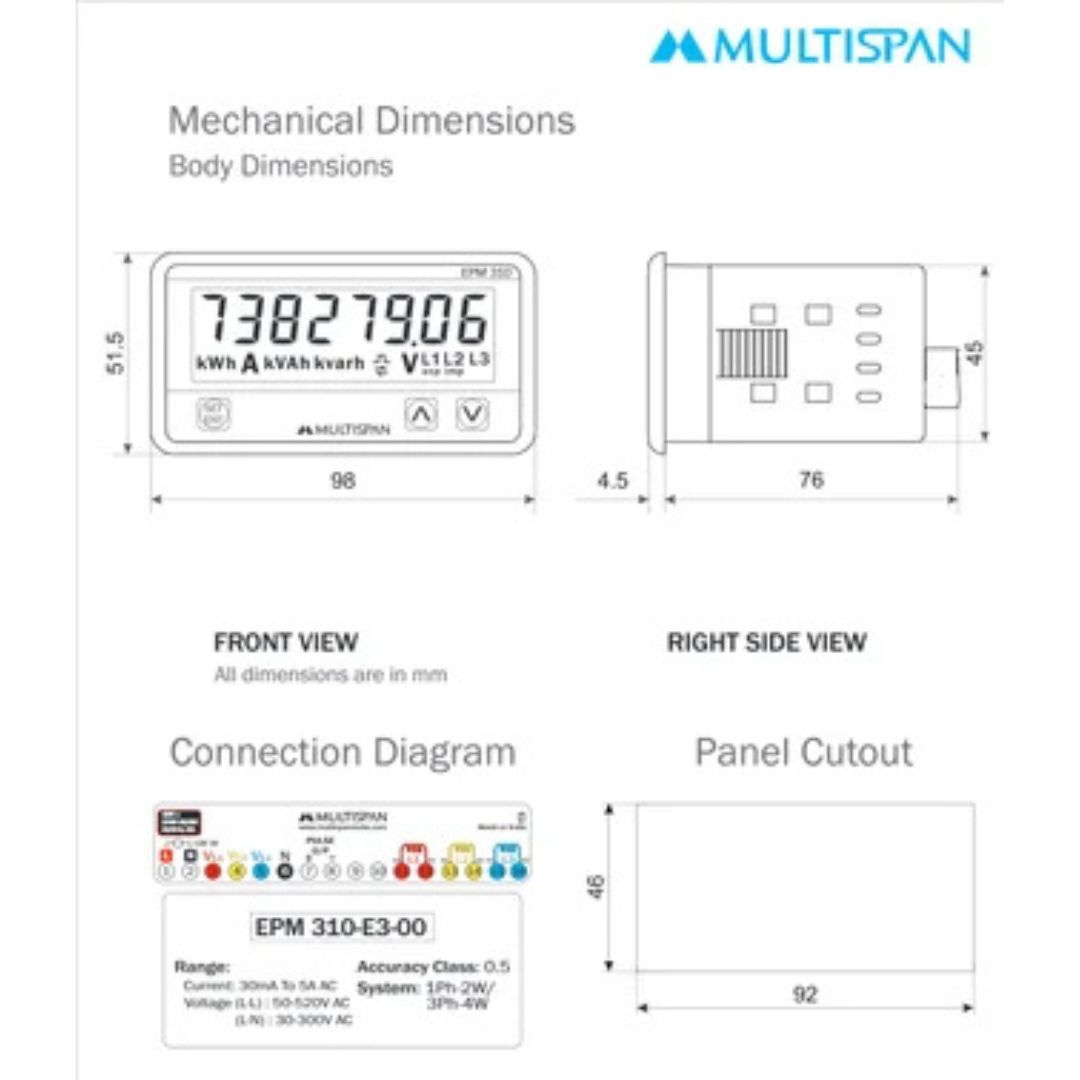

| DIMENSION | |
| Size (mm) | 48 (H) x 96 (W) x 76 (D) |
| Panel Cutout (mm) | 46 (H) x 92 (W) |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 270V AC, 50/60Hz |
| Power consumption (VA RATING) | Approx 4 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH |
| (non-condensing) | |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |

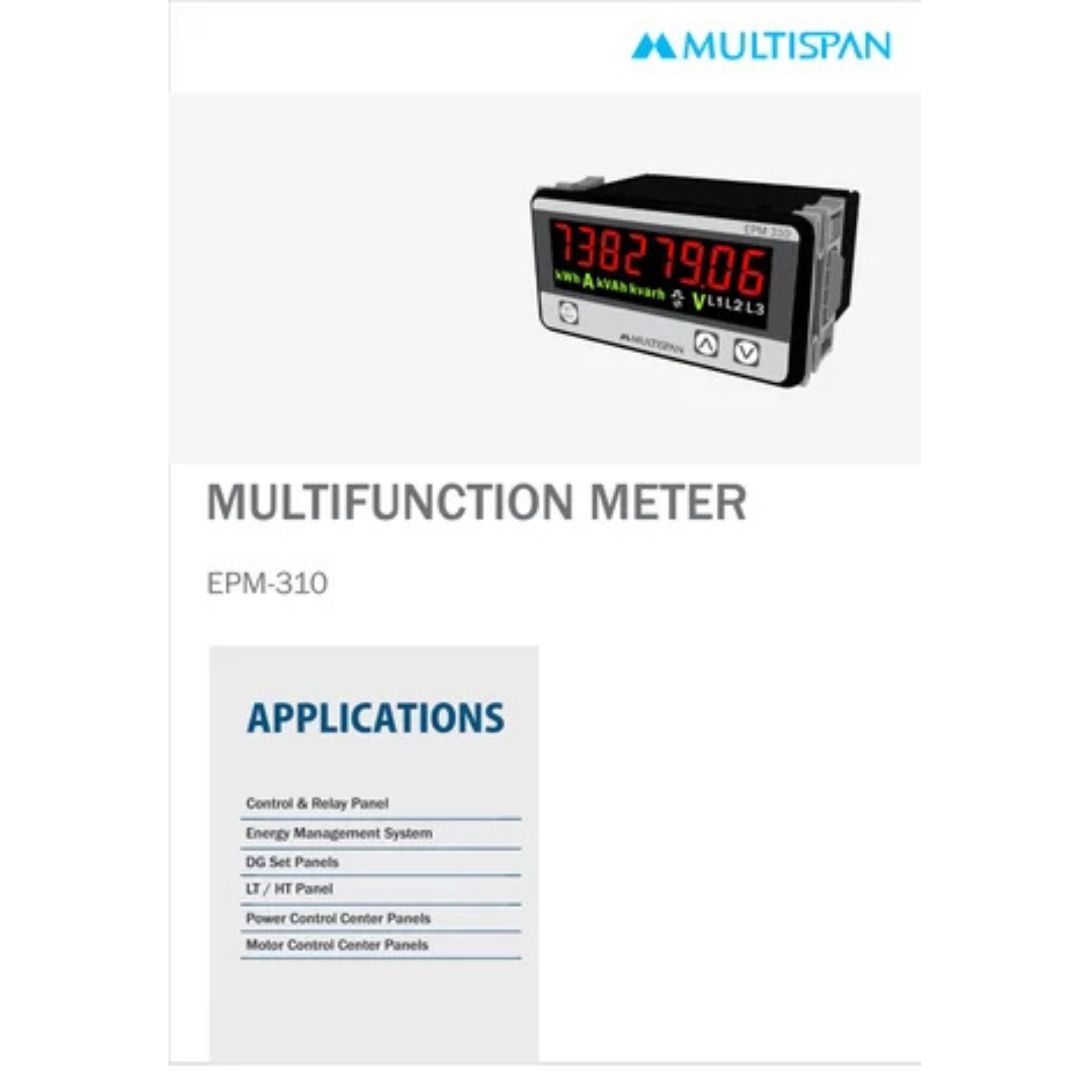

Application
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer training
