| Material | Aluminum |
| Type | Double acting |
| Shape | Standard with Eye Mounting |
| Max Pressure | 1 MPa |
| Operating Speed Range | 50 to 800 mm/s |
| Proof Pressure | 1.5 MPa |
| Port Size | M5x0.8, G1/8″, G1/4″ |
| Bore | 16 to 40MM |
| Operating Temperature Range | -20 DegreeC to 80 DegreeC |
| Working Medium | Air |
| Mountings | Basic LB FA FB SDB |

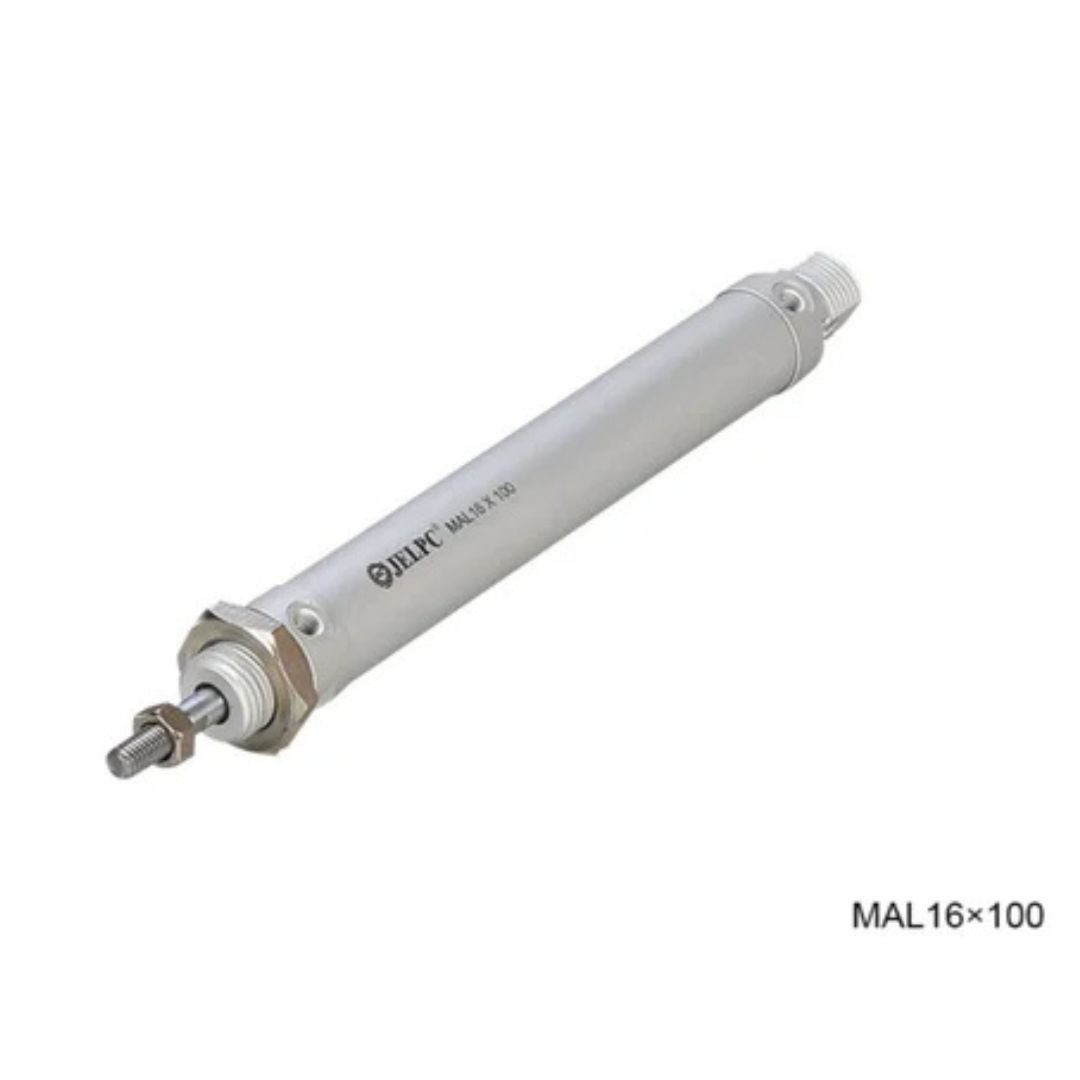

JELPC Double Acting Aluminum Mini Air Cylinder-MAL Series
Also Available in :
- Single Acting Spring In/ Out
- Double Shaft
- Double Shaft with Adjustable Stroke
Features:
1. Improving for adapting wide range applications,using precise polishing of piston rod,more sense of products quality and longer life of front seal.
2. Optima design and improve the production efficiency.
3. Combined with enterprise color planning and new structure design.
4. Using embedded gasket , increase the pressured area of pistons after collision.
