| Current Rating | 5A |
| Voltage | 100 To 270 V AC |
| Input Current | 5 Amp. AC From CBCT OR CT |
| Range | 10% to 100% |
| Country of Origin | Made in India |

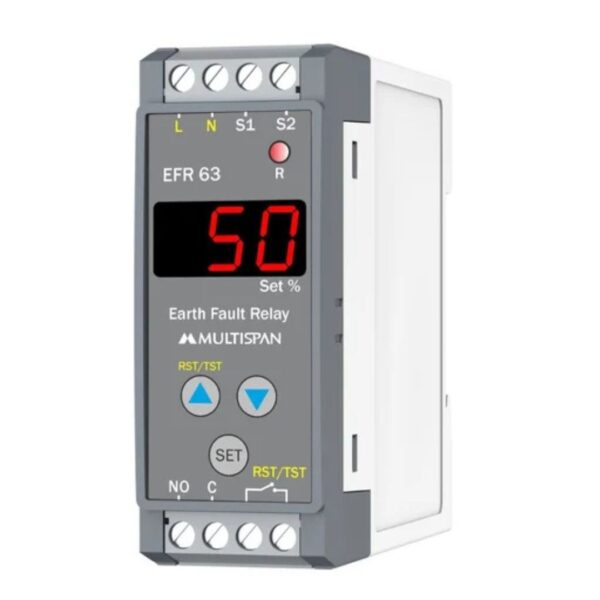

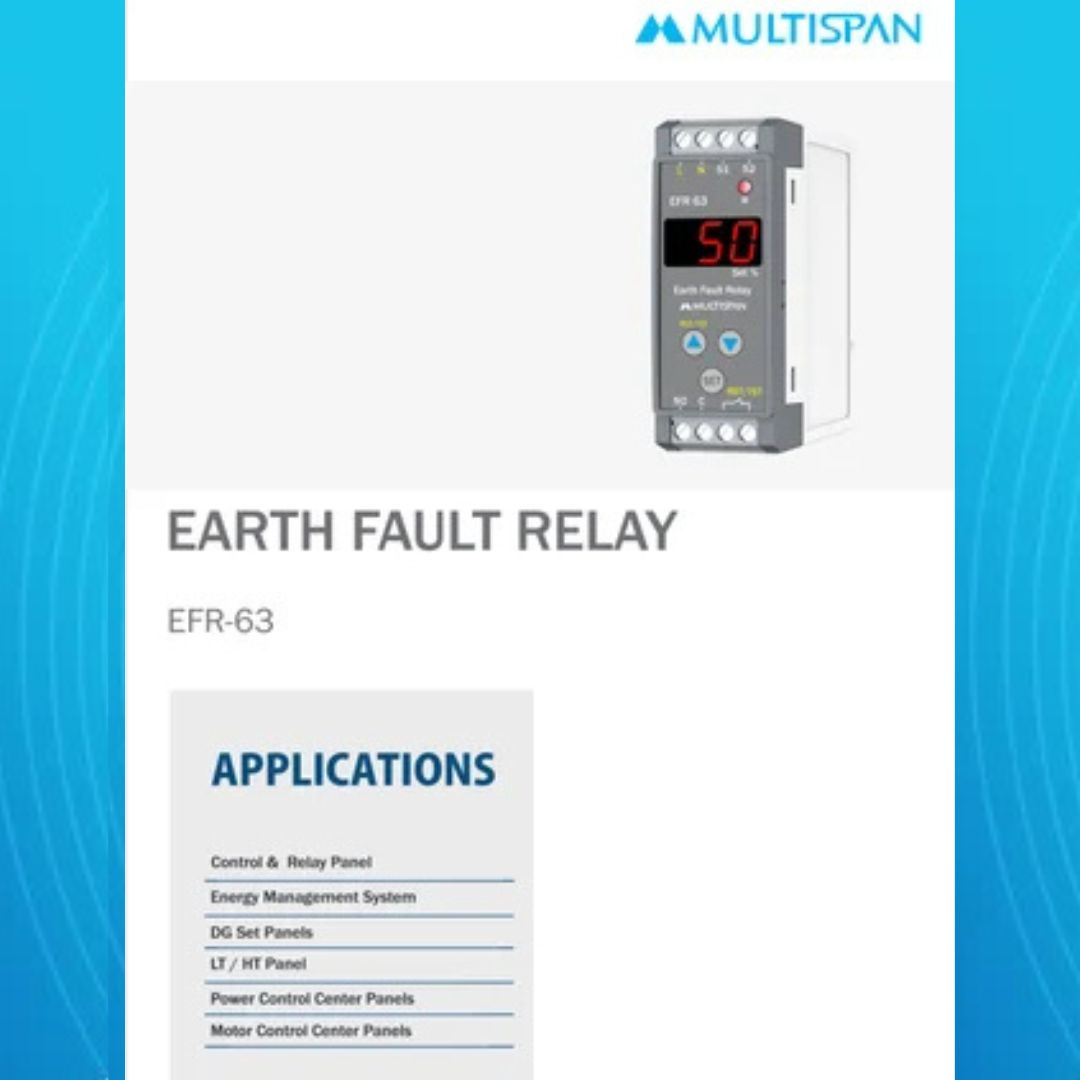

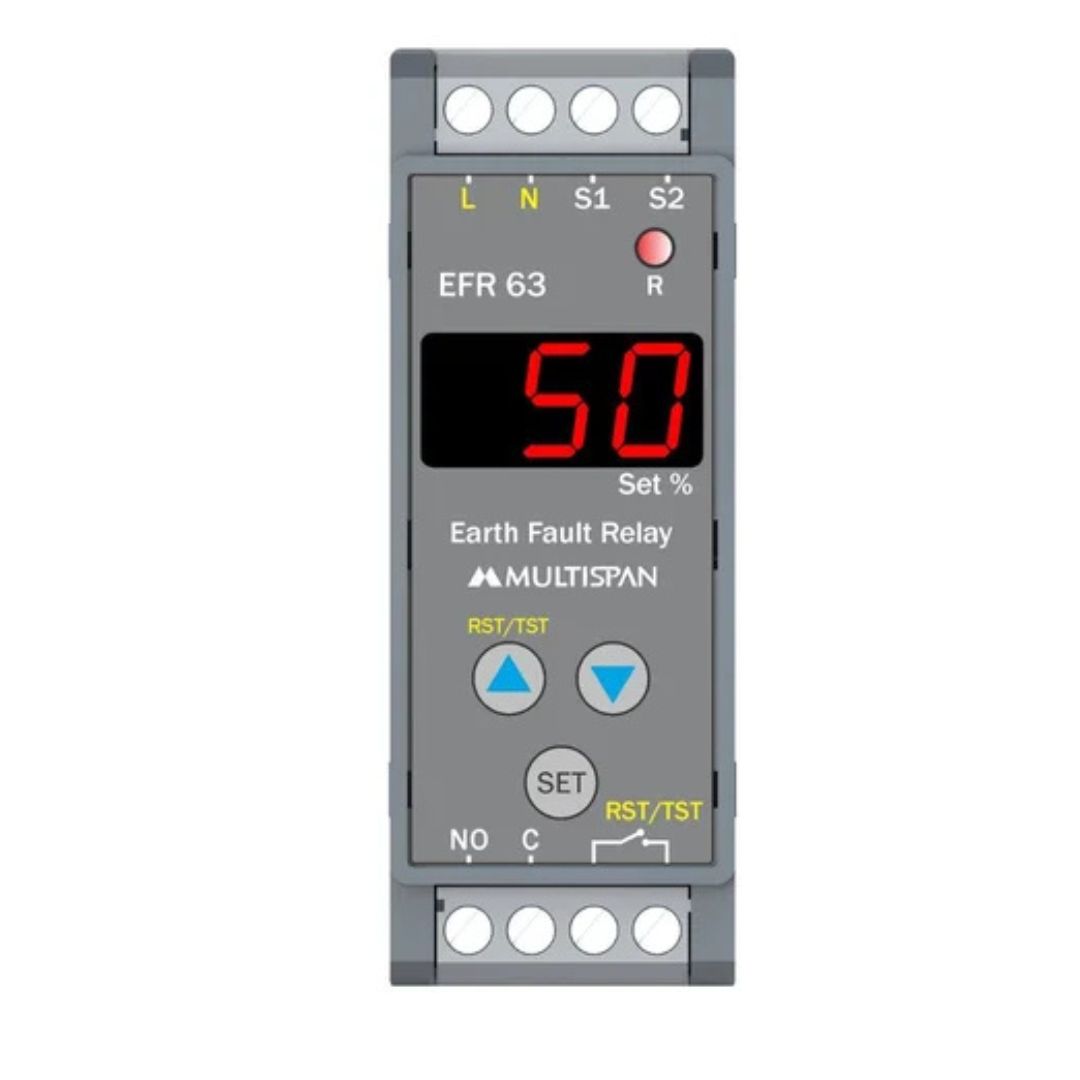

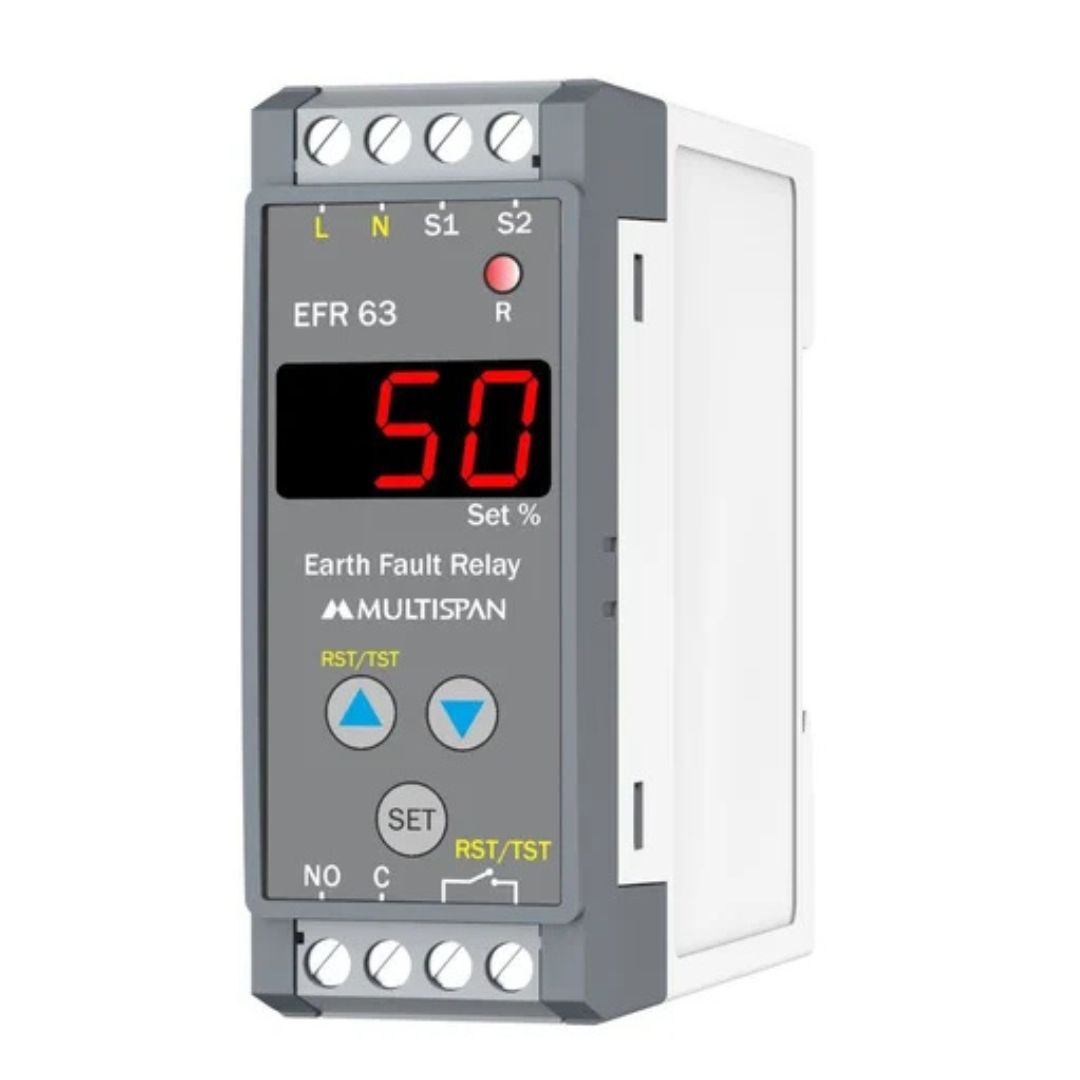

Product: EFR-63
- Input thru External CBCT
- Front and Terminal Test and Reset Function
- Programmable trip Delay
- 1 Relay 1 C/O,5A,230V AC

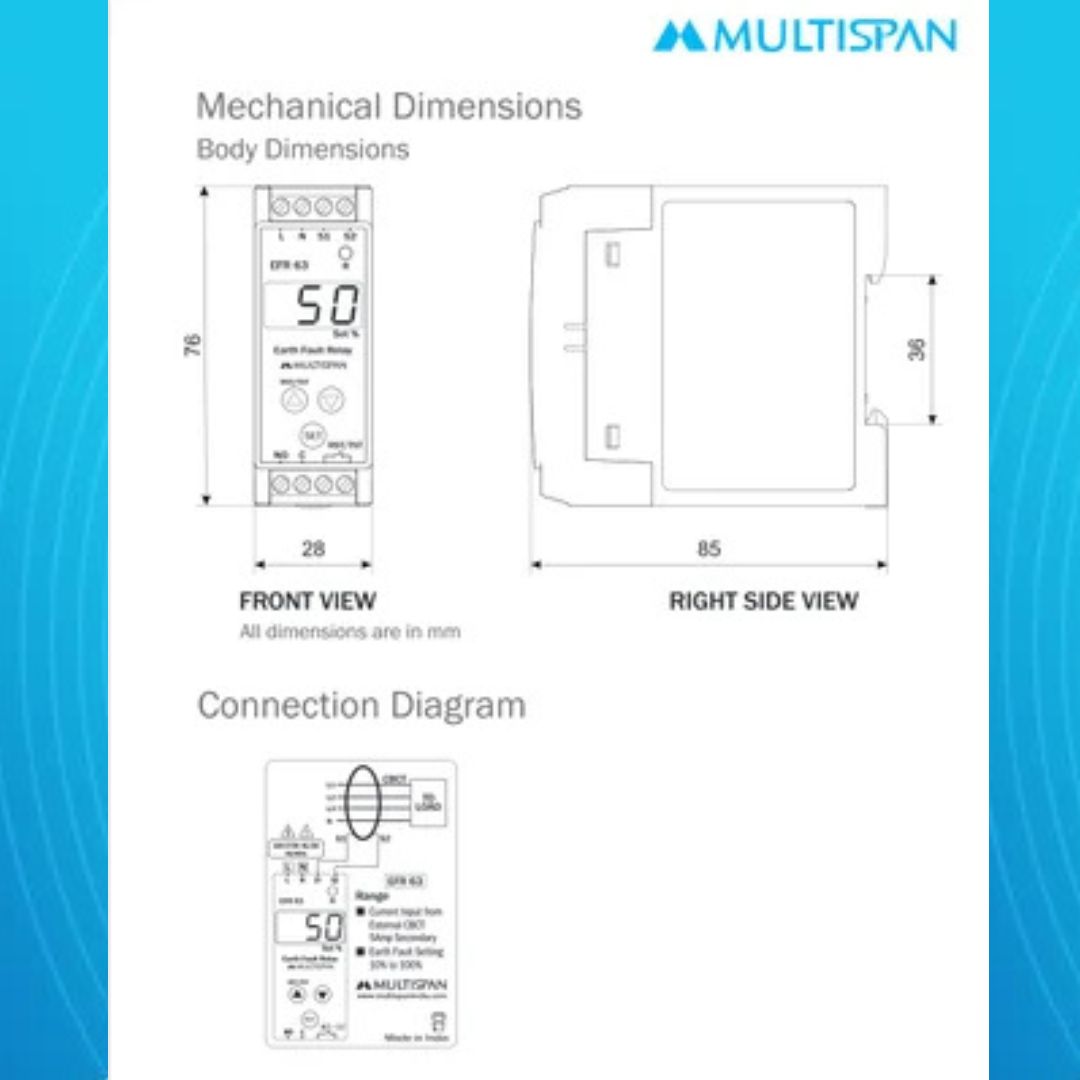

- Size: 76 X 28 X 85 (H X W X D) mm
- Supply Voltage : 100-270V AC

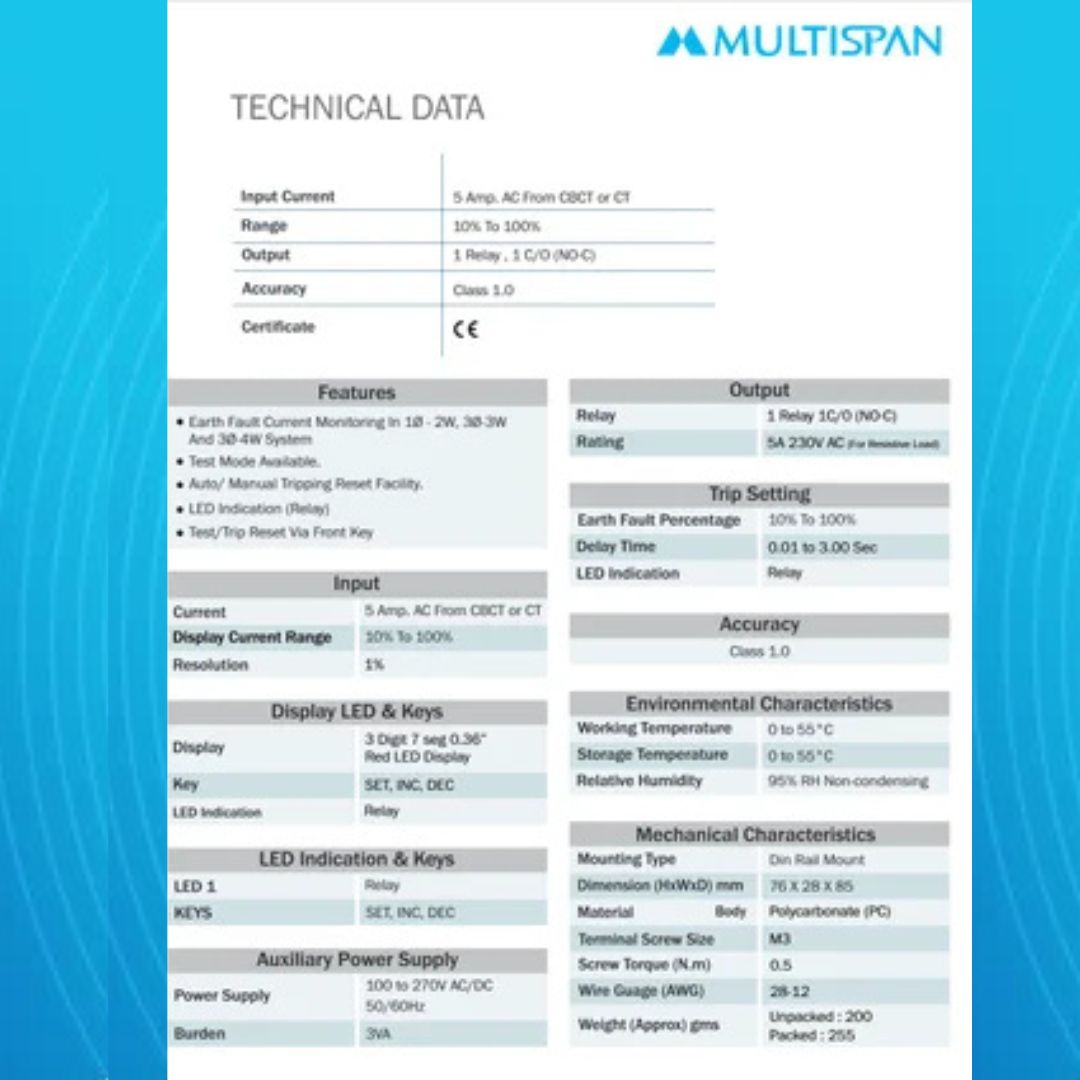

| INPUT SPECIFICATION : | |
| Input Current | 5 Amp. AC From CBCT OR CT |
| Range | 10% to 100% |
| Resolution | 1% |
| DISPLAY & KEYS : | |
| Display | 3 Digit, 7 Seg., 0.36”, Red. |
| Keys | SET, INC, DEC. |
| OUTPUT SPECIFICATION : | |
| Relay | 1 Nos. |
| Relay Type | NO – C |
| Rating | 5A,230V AC Resistive Load |
| AUXILIARY SUPPLY : | |
| Supply Voltage | 100 To 270 V AC |
| Power Consumption (VA Rating) | 3VA @ 230 VAC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0 – 55°C |
| Relative Humidity | 95% RH |
