| Current Rating | 5A |
| Voltage Type | AC |
| Resolution | If Current in mA = 1 mA If Current is Amp Above = 0.01A |
| Input Current | 0.00 To 3.00 A AC in CBCT |
| Display Currant Range | 30mA To 3.00 Amp |
| Country of Origin | Made in India |

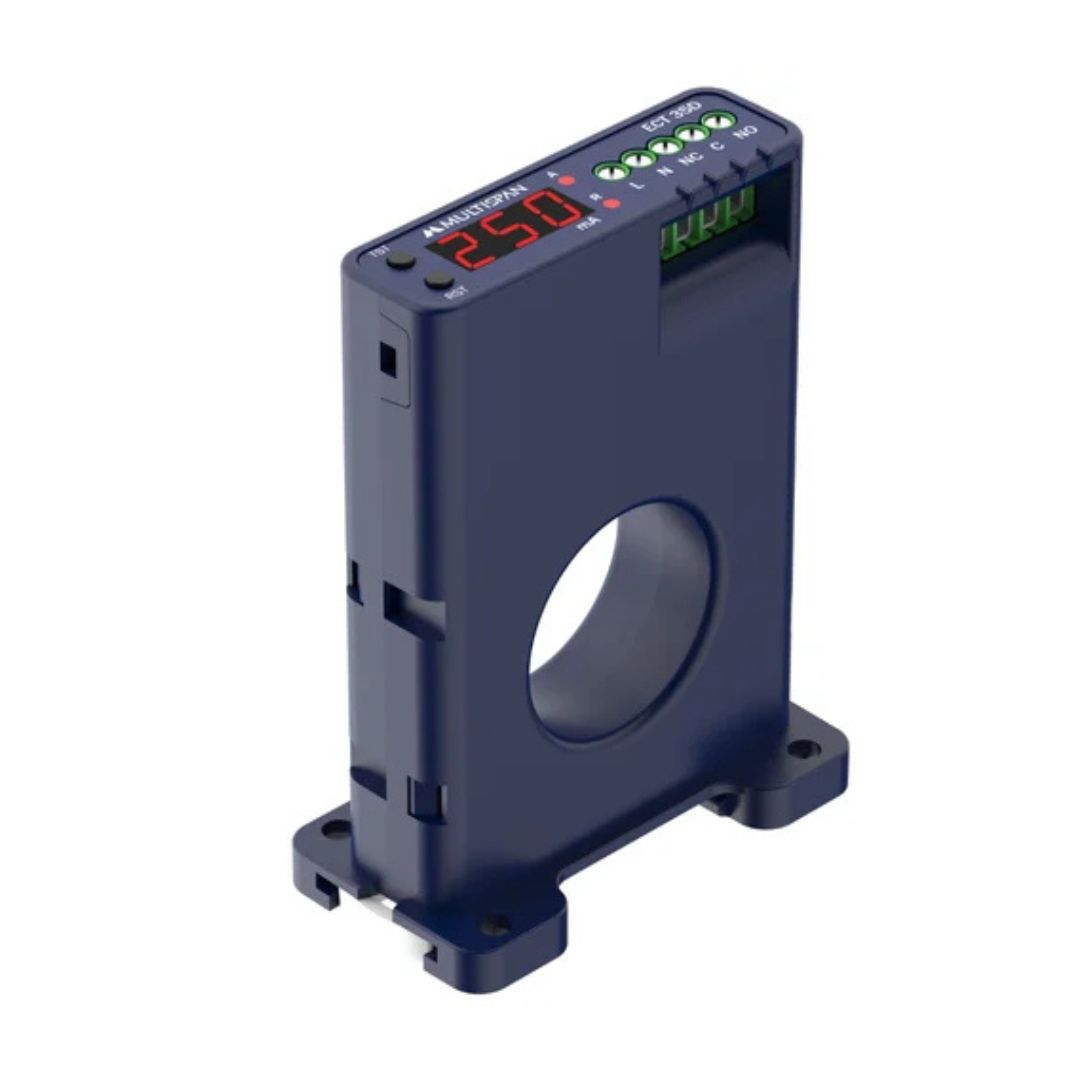

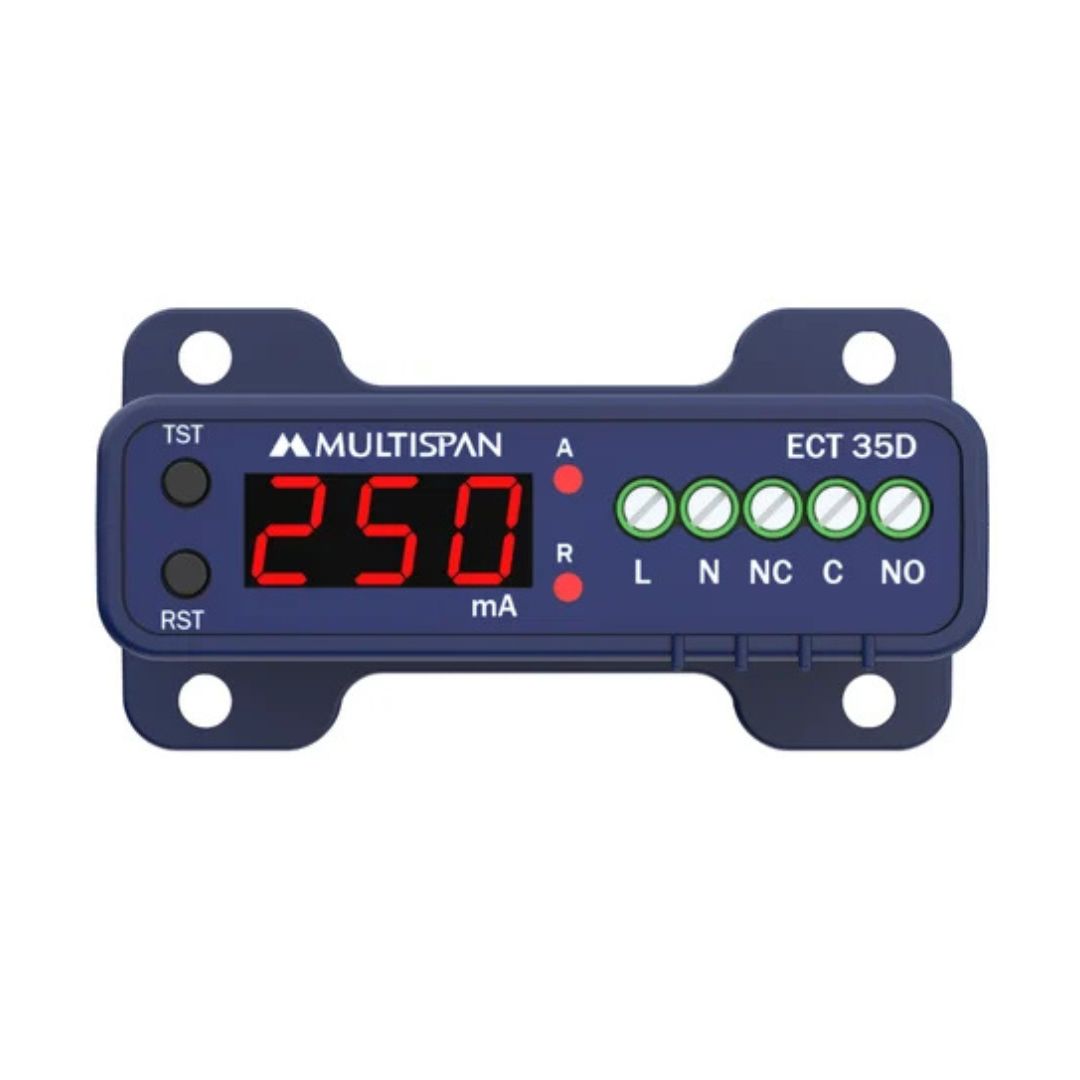

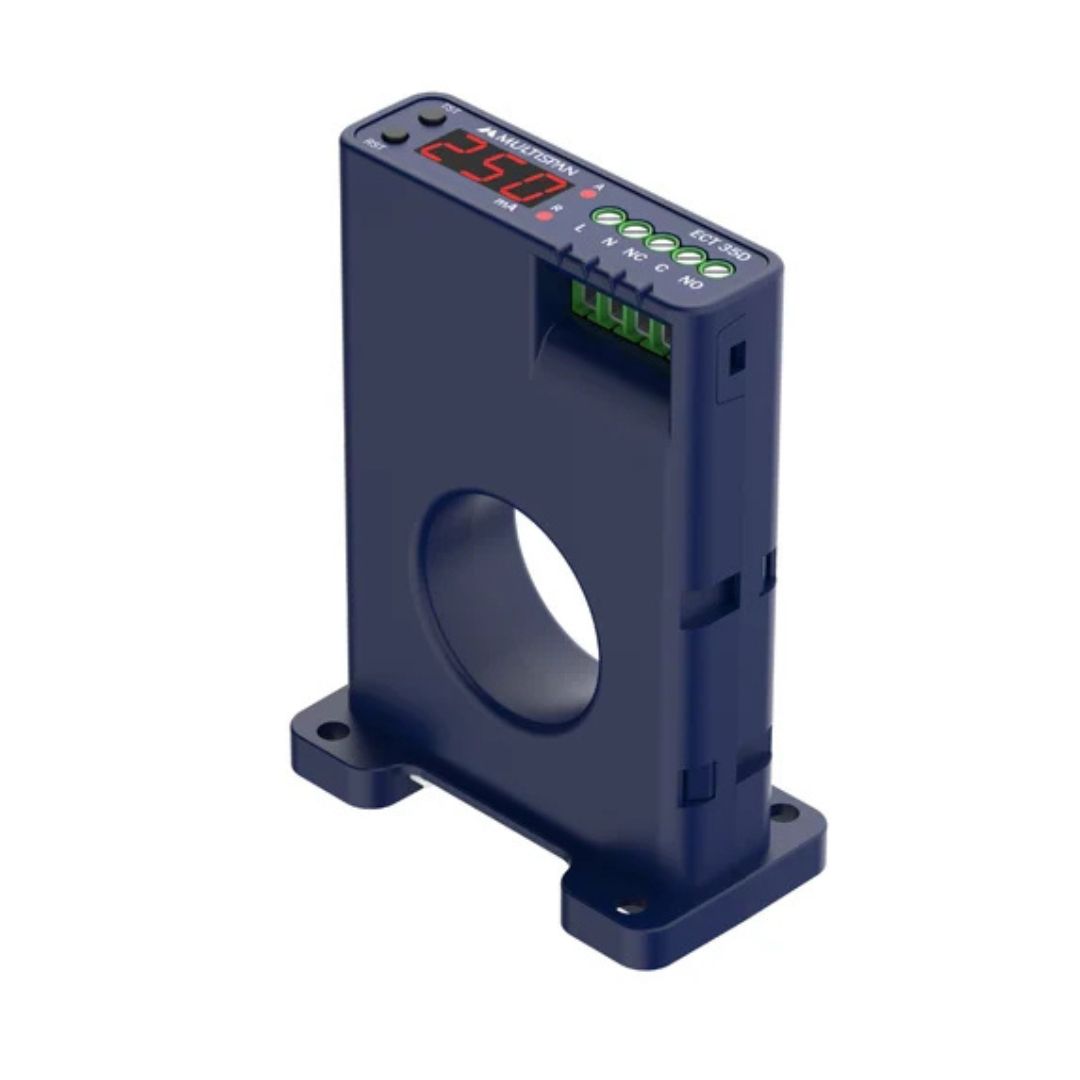

Product: Multispan ECT-35D
- Range 30mA to 3A AC
- No Need of Separate CBCT as Built in CBCT (ID 35mm)
- Digital Display for Programming Leakage Setting and Trip Delay
- 1-Relay, 1-C/O, 5A, 230V AC
- With Front Key and Terminal Reset and Test Function
- Size: (H)76mm X (W)40mm X (D)103mm
- Supply Voltage: 100-270V AC/DC
| INPUT SPECIFICATION : | |
| Input Current | 0.00 To 3.00 A AC in CBCT |
| Display Currant Range | 30mA To 3.00 Amp |
| Resolution | If Current in mA = 1 mA If Current is Amp Above = 0.01A |
| DISPLAY & KEYS : | |
| Display | 3-Digit, 7-Seg., 0.28”, Red. |
| Keys | Test, Rst |
| OUTPUT SPECIFICATION : | |
| Relay | 1 Nos. |
| Relay Type | NO – C- NC |
| Rating | 5A,230V AC Resistive Load |
| AUXILIARY SUPPLY : | |
| Supply Voltage | 100 To 270 V AC/DC |
| Power Consumption (VA Rating) | 3VA @ 250 VAC MAX |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0 – 55°C |
| Relative Humidity | 95% RH |
Application
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
