| Bore Diameter | As Per Drawing |
| Max Pressure | 1 MPa |
| Material | Aluminum |
| Type Bearing | Slidable Bearing/ Ball Bearing |
| Ambient and fluid temperature | 5 DegreeC to 60 DegreeC |
| Operation | Double Acting |
| Piston Speed | 50 to 500 mm/s |
| Buffer | Rubber Buffer |
| Sensor | D-A93 |
| Operation Fluid | Air |
| Anti-pressure testing pressure | 1.5 MPa |
| Min Operation Pressure | 0.12 MPa |

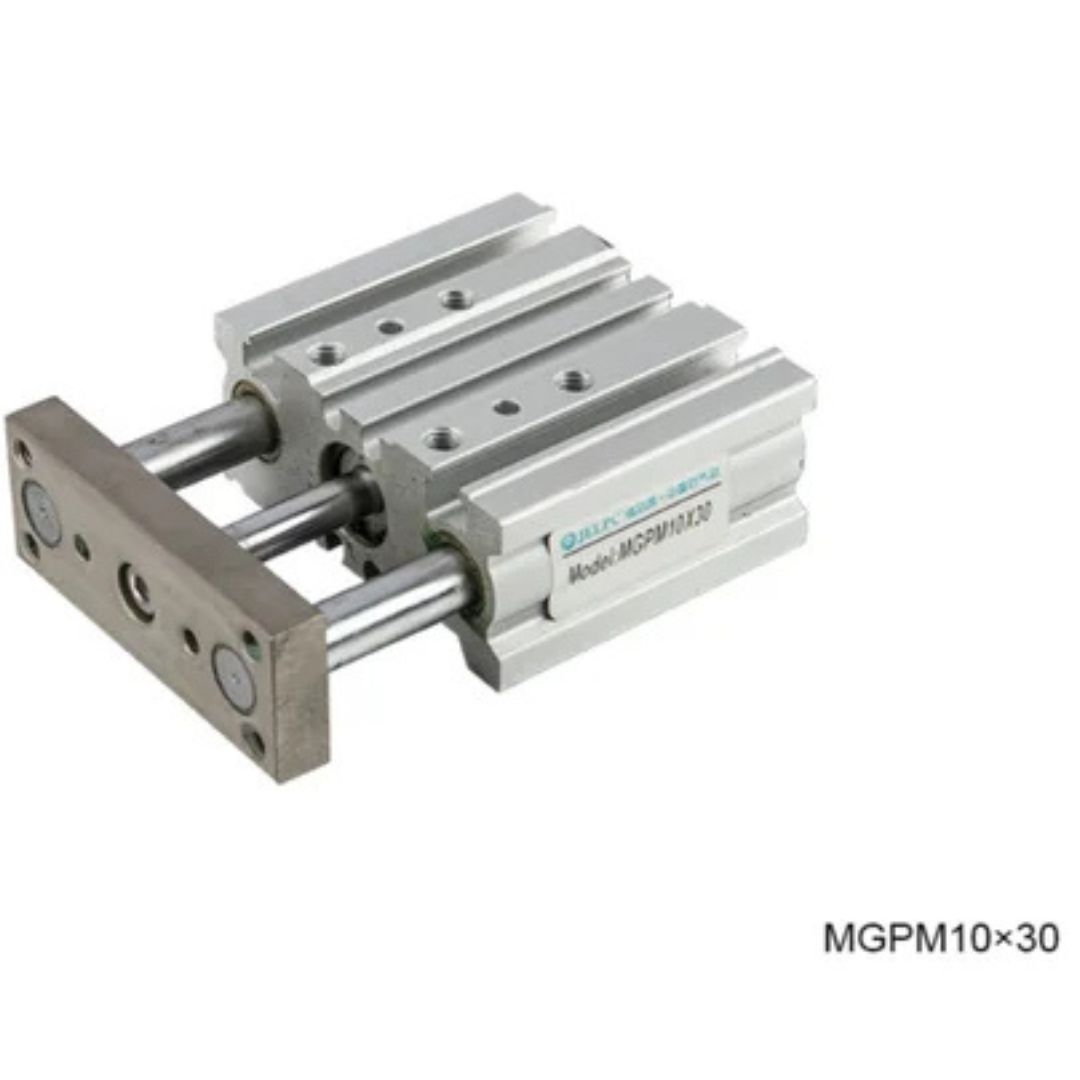

JELPC MGP New Compact Tri-rod cylinder

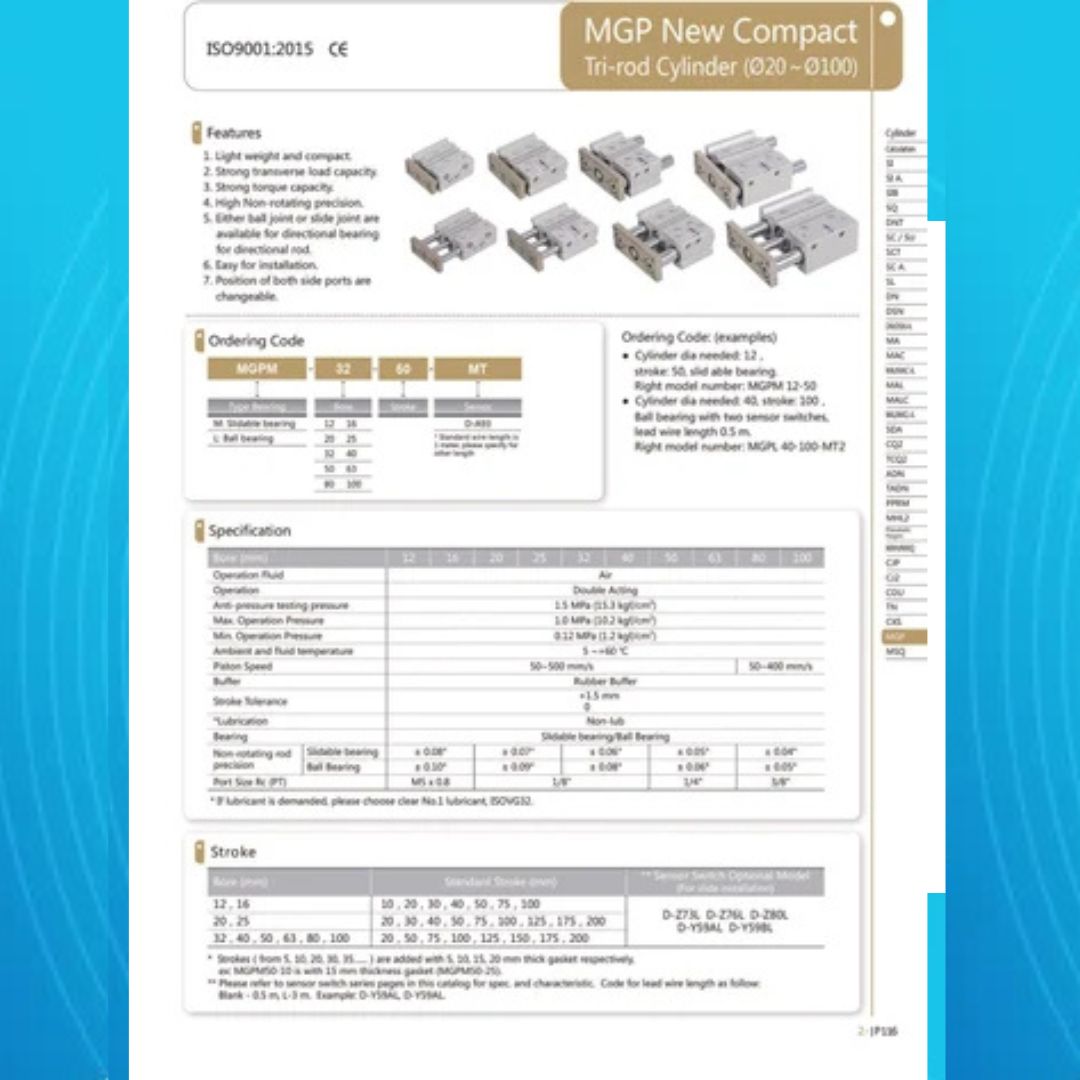

Features:
1. Light weight and compact.
2. Strong transverse load capacity.
3. Strong torque capacity.
4. High Non-rotating precision.
5. Either ball joint or slide joint are available for directional bearing for directional rod.
6. Easy for installation.
7. Position of both side ports are changeable.
