| Material | Aluminium |
| Max Pressure | 1.5 MPa |
| Bore Size | 20 to 100 mm |
| Working Medium | Air |
| Operating Speed Range | 30 to 500 mm/s |
| Standard Stroke | 5 to 100 mm |
| Port Size | G1/8″ |
| Type | Double Acting |

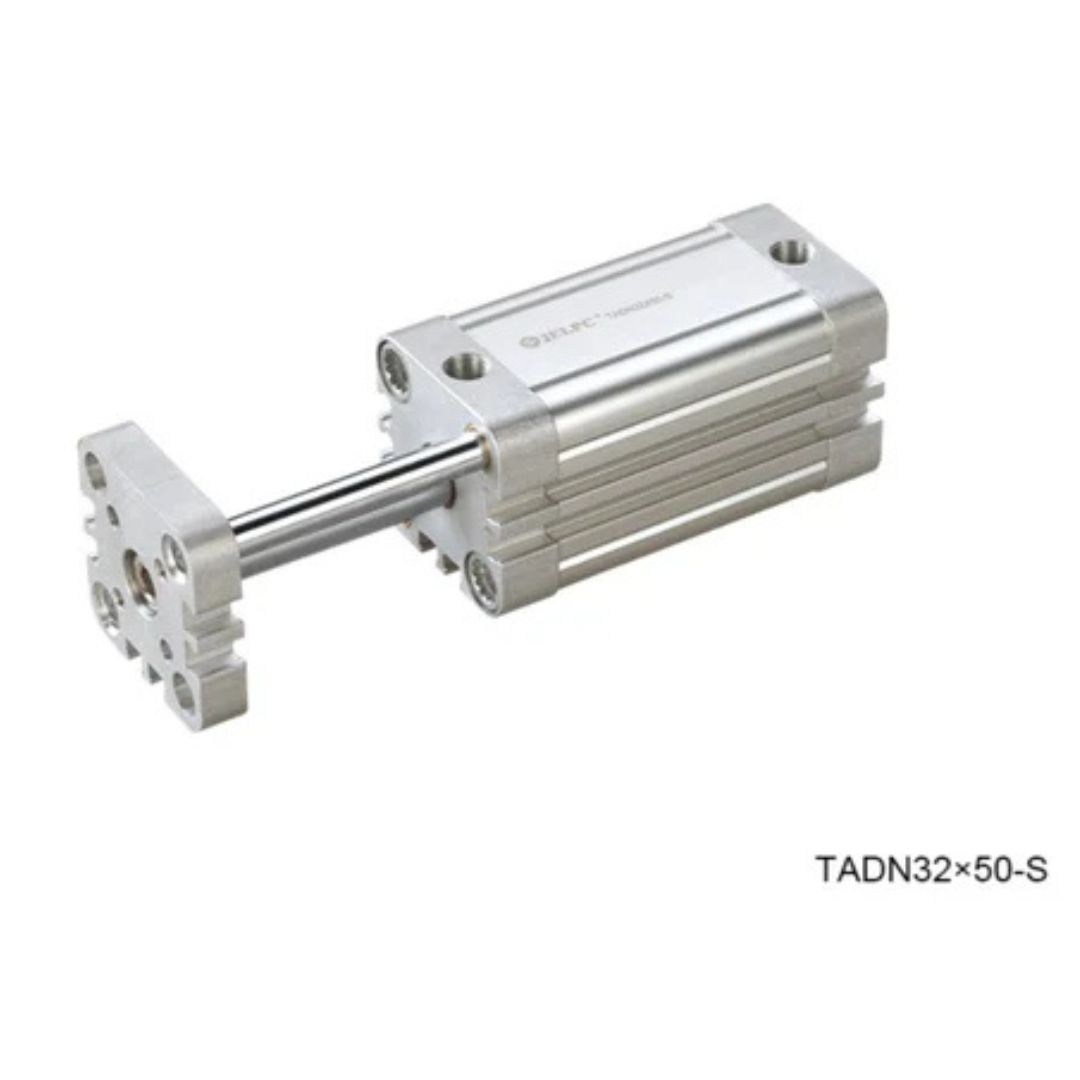

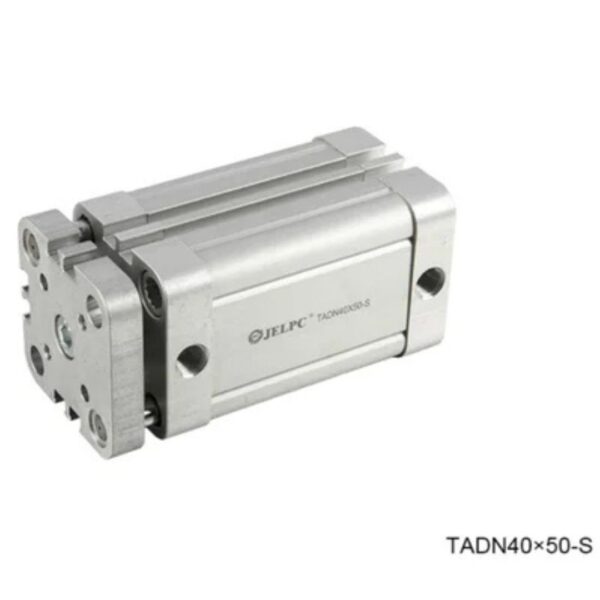

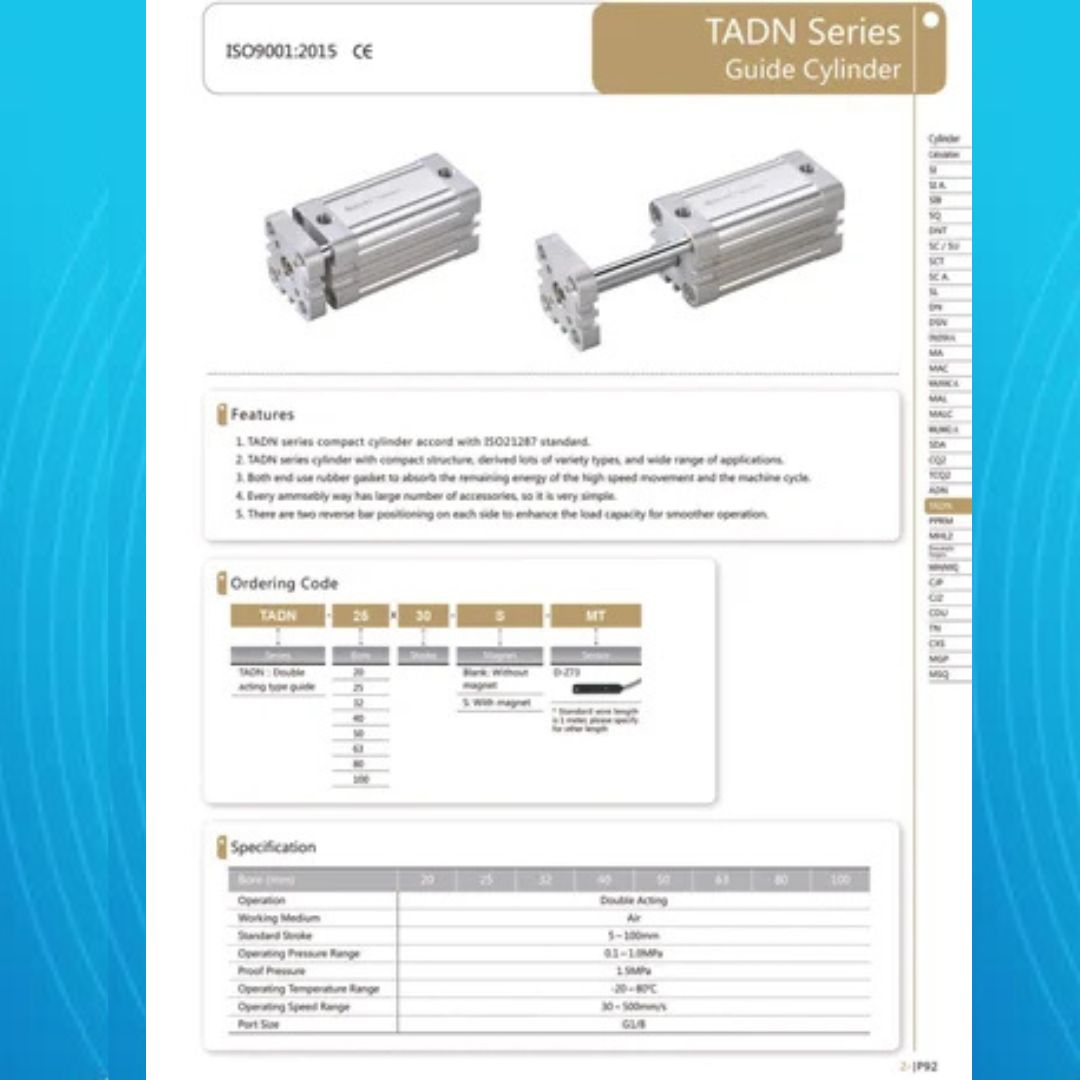

JELPC TADN Series Guide Compact Air Cylinder
Features:
- In accord with ISO21287 standard.
- Compact structure, derived lots of variety types, and wide range of applications.
- Both end use rubber gasket to absorb the remaining energy of the high speed movement and the machine cycle.
- Every ammsebly way has large number of accessories, so it is very simple.
- There are two reverse bar positioning on each side to enhance the load capacity for smoother operation.
