| Material | Aluminium |
| Port Size | M5x0.8, Rc1/8 |
| Max Operation Pressure | 1MPa(with angle adjusting screw), 0.6MPa(with hydralic cushion) |
| Angle adjusting range | 0 to 190 Degree |
| Ambient and fluid temperature | 0 DegreeC to 60 DegreeC |
| Cushion | Rubber Buffer (Standard) / Hydralic Cushion device (Optional) |
| Medium | Air ( Non-lub) |
| Operation | Double Acting |
| Bore | 10 to 200 mm |
| Min Operation Pressure | 0.1 MPa |

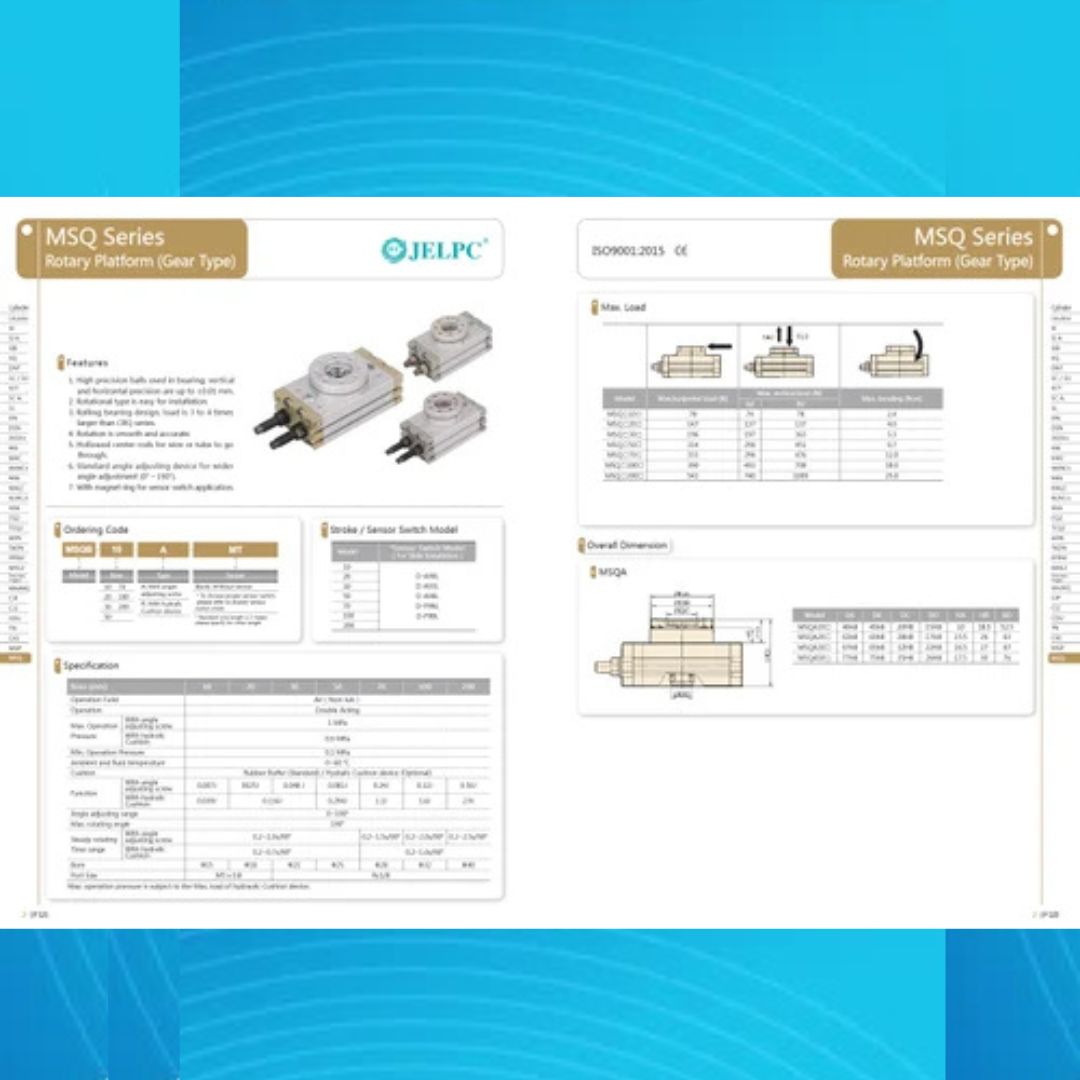

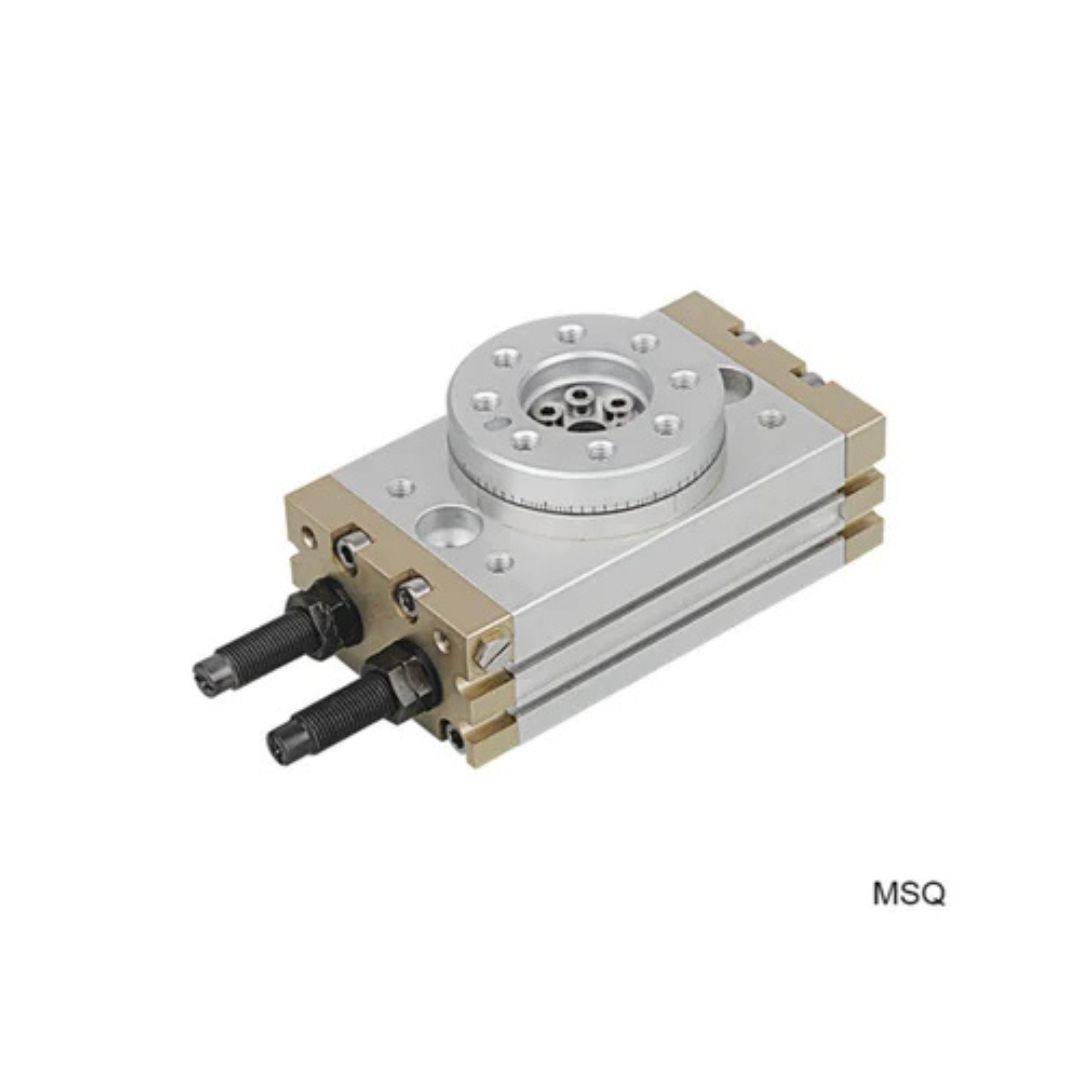

JELPC MSQ Series Rotary Platform
Features:
1. High precision balls used in bearing, vertical and horizontal precision are up to ±0.01 mm.
2. Rotational type is easy for installation.
3. Rolling bearing design, load is 3 to 4 times larger than CRQ series.
4. Rotation is smooth and accurate.
5. Hollowed center rods for wire or tube to go through.
6. Standard angle adjusting device for wider angle adjustment (0°～190°).
7. With magnet ring for sensor switch application.
