| Current Rating | 50A |
| Display | 8-Digit, 7-Segment, 0.5″ Red display |
| Voltage | 100 To 270V AC,50/60Hz,Approx 4VA |
| Brand | Multispan |
| Frequency | 45 To 65 Hz |
| Phase | 1 |

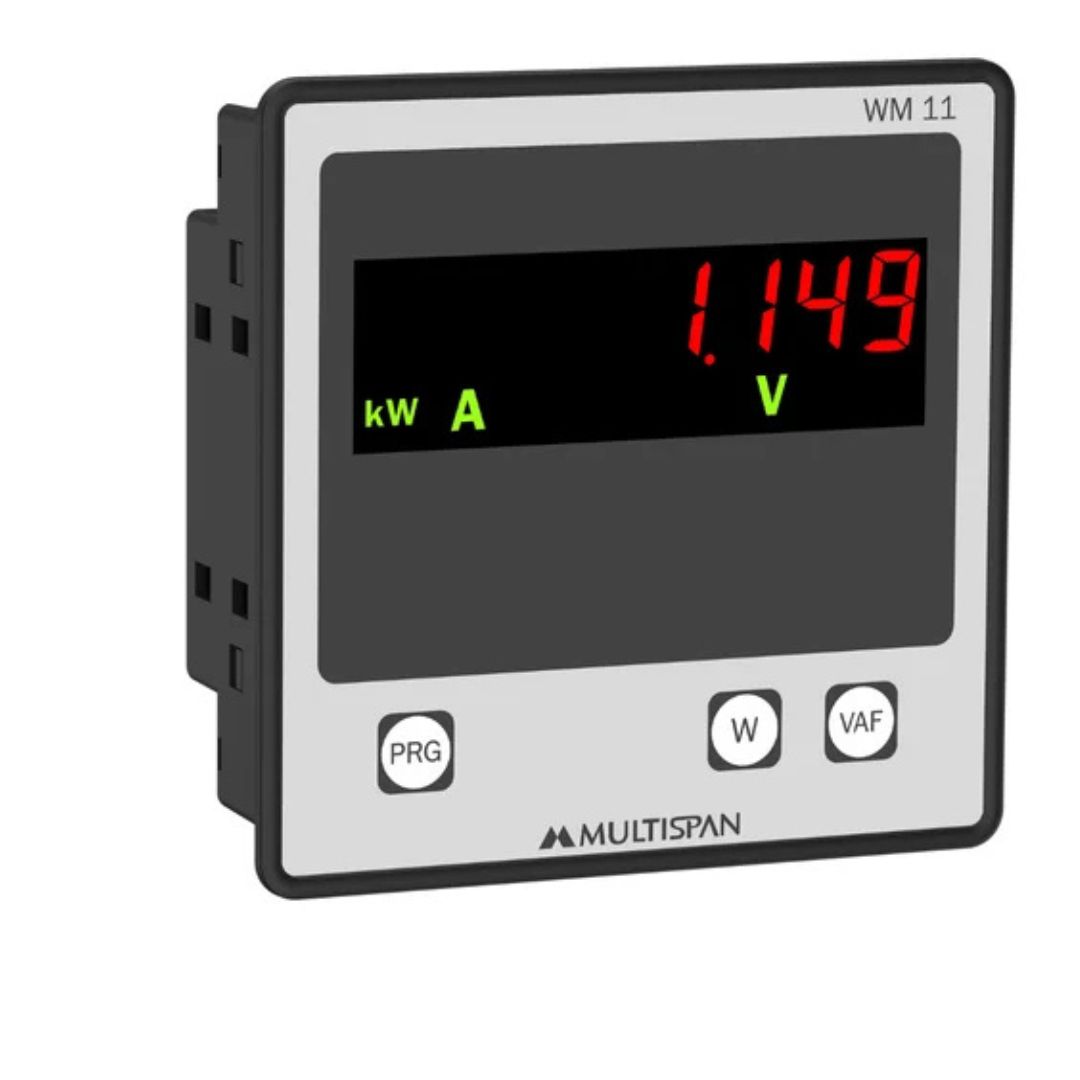

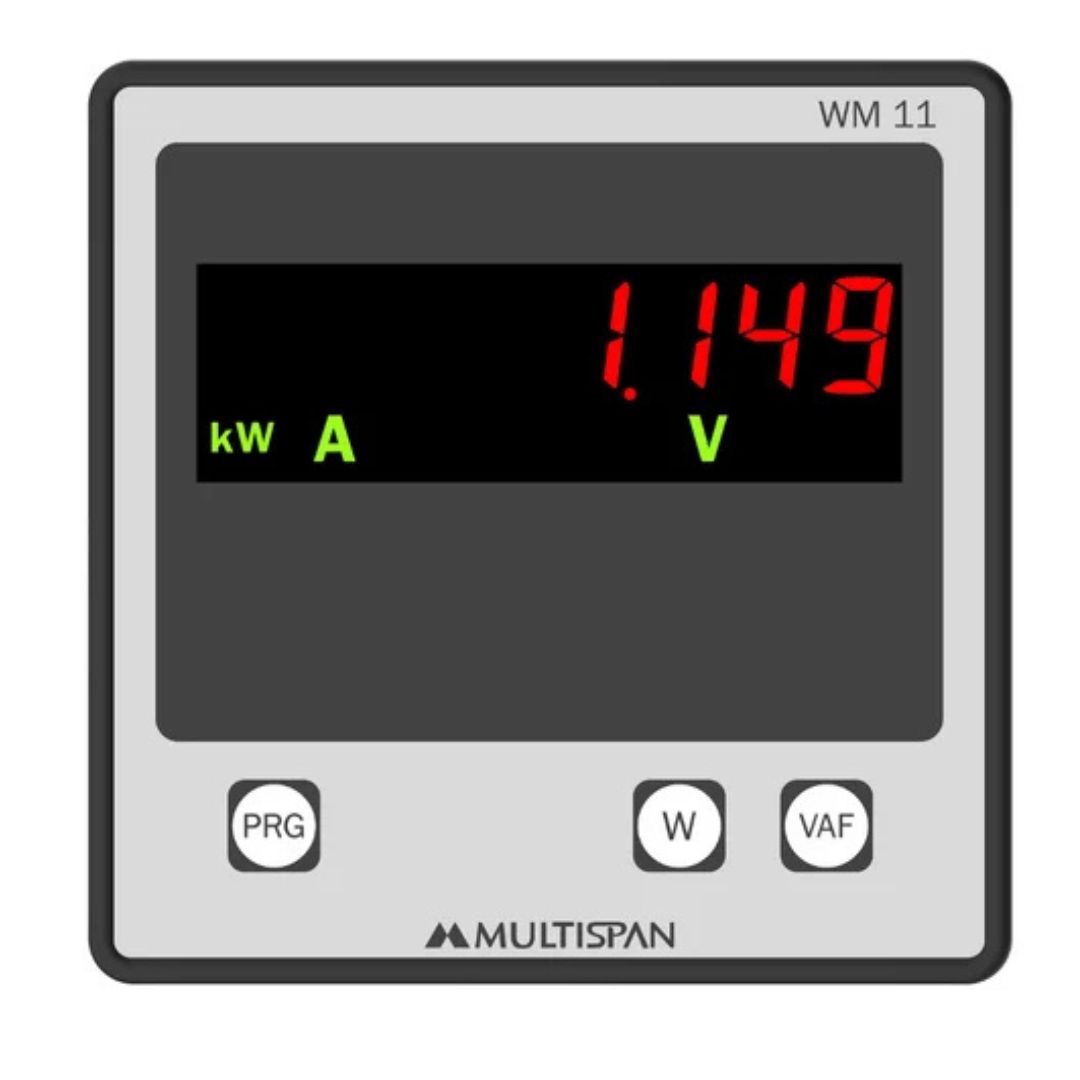

Product: MULTISPAN WM-11
- 1Ø-2W
- CT Primary 5A to 50A
- CT Secondary 5A
- Voltage 0-300V AC
- Size: (H)96mm X (W)96mm X(D)43mm
- Supply Voltage: 100-270V AC, 50/60 Hz
| Model | WM-11 |
| Display | 8-Digit, 7-Segment, 0.5” Red display |
| Size (mm) | 96 (H) X 96 (W) X 43 (D) |
| Panel Cutout (mm) | 92 (H) X 92 (W) |
| Voltage Input | 0 To 300V AC VLN CAT III |
| Current Input | 30mA To 5 Amp or higher through external CT |
| Active Power (KW) | 0.000 Watt To 9999 KW |
| Power Supply | 100 To 270V AC,50/60Hz,Approx 4VA |
| Frequency | 45 To 65 Hz |
| Wiring System | 1Ø-2W |
| Protection Level (As Per Request) |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
| Operating Temperature | 0°C To 50°C |
| Relative Humidity | Upto 95% RH Non Condensing |
