| Control Type | PID |
| No of digits | 4+7 |
| Mounting Type | Flush Mounting |
| Display Size | 96*96 mm |
| Output type | Relay |
| Sensor Input | Thermocouple |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Protection Level (As per request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
| Operating Temp. | 0 DegreeC to 55 DegreeC |
| Country of Origin | Made in India |

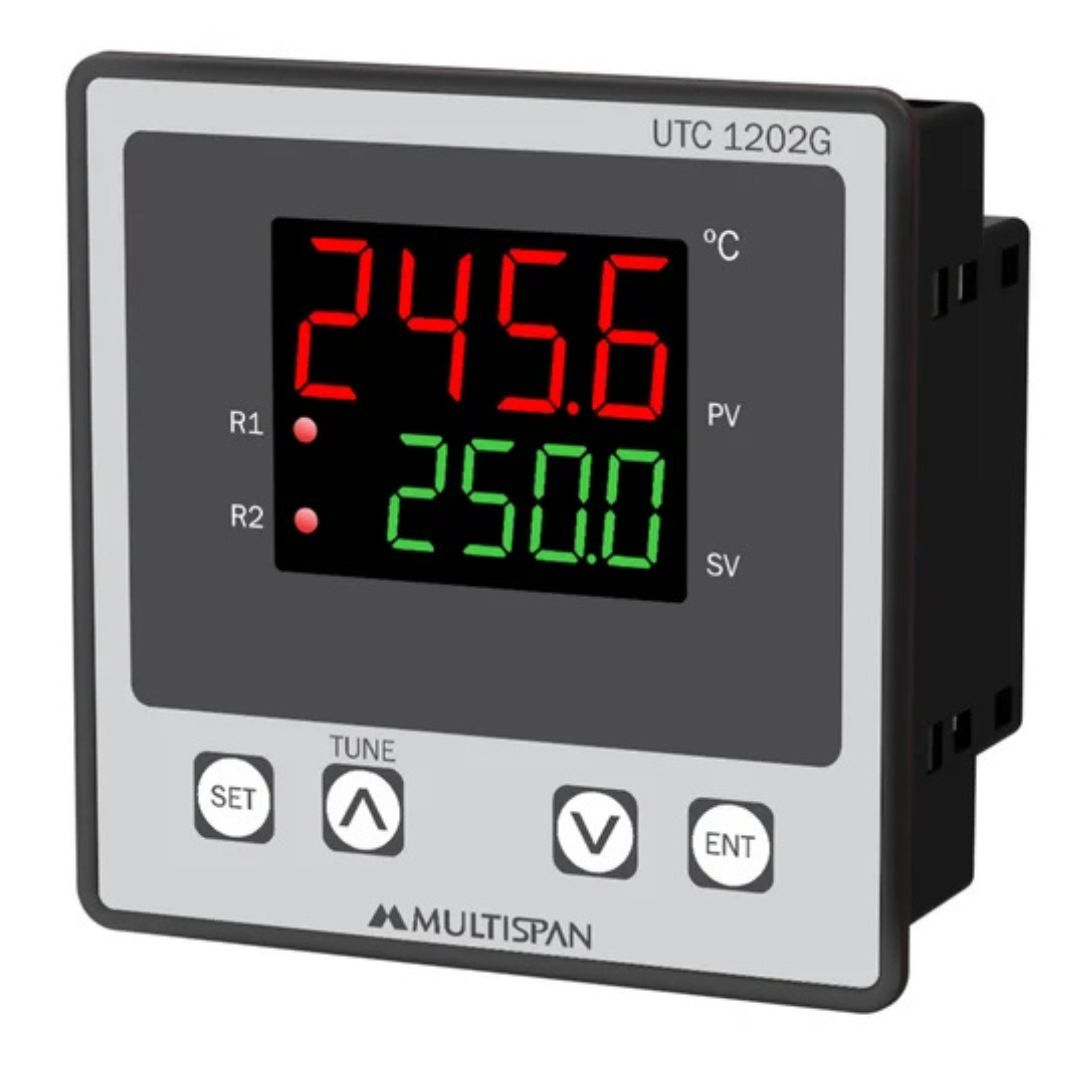

4 Digit Dual Display Dual Output Accurate PID Controller
Product: UTC-1202G
- Universal Input (J/K/RTD)
- 4-Digit Dual Red/White LED Display
- Accurate PID controller
- Dual Output (Relay || SSR) + (Relay or SSR) for Load Control & Alarm Functions
- With Soak Timer Facility
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply Voltage: 100-270V AC
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 600°C | |
| K | 0 to 1200°C | |
| PT-100 | -99 to 400°C | |
| PT.1 | -99.9 to 400.0°C | |
| Resolution | J,K,PT-100 = 1°C | |
| J.1,K.1,PT.1 = 0.1°C | ||
| Indication
Accuracy |
±0.5% of FSD | |
| DISPLAY AND KEYS: | ||
| Display | Upper: 4-Digit, 7-Segment, 0.70” | |
| Lower: 4-Digit, 7-Segment, 0.50” | ||
| Keys | SET, INC, DEC, ENT | |
| DIMENSION: | ||
| Size (mm) | 96 (H) x 96 (W) x 54 (D) | |
| Panel Cutout (mm) | 92 (H) x 92 (W) | |
| CONTROL METHOD: | ||
| Heating | 1. PID control with Auto-Tuning | |
| 2. (TP) Time Proportional | ||
| 3. ON-OFF control | ||
| Cooling | 1. BL.TP (Blower Time Proportional) | |
| 2. ON-OFF control | ||
| Alarm | High /Low /Absolute Low/ Inband/ | |
| Absolute Outband/Outband/End Alarm | ||
| POWER SUPPLY | ||
| Supply voltage | 100 to 270V AC, 50-60Hz | |
| Power consumption (VA RATING) | Approx 4VA @ 230V AC MAX | |
| OUTPUT SPECIFICATION : | ||
| Relay Output | ||
| Relay | 2 nos. | |
| Relay Type | 1 C/O , (NO-C-NC) | |
| Rating | 10A, 230V AC / 28 V DC | |
| SSR Drive Output | ||
| Output Signal | 12V DC, 30mA DC | |
| (ON-OFF Condition) | ||
| Relay 1 Parallel to SSR | ||
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level (As per request) | IP-65 (Front side) As per IS/IEC 60529 : | |
