| Phase | Three Phase |
| Model Name/Number | Multispan PM-11 |
| Voltage | 100- 270V AC/DC |
| Display Type | 4-Digit, 3-Line, 7-Seg, 0.56″ Red LED |
| Usage/Application | Industrial |
| Dimension | 96 (H) x 96 (W) x 54 (D) |
| Brand | Multispan |

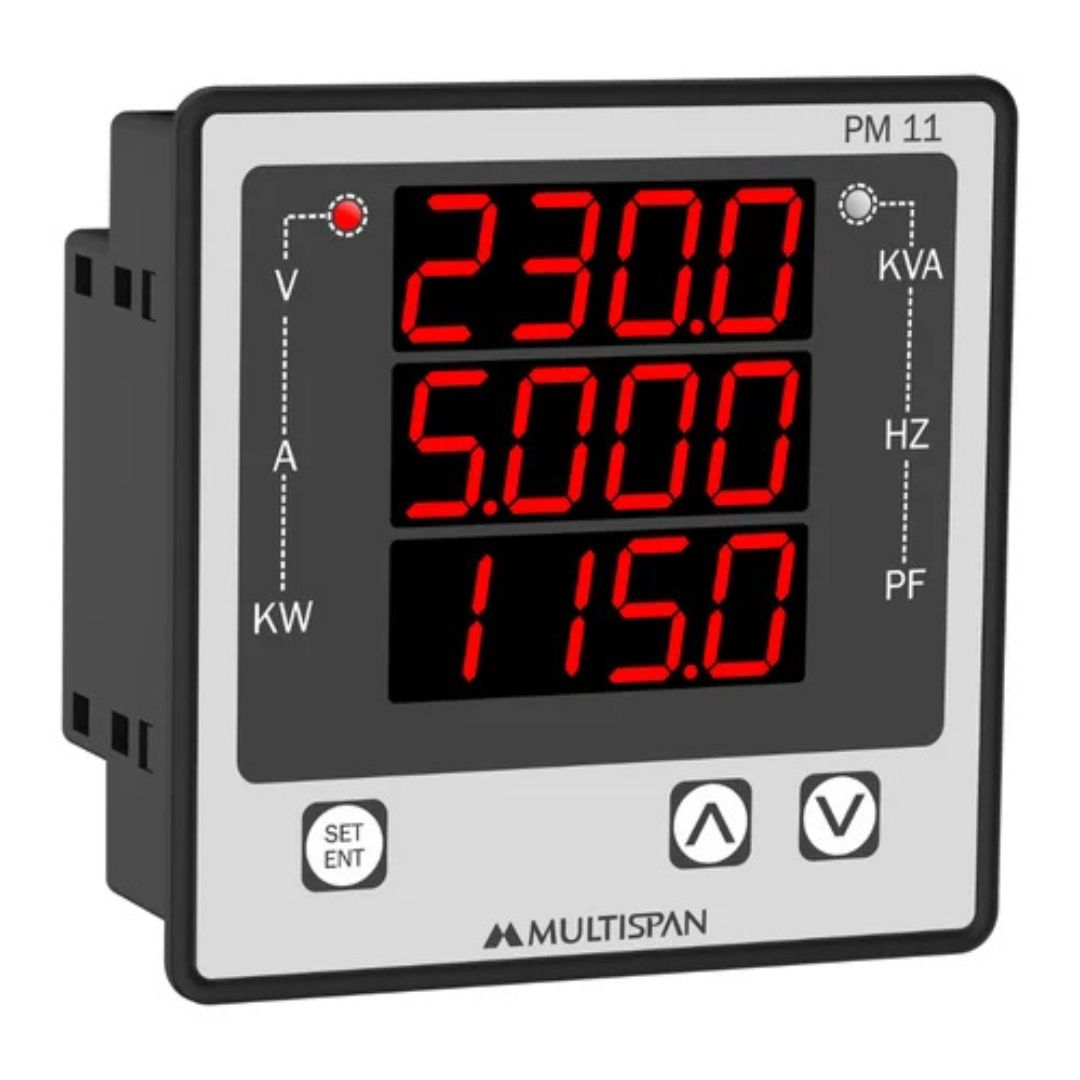

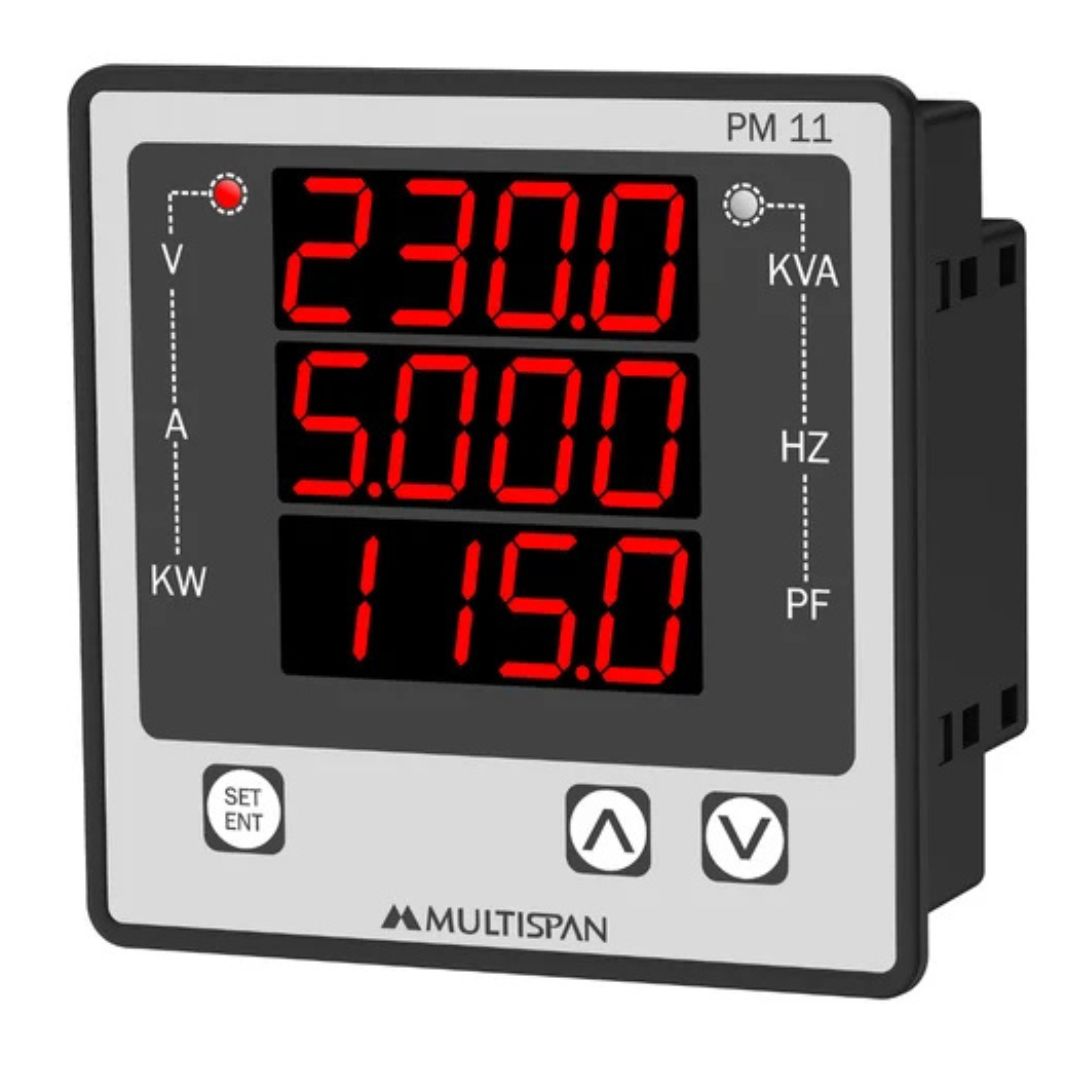

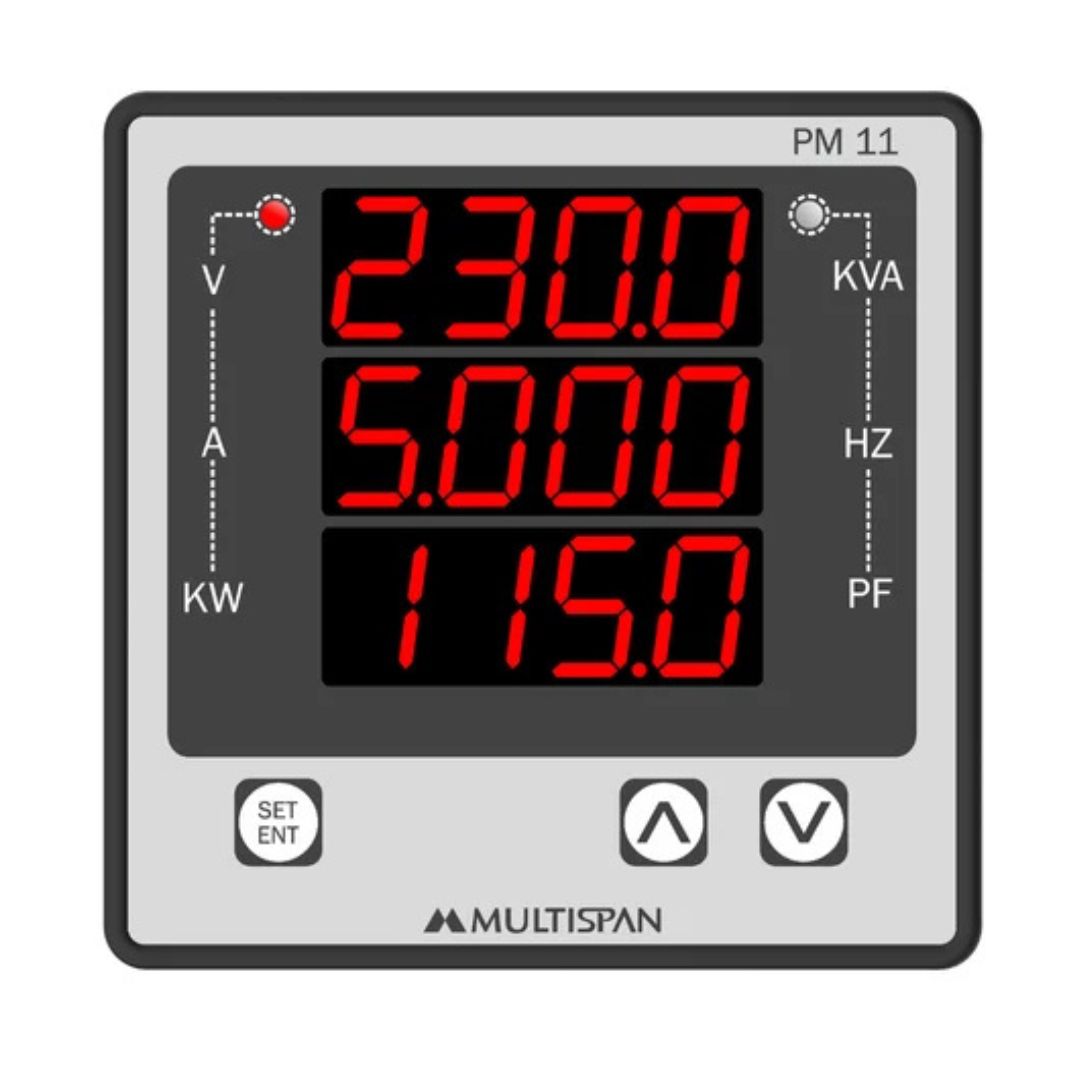

1Ø Multifunction Meter
Product: PM-11
- Network Selection: 1Ø-2W
- Display Voltage, Current, Frequency, Power Factor, Kilo-Watt, Kilo-Watt Hours
- RS-485 Modbus as Per Request
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply: 100- 270V AC/DC, 50/60Hz
Technical Specification
| INPUT | |
| Input Signal | 1Ø-2 Wire |
| CT Primary | UP to 9999A (Programm.) |
| CT Secondary | 5A/1Amp Selectable |
| PF | 0.100 – 1.000 |
| Frequency | 45.0 to 65.0 Hz |
| DISPLAY, KEY & LED | |
| Display | 4-Digit, 3-Line, 7-Seg, 0.56” Red LED |
| Key | Set, Inc, Dec |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| ACCURACY | |
| Class 0.5 (Standard) | |
| AUXILIARY POWER SUPPLY | |
| Power Supply | 100 to 270V AC/DC, 50/60Hz |
| Burden | 3VA |
| ENVIRONMENTAL CONDITION | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | 95 % RH NonCondensing |
| Protection Level ( As per Request ) | IP-65 (Front side As per IS/IEC 60529 : 2001) |
Application
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer training
