| Usage/Application | Industrial |
| Brand | Multispan |
| Color | Black |
| Display Count | 4-Digit, 7-seg |
| Memory | Yes/No |
| Power Supply | 230V AC, 50Hz, Approx 4VA |
| Size/Dimension | 96 (H) x 96 (W) x 54 (D) |
| Voltage | 230V AC |
| Display Type | Digital |
| Country of Origin | Made in India |

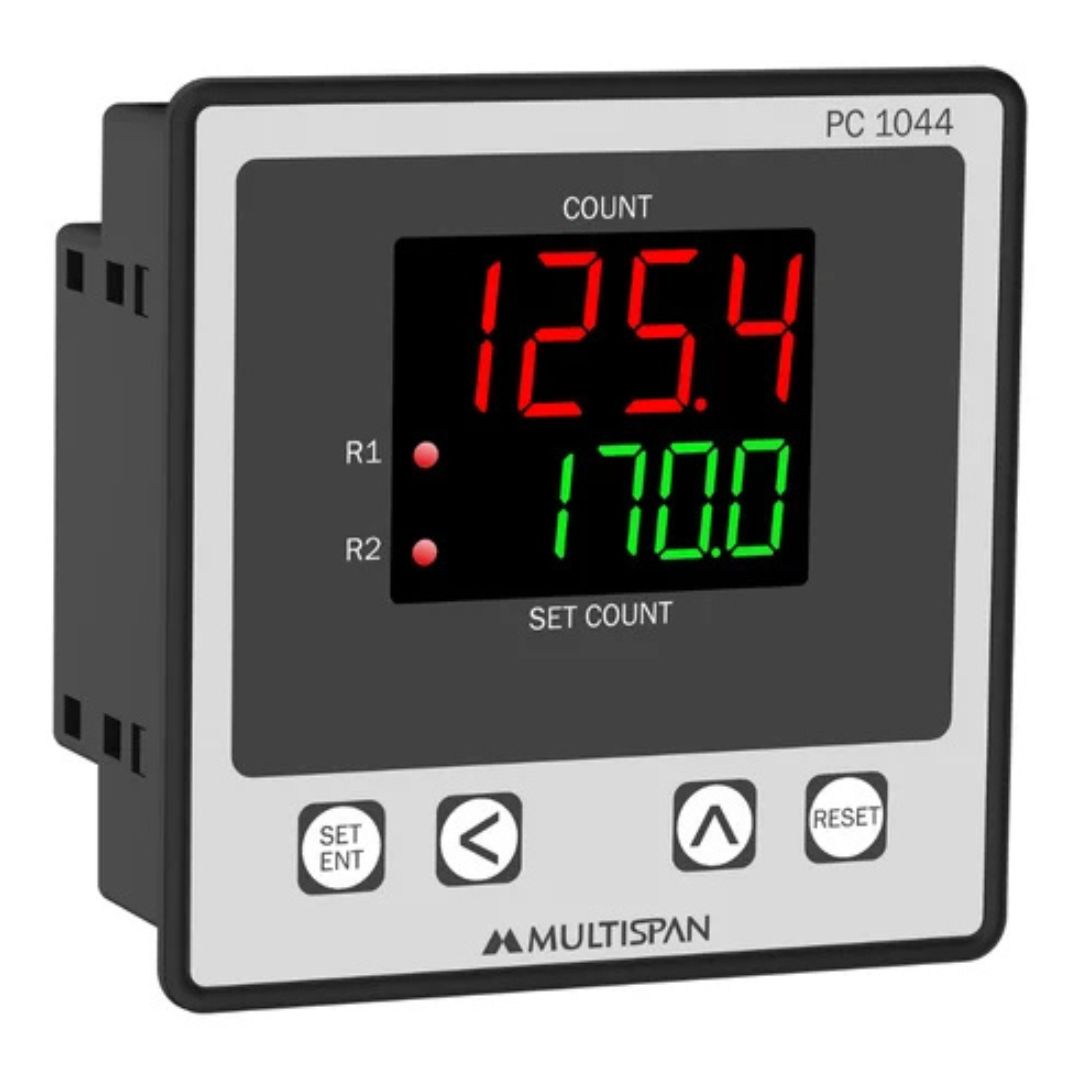

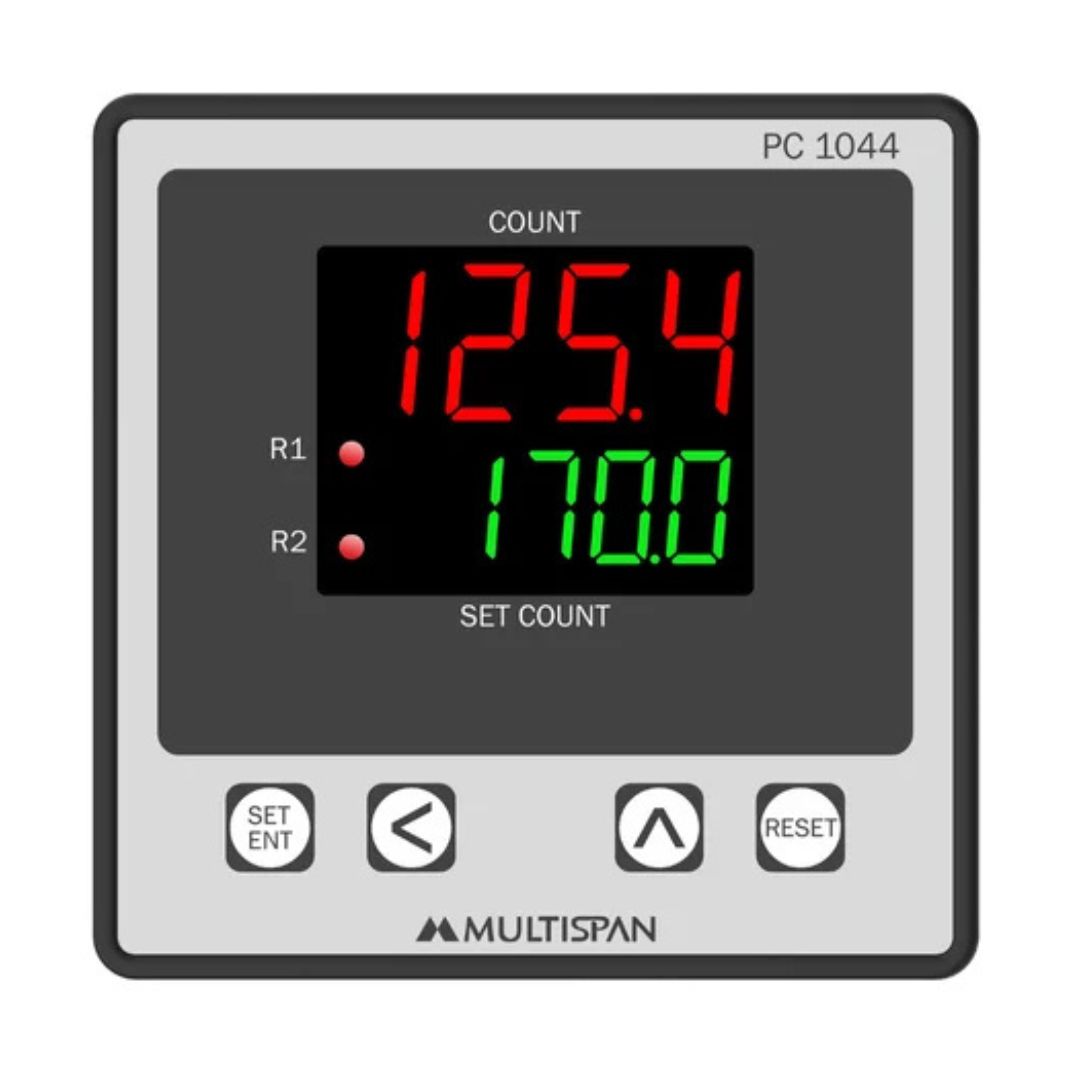

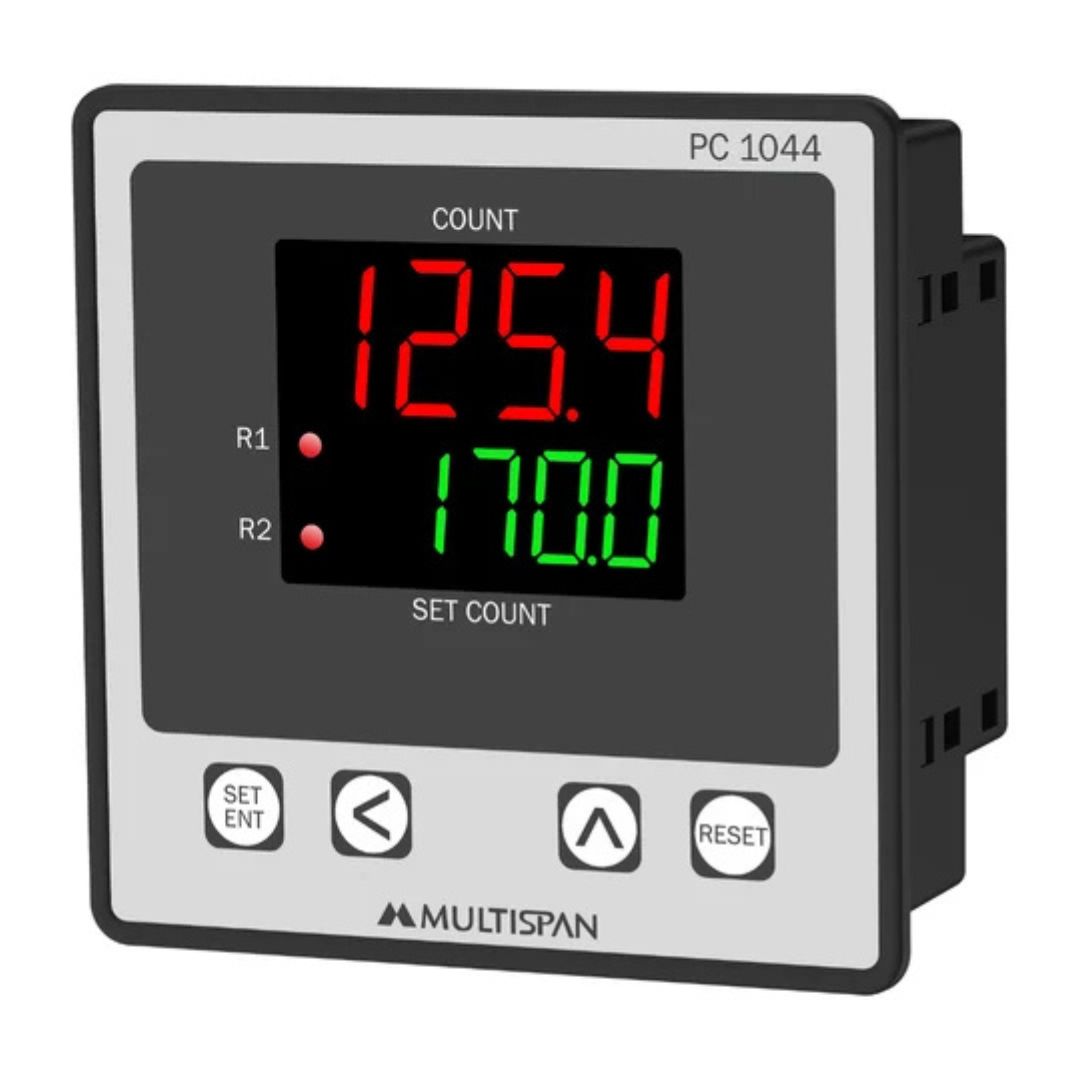

Programmable counter
Product: PC-1044
- Proximity or Micro switch Input
- 1Relay 2C/O Output
- Individual display for Process Count & Set Count
- Auto/Manual reset
- Size: (H)96mm X (W)96mm X (D)54mm
- Supply Voltage: 230V AC
| Parameter | Specification |
|---|---|
| Model | PC-1044 |
| Display UPPER | 4-Digit, 7-seg 0.70″, Red LED |
| Display LOWER | 4-Digit 7-Seg 0.50″, Green LED |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Input | NPN/PNP Proximity & Micro Switch |
| Output | 1-Relay, 2-C/O Contact, 5A 230V AC |
| Power Supply | 230V AC, 50Hz, Approx 4VA |
| Memory Selectable | Yes/No |
| Reset | Front Reset Key & Back Reset Terminal |
| Protection Level | IP-65 (Front side) as per IS/IEC 60529:2001 |
| Operating Temperature | 0°C to 55°C |
| Humidity | Upto 95% RH, Non-Condensing |
Application
- Pharmaceutical Machinery
- Product Counting Machinery
- Packaging Machinery
