| Usage/Application | Industrial |
| Type | Photo Electric Controller |
| Input | Voltage |
| Voltage | 230V AC |
| Case Size | 96 x 96 mm |
| Frequency | 50/60 Hz |
- Multi Proximity Input
- Upto 2-Relay Output
- Clutch Brake Output
- Graphic LCD Display
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply Voltage: 230V AC/110V AC

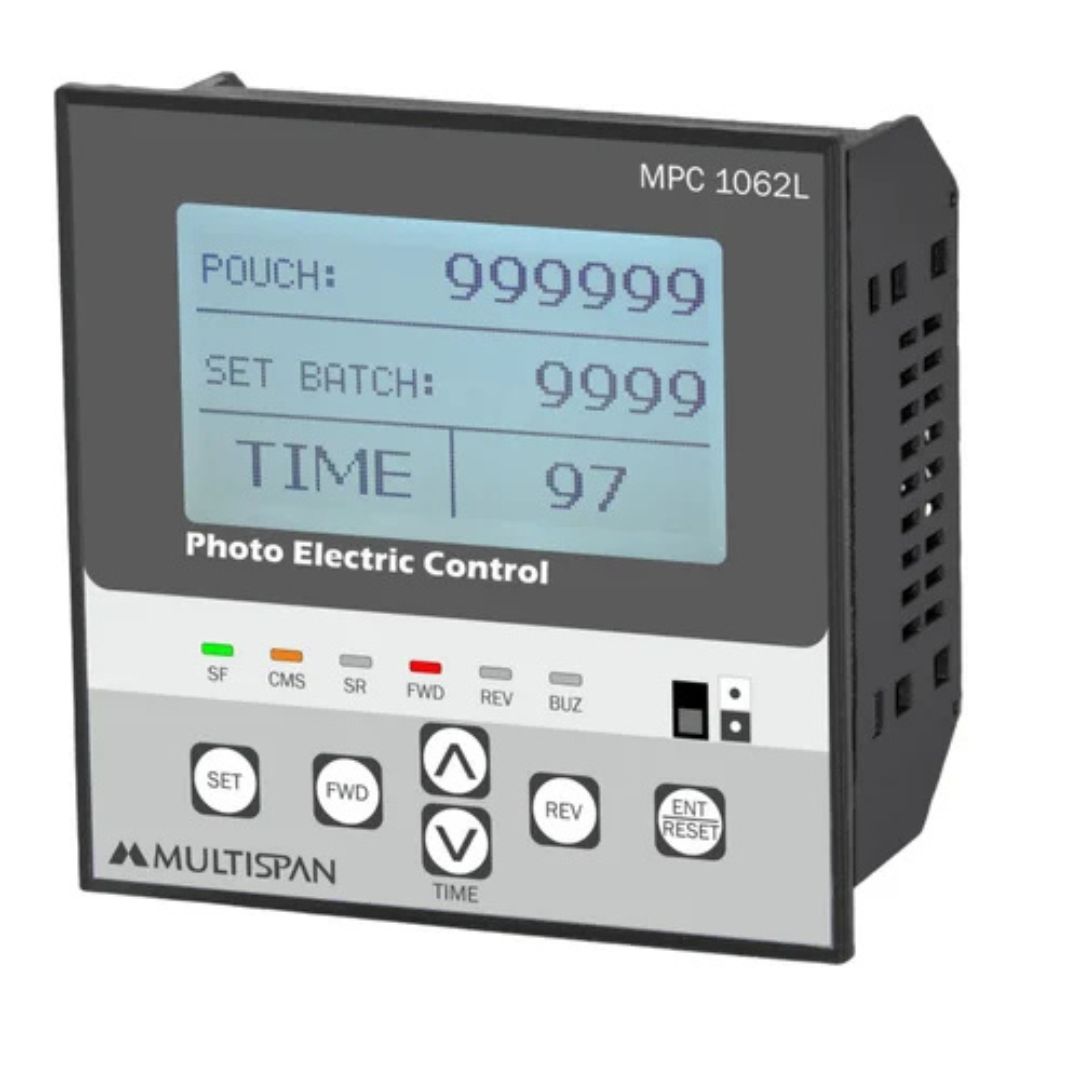

| Model | MPC-1062L |
| Display | Graphical Display |
| Size (mm) | 96 (H) X 96 (W) X 54 (D) |
| Panel Cutout (mm) | 92 (H) X 92 (W) |
| Range | 0 – 999999 Batch Count |
| 0 – 99 Milli Second Forward & Reverse | |
| Input | 2-NPN Proxy for Forward & Reverse |
| NPN/PNP Color Mark Sensor | |
| Output | 230V AC for Control Winding |
| 230V AC for Main Winding & Buzzer | |
| Power Supply | 230V AC,50/60 Hz |
| Reset | Reset at Front |
| memory | Non Volatile |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non Condition |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
Application
- Dust Collector
- Food Processing
- Bag Filteration
- Hydrophonic
- Pharmaceutical
