| Control Type | Standard PID |
| No of digits | 3+7 |
| Mounting Type | Flush Mounting |
| Display Size | 72*72 mm |
| Output type | Relay |

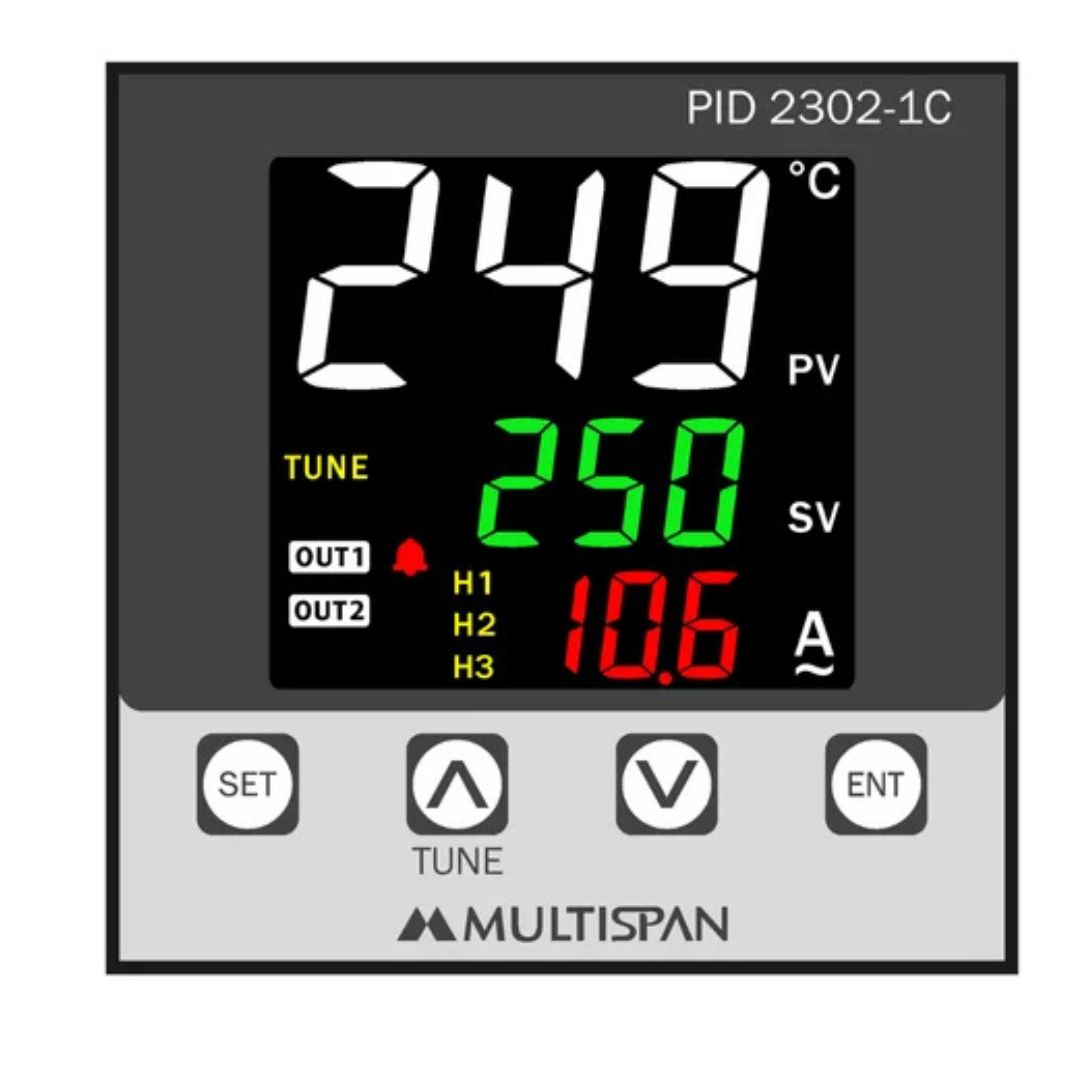

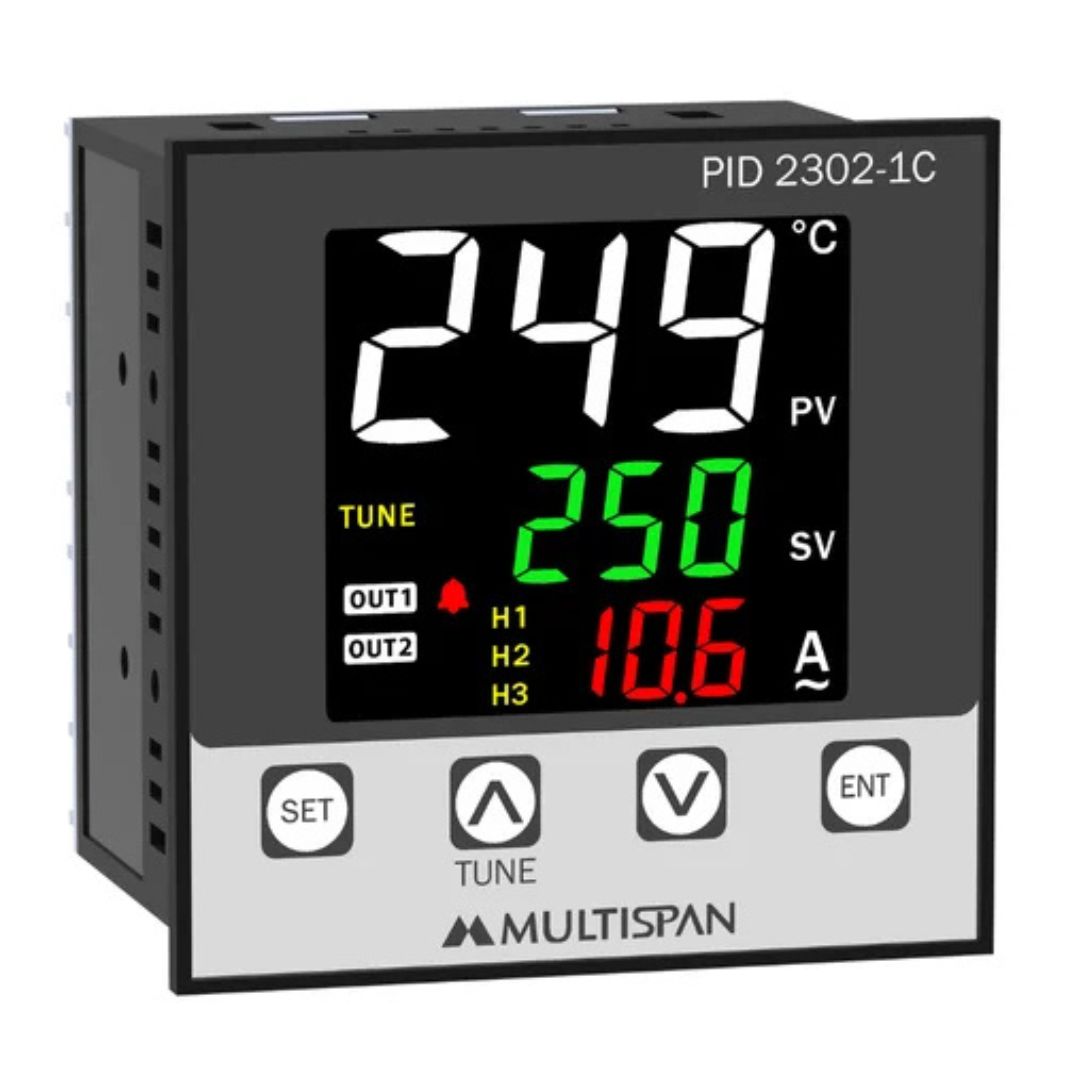

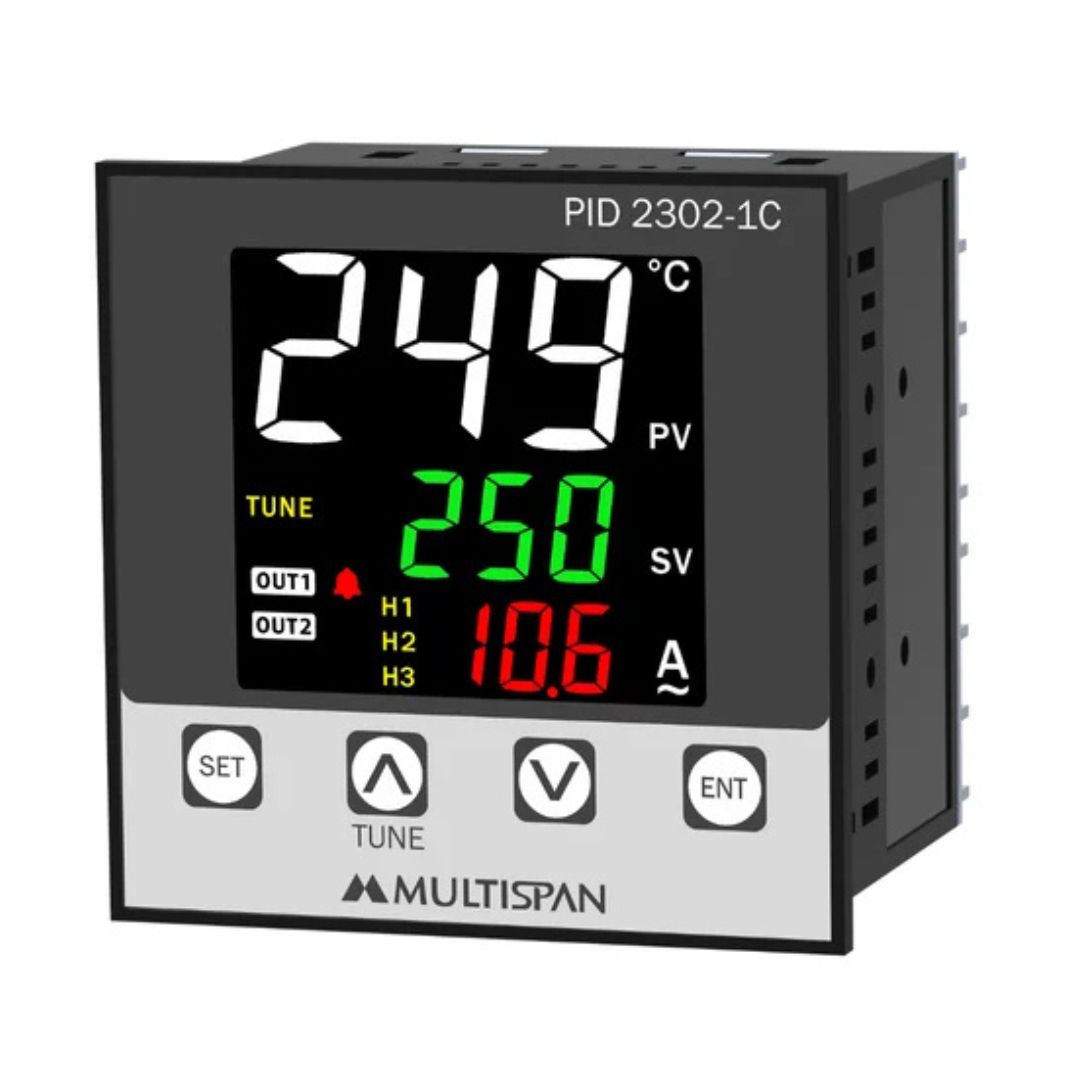

PID Controller with Ampere Indication-2 OUTPUT
- J/K Thermocouple Input
- PID Controller with Ampere Indication for Various Loads
- With Single or Three Phase CT upto 60A Rating
- 3-Line, 3-Digit Display (SV, PV and Amp)
- 2-Relay Output
- Size: (H)72mm x (W)72mm x (D)85mm
- Supply Voltage: 100-270V AC
| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 400°C | |
| K | 0 to 500°C | |
| 1 CT | 0.0 to 60.0 A | |
| Resolution | J,K = 1°C | |
| Indication Accuracy | ±1% of FSD | |
| (FSD:- full scale deflection) | ||
| DISPLAY AND KEYS: | ||
| Display | Upper: 3-Digit, 7-Seg 0.6” White LED | |
| Middle: 3-Digit, 7-Seg, 0.3” Green LED | ||
| Lower: 3-Digit, 7-Seg, 0.39” Red LED | ||
| Keys | SET, INC, DEC, ENT | |
| DIMENSION: | ||
| Size (mm) | 72 (H) x 72 (W) x 85 (D) | |
| Panel Cutout (mm) | 68 (H) x 68 (W) | |
| CONTROL METHOD: | ||
| Heating | 1. PID control with Auto-Tuning | |
| 2. ON-OFF control | ||
| Cooling | 1. BL.TP ( Blower Time Proportion) | |
| 2. ON-OFF control | ||
| OUTPUT SPECIFICATION: | ||
| Relay Output | ||
| Relay | 2 Nos | |
| Relay Type | 1st Relay 1C/O & 2nd Relay (NO-C) | |
| Rating | 10A, 230V AC / 28V DC | |
| SSR Drive Output | ||
| Output Signal | 21V DC, 30mA DC | |
| (On-Off Condition) | ||
| POWER SUPPLY: | ||
| Supply Voltage | 100 to 250V AC, 50-60Hz | |
| Power Consuption (VA Rating) | Approx 6VA @ 230V AC | |
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity | Upto 95% RH | |
| (non-condensing) | ||
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 | |
