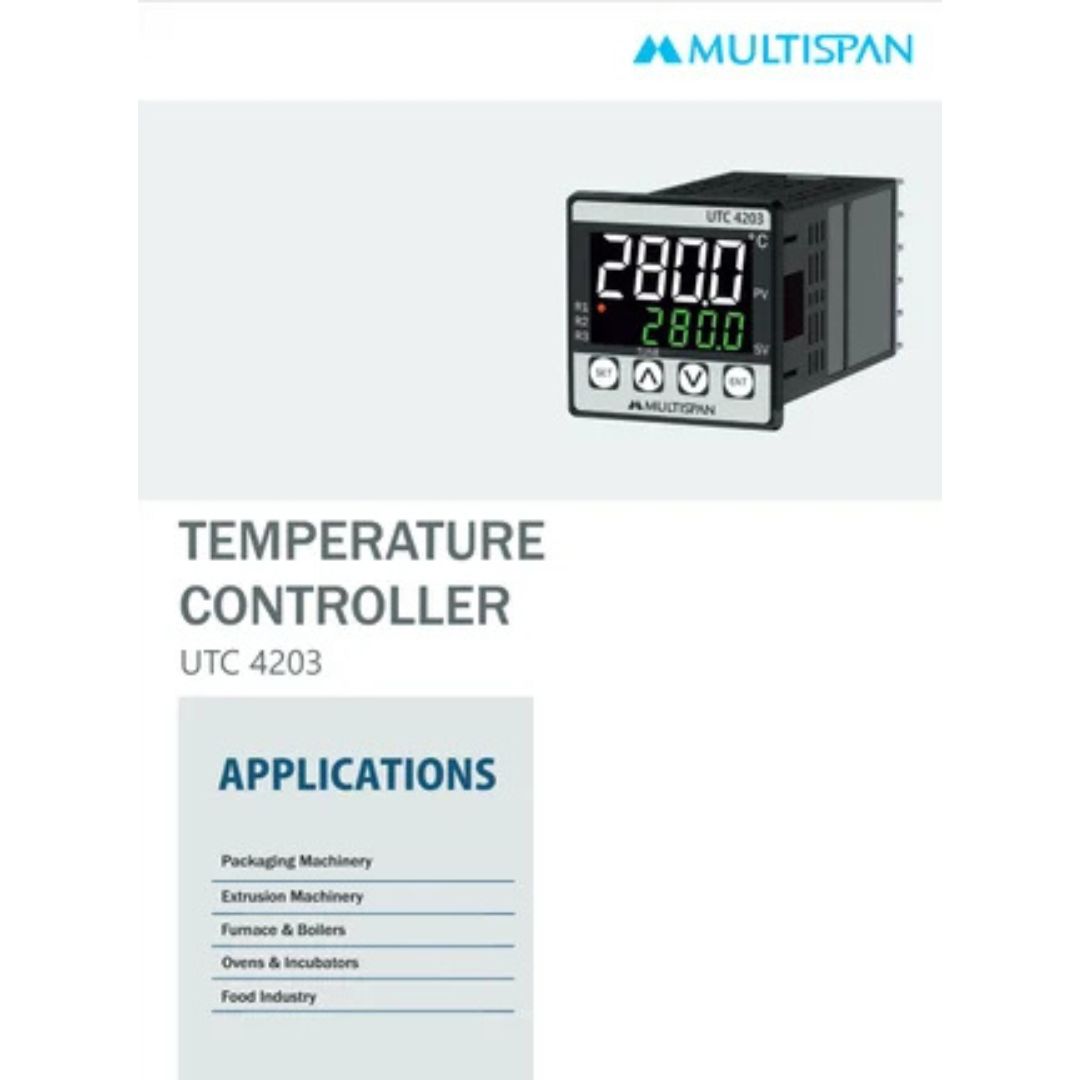

| Model |
UTC-4203 |
| Display |
UPPER:- 4 Digit 7 seg 0.56”, red LED Display |
| LOWER:- 4 Digit 7 seg 0.33”, green LED Display |

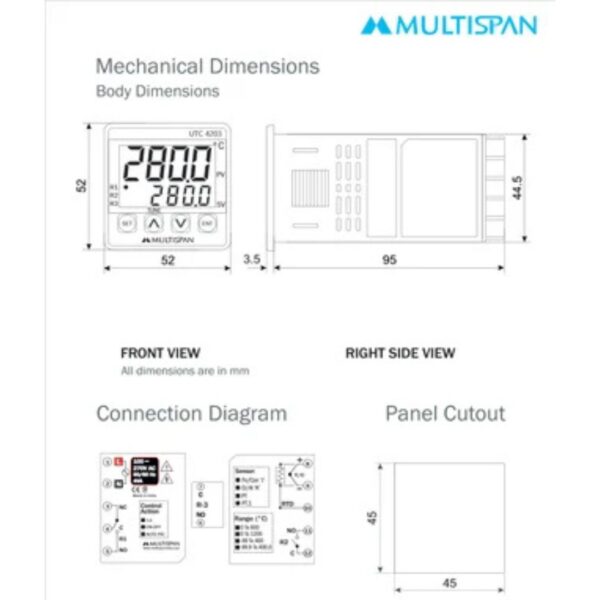

| Size (mm) |
48 (H) X 48 (W) X 95 (D) |
| Panel Cutout (mm) |
45 (H) X 45 (W) |

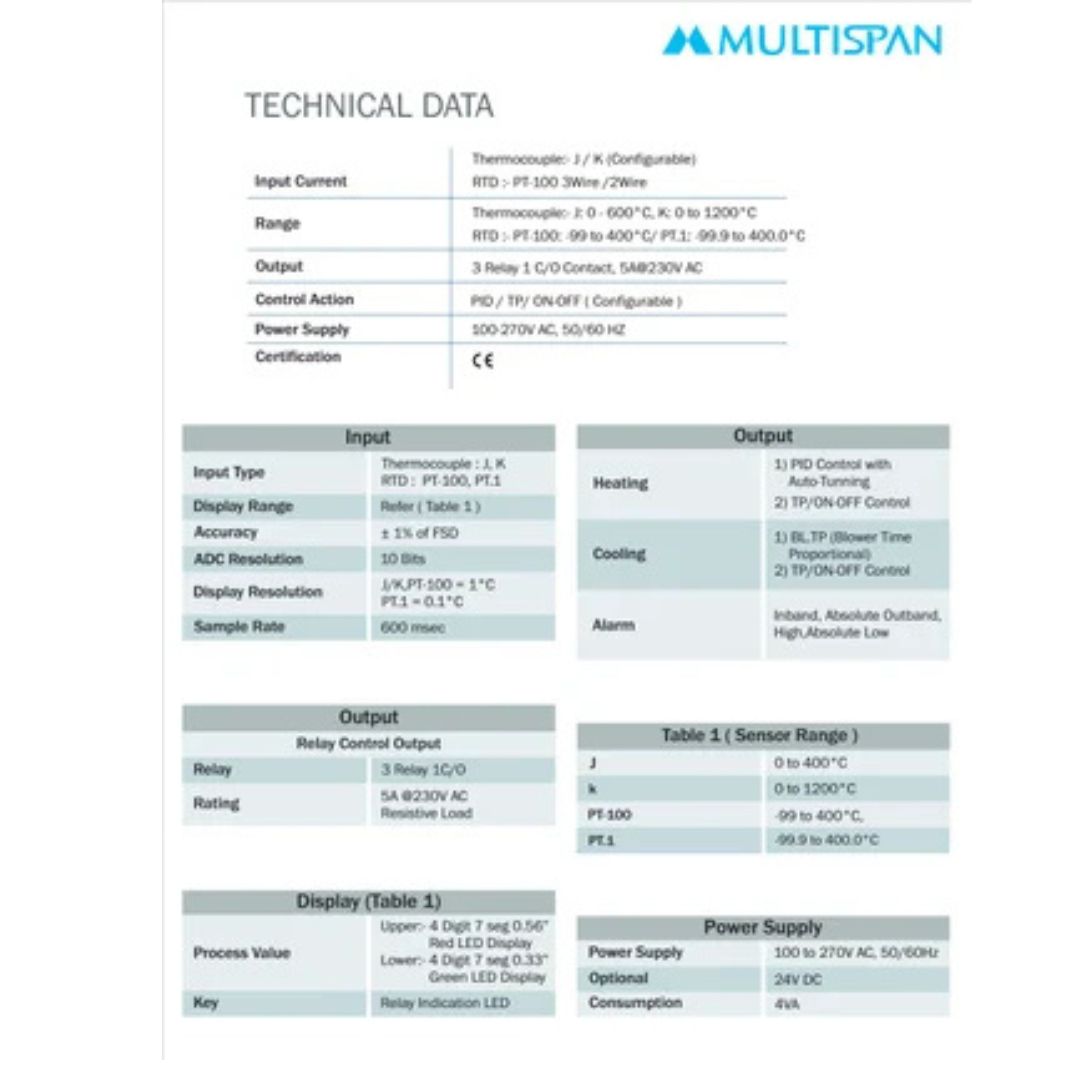

| Input |
J, K, PT-100 (selectable) |
| Temperature Range |
J: 0 to 600°C / K: 0 to 1200°C / |
| PT-100: -99 to 400ºC, PT.1: -99.0 to 400.0°C |
| Control Action |
PID/TP/ ON-OFF (selectable) |
| Output |
3-Relay, 1C/O Contact, 5A,230V AC, |
| Power Supply |
100 to 270V AC,50/60 Hz, Approx 4VA |
| Protection Level |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
| (As per request) |

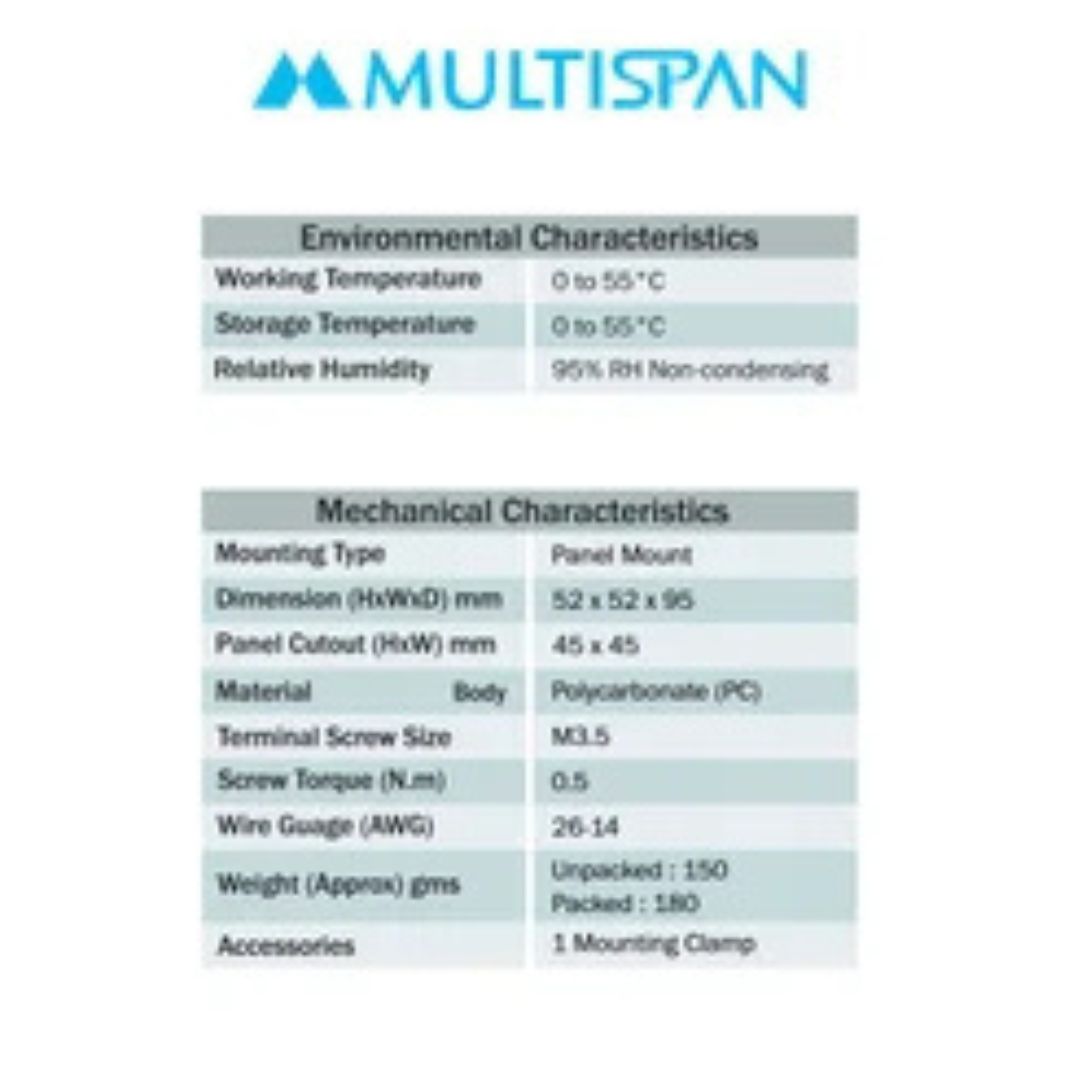

| Operating Temperature |
0°C To 55°C |
| Relative Humidity |
Upto 95% RH Non Condensing |
