| Usage/Application | Industrial |
| Brand | Multispan |
| Color | Grey |
| Display Count | 4-Digit Single Display with 4-Digit Thumbwheel |
| Memory | Yes / No (Selectable) |
| Power Supply | 100 to 270V AC, 50 Hz, Approx 4VA |
| Display Type | Digital |
| Country of Origin | Made in India |

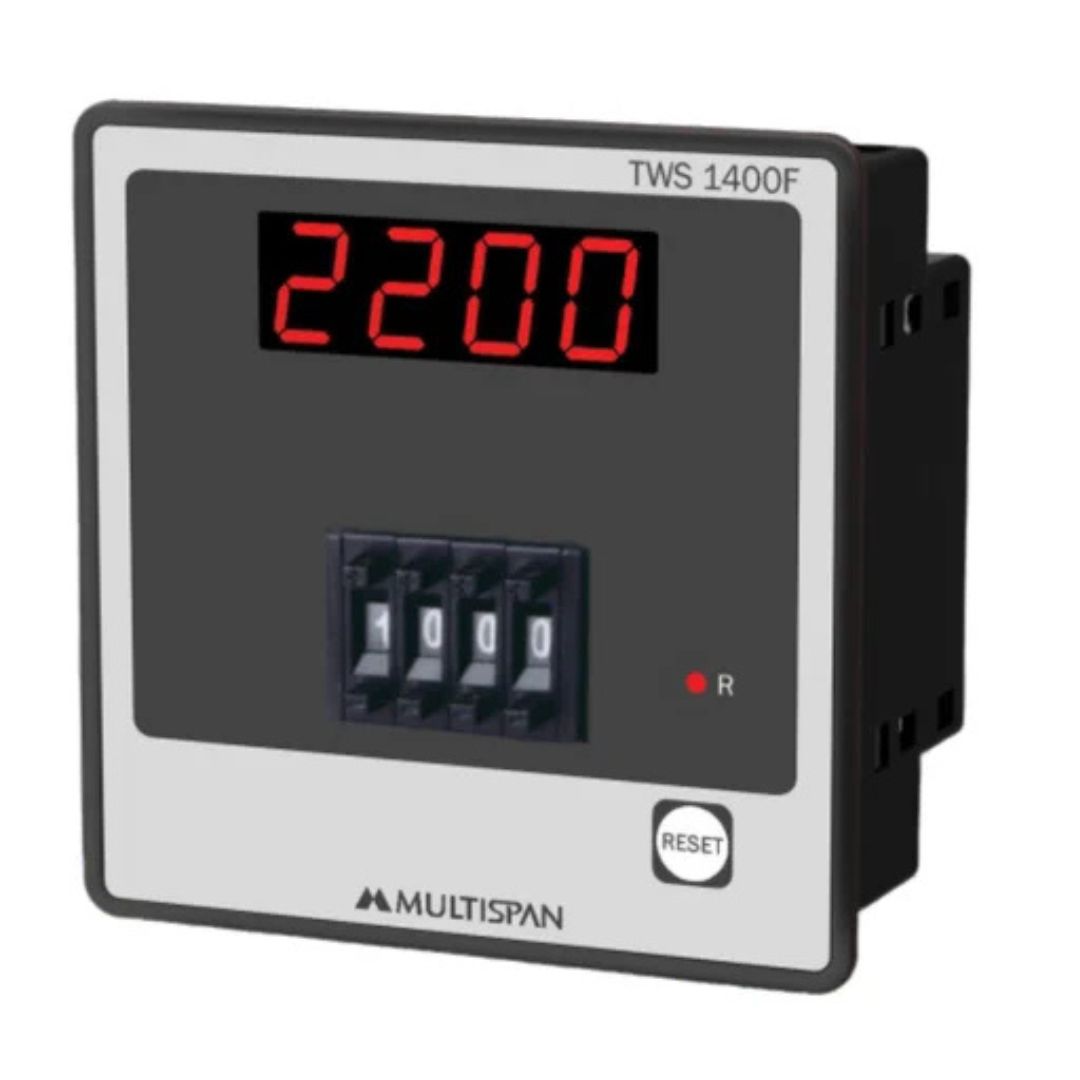

Thumbwheel Counter
Product: TWS-1400F
- Proximity or Micro Switch Input
- 4-Digit Single Display with 4-Digit Thumbwheel
- 1 Relay 2C/O Output
- Up-Down Count Direction Selectable
- Size: (H)96mm x (W)96mm x (D)54mm
- Supply Voltage: 100-270V AC
| Model | TWS – 1400F | ||
| Display | 4-Digit, 7-Seg 0.56”,RED LED Display | ||
| Size (mm) | 96 (H) X 96 (W) X 54 (D) | ||
| Panel Cutout (mm) | 92 (H) X 92 (W) | ||
| Input | Proximity NPN / PNP (Selectable) & Micro Switch | ||
| Output | 1-Relay, 2-C/O Contact, 230V AC, 5A | ||
| Power Supply | 100 to 270V AC, 50 Hz, Approx 4VA | ||
| Memory | Yes / No (Selectable) | ||
| Delay ON/Delay OFF | Selectable | ||
| Over Counting /No Over Counting | Selectable | ||
| Speed Selection | Selectable | ||
| Protection Level (As per request) | IP-65(Front side) AS per IS/IEC 60529:2001 | ||
| Operating Temperature | 0°C To 55°C | ||
| Relative Humidity | Upto 95% RH Non Condensing | ||
