Protection Relays
Phase Sequence Relay Din Rail
| Current Rating | 5A |
| Voltage Type | AC |
| Phase Asymmetry | >40V AC (L-L) |
| Phase Loss | < 280V AC (L-L) |
| System | 3 Phase 3 Wire Input |
| Supply Voltage | 280 to 520V AC (L-L) |
| Country of Origin | Made in India |

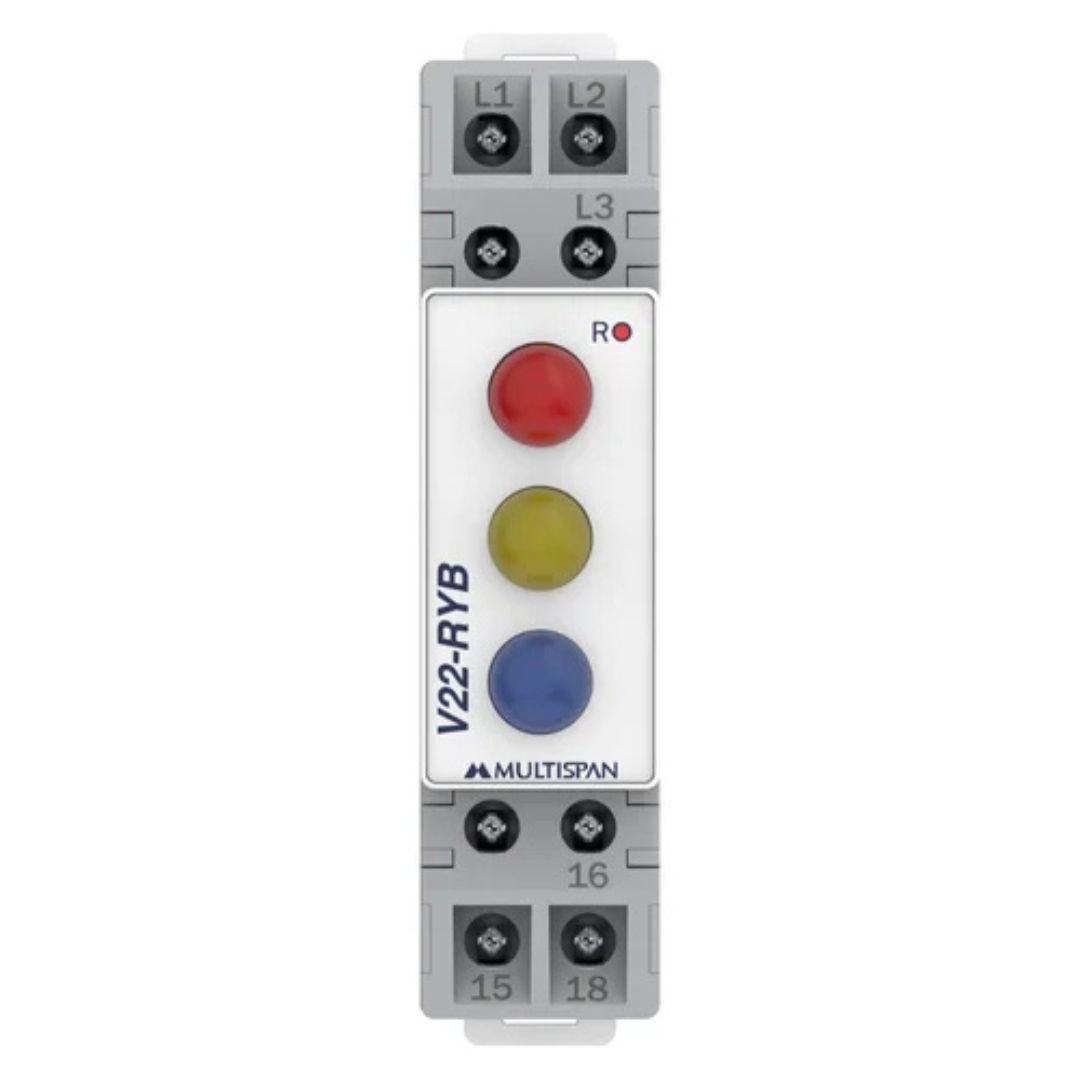

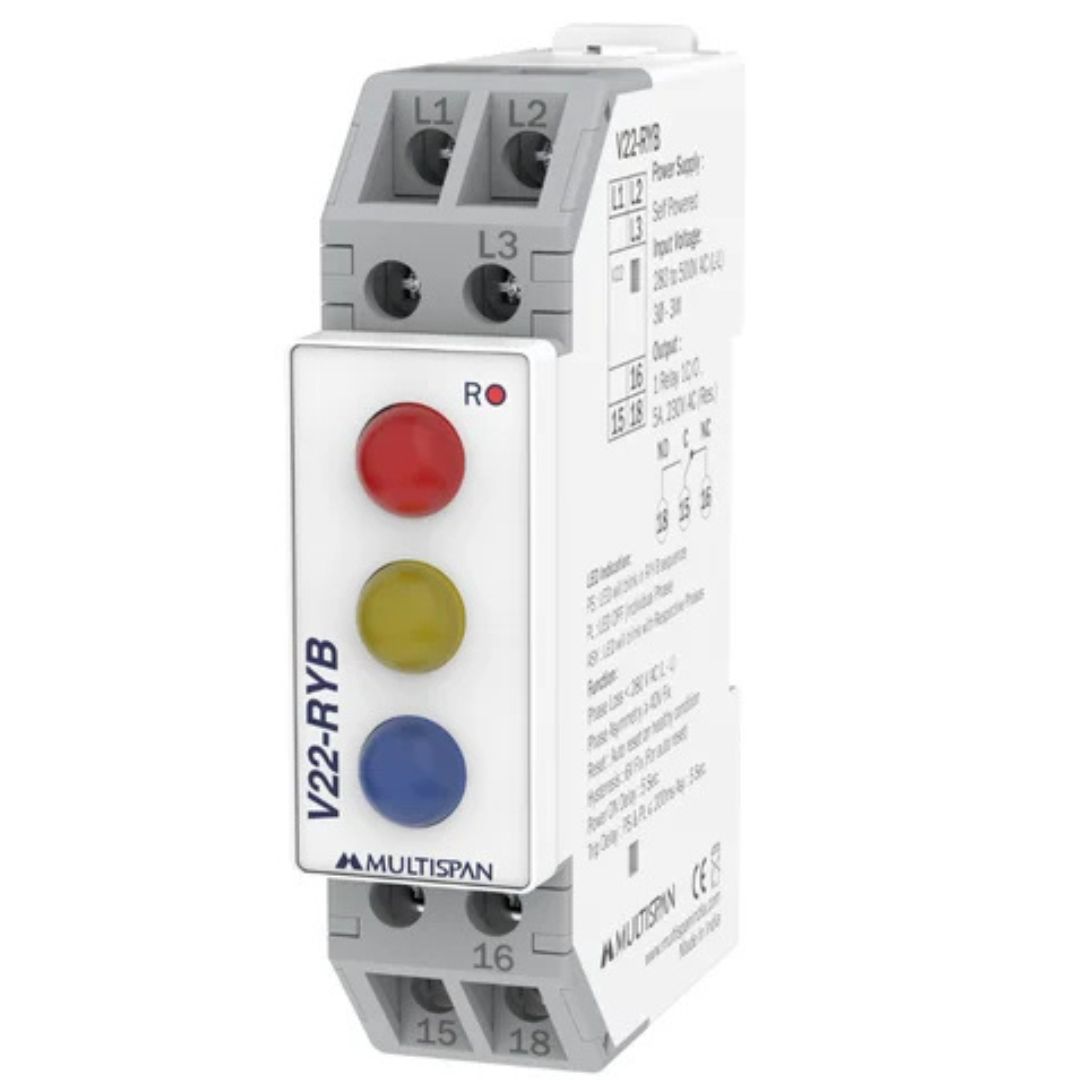

Product: Multispan V22-RYB
- 3 Phase 3 Wire Input
- Separate Aux supply not needed as it is self-powered
- Tripping parameter : Phase Sequence, Phase Loss & Phase Asymmetry
- 1 Relay 1 C/O
- Unique features for Tripping Fault Identifications : Front R-Y-B LED Indication
- Size: 90 X 22.5 X 72 (H XW X D) mm
| System | 3Ø – 3W |
| Supply Voltage | 280 to 520V AC (L-L) |
| Phase Loss | < 280V AC (L-L) |
| Phase Asymmetry | >40V AC (L-L) |
| Hysteresis | 6 V Fix (For Auto Reset) |
| Reset | Auto Reset on Healthy Condition |
| Output | 1 C/O, 5 A 230V AC 5A, 28V DC (Resistive Load) |
| Power ON Delay | 5 Second |
| Trip Delay | PS & PL < 200ms Asy : 5 Sec. |
