| Piston Diameter | As Per Drawing |
| Cylinder bore/ Cushion stroke (mm) | 32/21, 40/23, 50/23, 63/23, 80/28, 100/28, 125/40, 160/40, 200/40, 250/50 |
| Material | Aluminium, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular), FKM (High temperature) |
| Working pressure | : 0.5 – 10 bar |
| Mountings | Foot Mounting, Front Flange, Rear Flange, Male Clevis, Female Clevis, Female Clevis (king Pin) |
| Standard strokes (mm): | 25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500 |
| Media | Compressed air – filtered – lubricated |
| Medium temperature | : Regular +5 DegreeC to +60 DegreeC / High temperature applications- +5 DegreeC to +150 DegreeC Max |
| Country of Origin | Made in India |

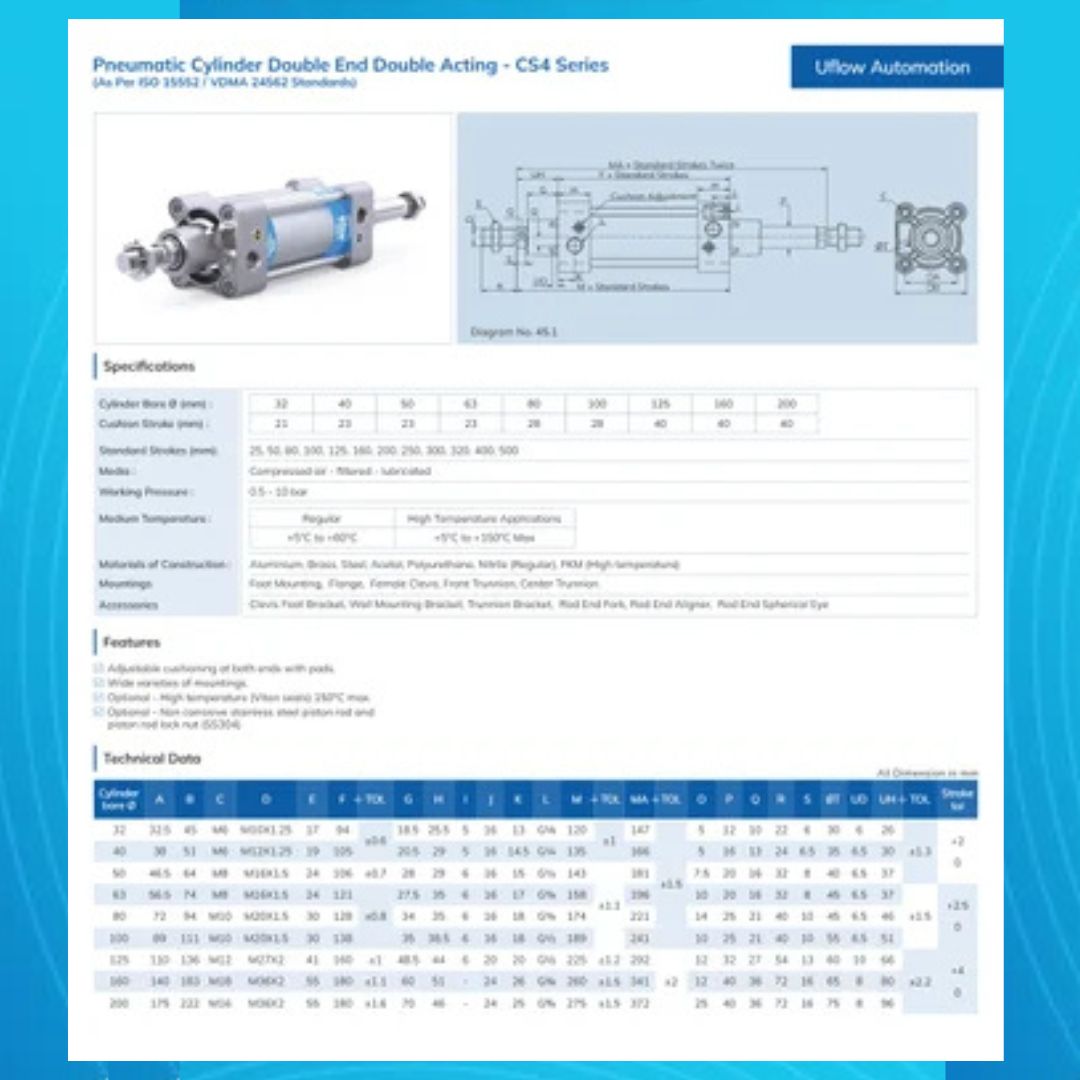

Uflow Pneumatic Cylinder Double End Double Acting CS4 Series
Features:
- As Per ISO 15552 / VDMA 24562 Standards
- Adjustable cushioning at both ends with elastomer pads.
- Wide varieties of mountings. Features
- Optional – High temperature (Viton seals) 150°C max.
- Optional – Non corrosive stainless steel piston rod and piston rod lock nut (SS304)
