| Operating Pressure | 10 bar |
| Material | Aluminium |
| Usage/Application | Industrial |
| Type | Single acting |
| Shape | Square |
| Automation Grade | Automatic |
| Structure | Square |
| Operating Temperature | 150 degrees |
| Material Grade | Aluminium, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular), FKM (High temperature) |
| Stroke Length (mm) | 25 -500 mm |
| Double Acting | Yes |
| Mountings | Foot Mounting, Front Flange, Rear Flange, Male Clevis, Female Clevis, Female Clevis (king Pin) |
| Cylinder bore/ Cushion stroke (mm) | 32/21, 40/23, 50/23, 63/23, 80/28, 100/28 |
| Country of Origin | Made in India |

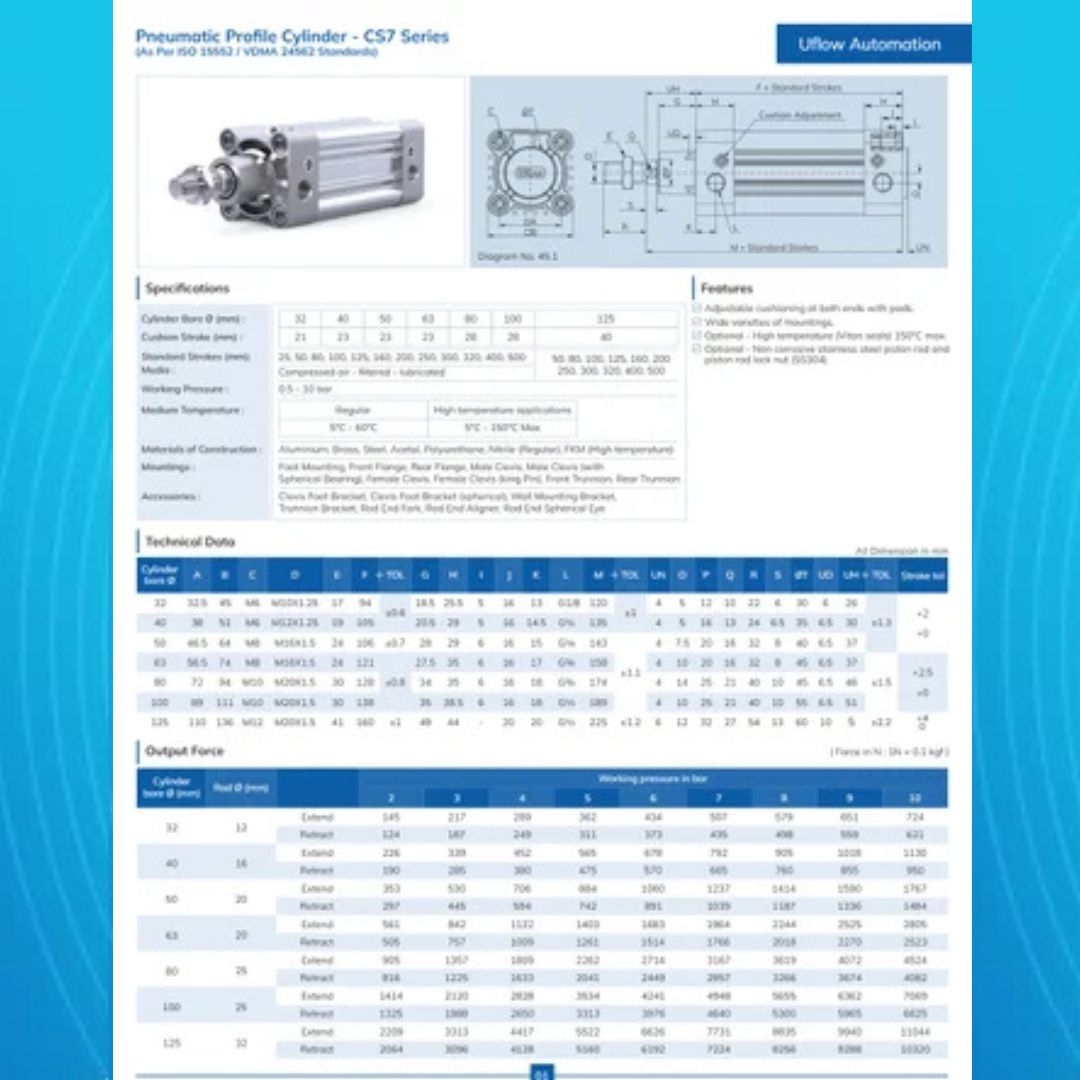

Uflow PNEUMATIC PROFILE CYLINDER CS7 Series
Features:
- (As Per ISO 15552 / VDMA 24562 Standards)
- Adjustable cushioning at both ends with elastomer pads.
- Wide varieties of mountings. Features
- Optional – High temperature (Viton seals) 150°C max.
- Optional – Non corrosive stainless steel piston rod and piston rod lock nut (SS304)
