| Control Type | PID |
| No of digits | 3+7 |
| Mounting Type | Flush Mounting |
| Display Size | 96*96 mm |
| Output type | Relay |
| Sensor Input | RTD, Thermocouple |
| Indication Accuracy | +-1% of FSD (FSD:- Full Scale Deflection) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Resolution | J,K,PT-100 = 1 DegreeC, PT.1 = 0.1 DegreeC |
| Country of Origin | Made in India |

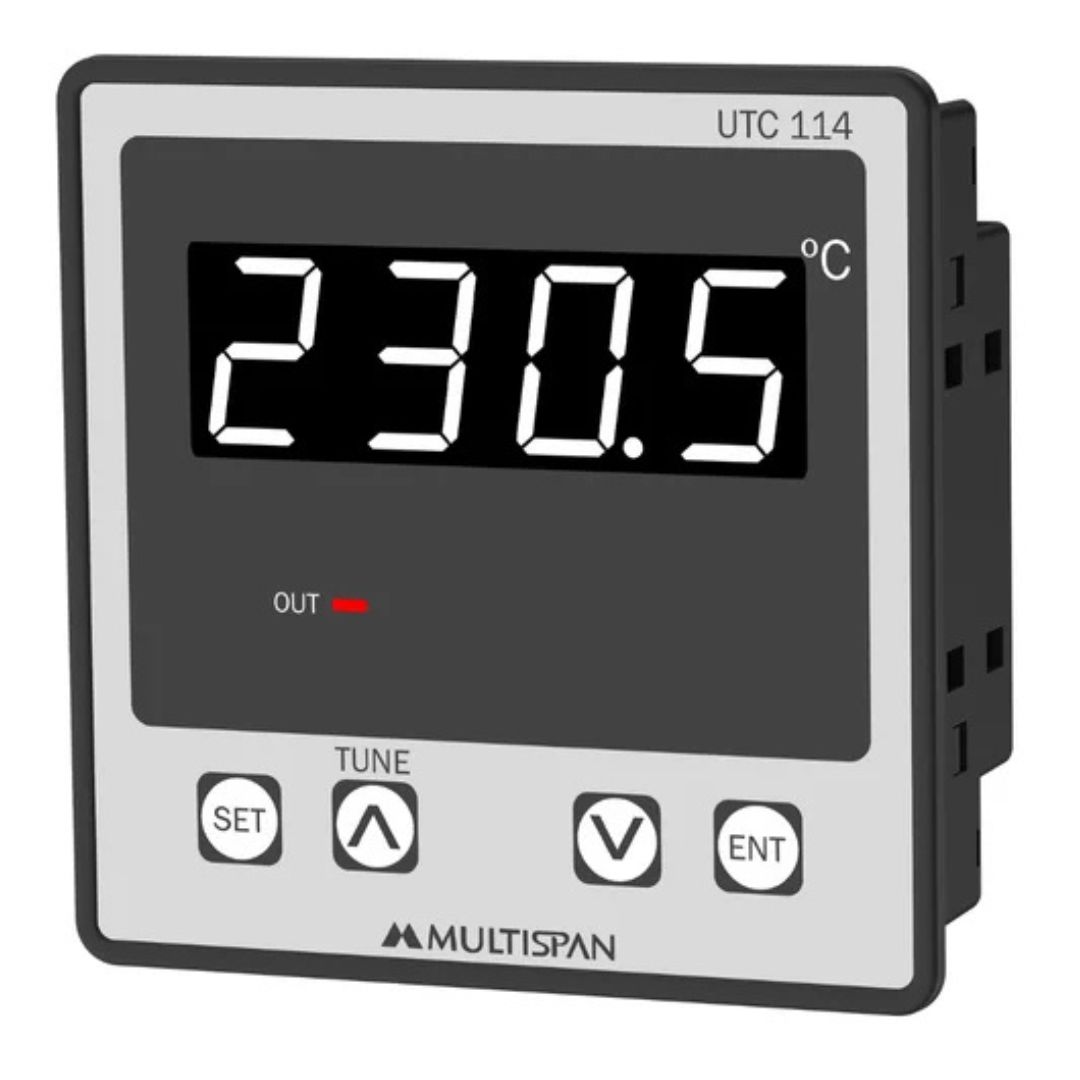

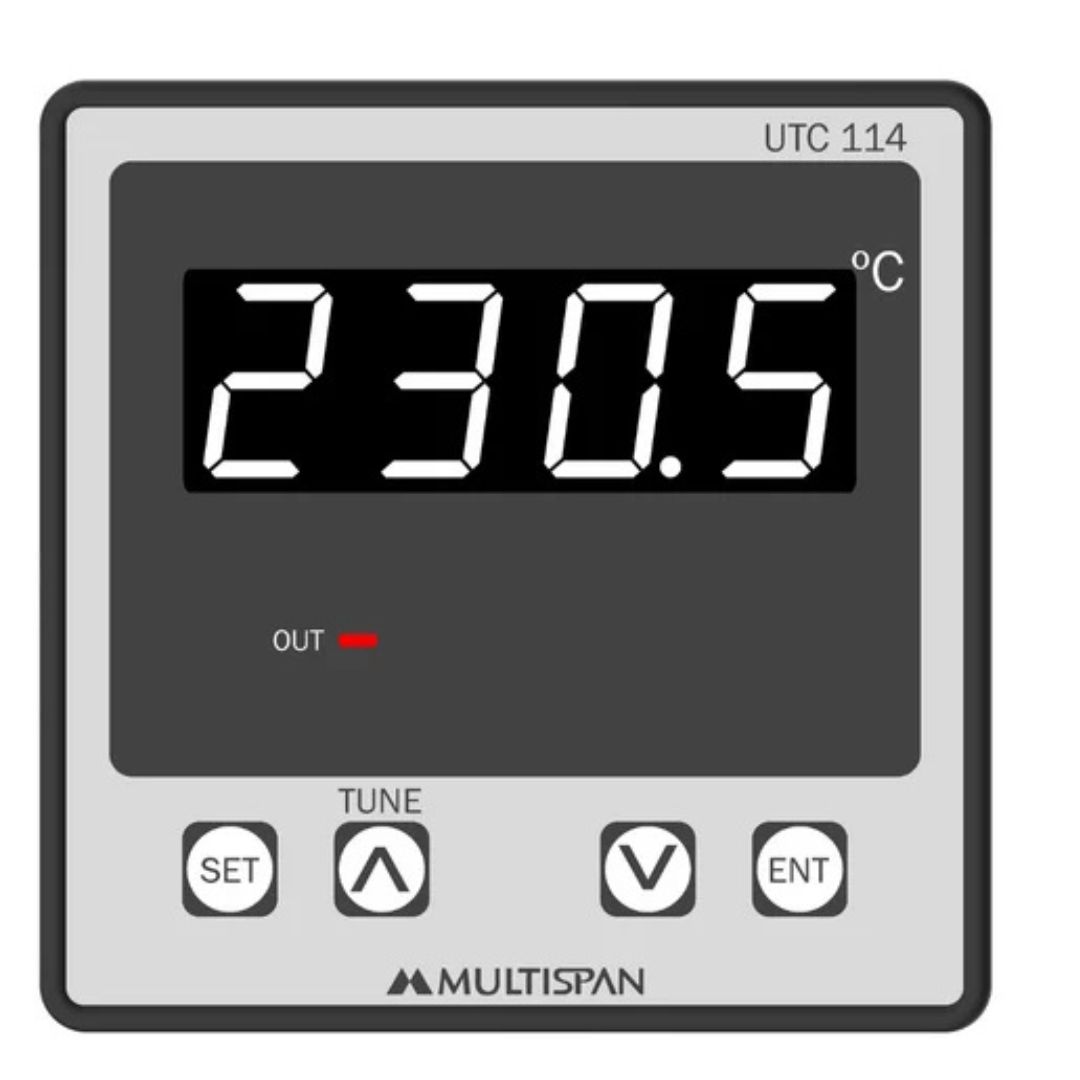

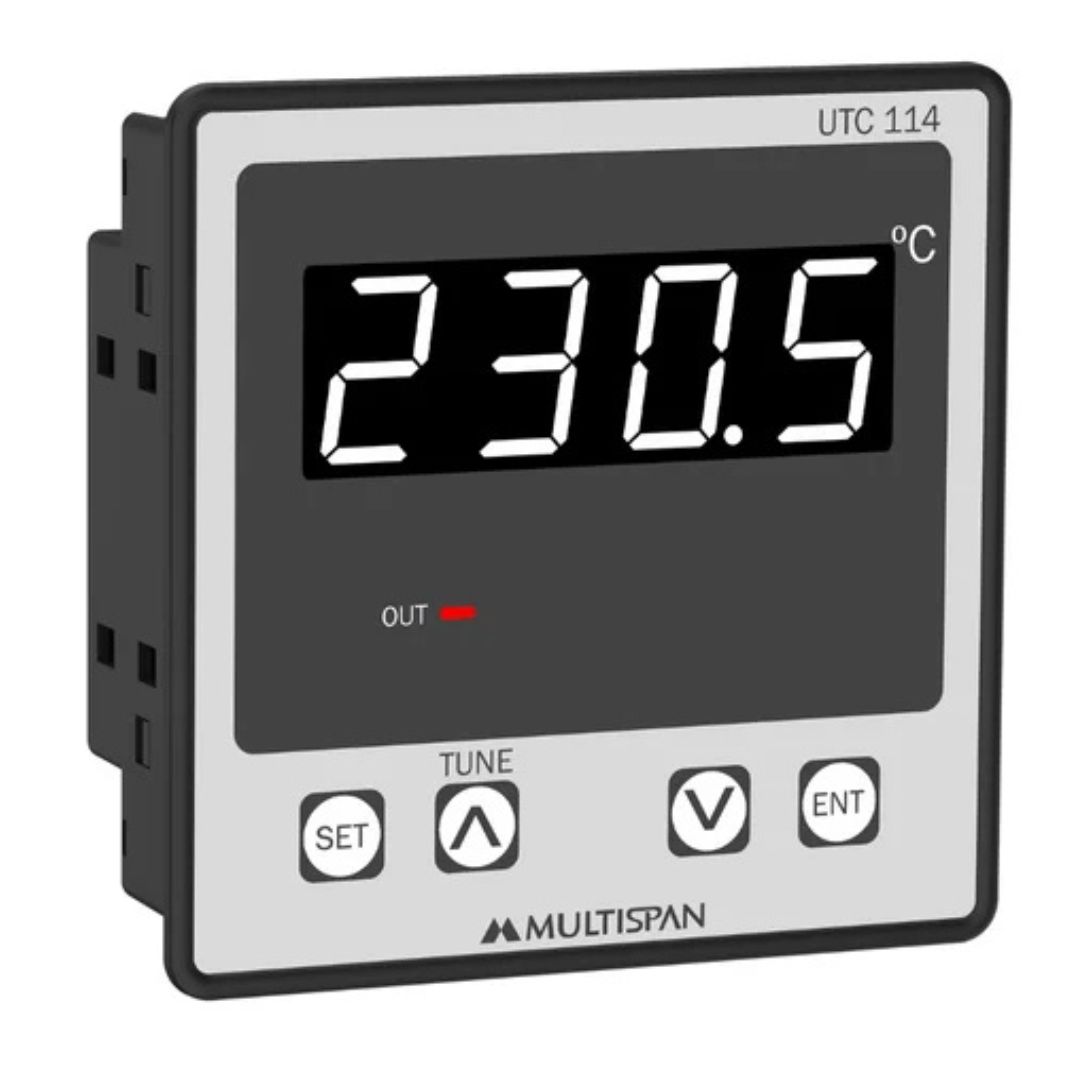

Universal Input Single Display PID Controller
- Universal Input (J/K/RTD)
- 4-Digit Single Red/White LED Display
- PID/On-Off Controller
- Single Output (Relay || SSR) for Load Control
- Size: (H)96mm x (W)96mm x (D)43mm
- Supply Voltage: 100-270V AC

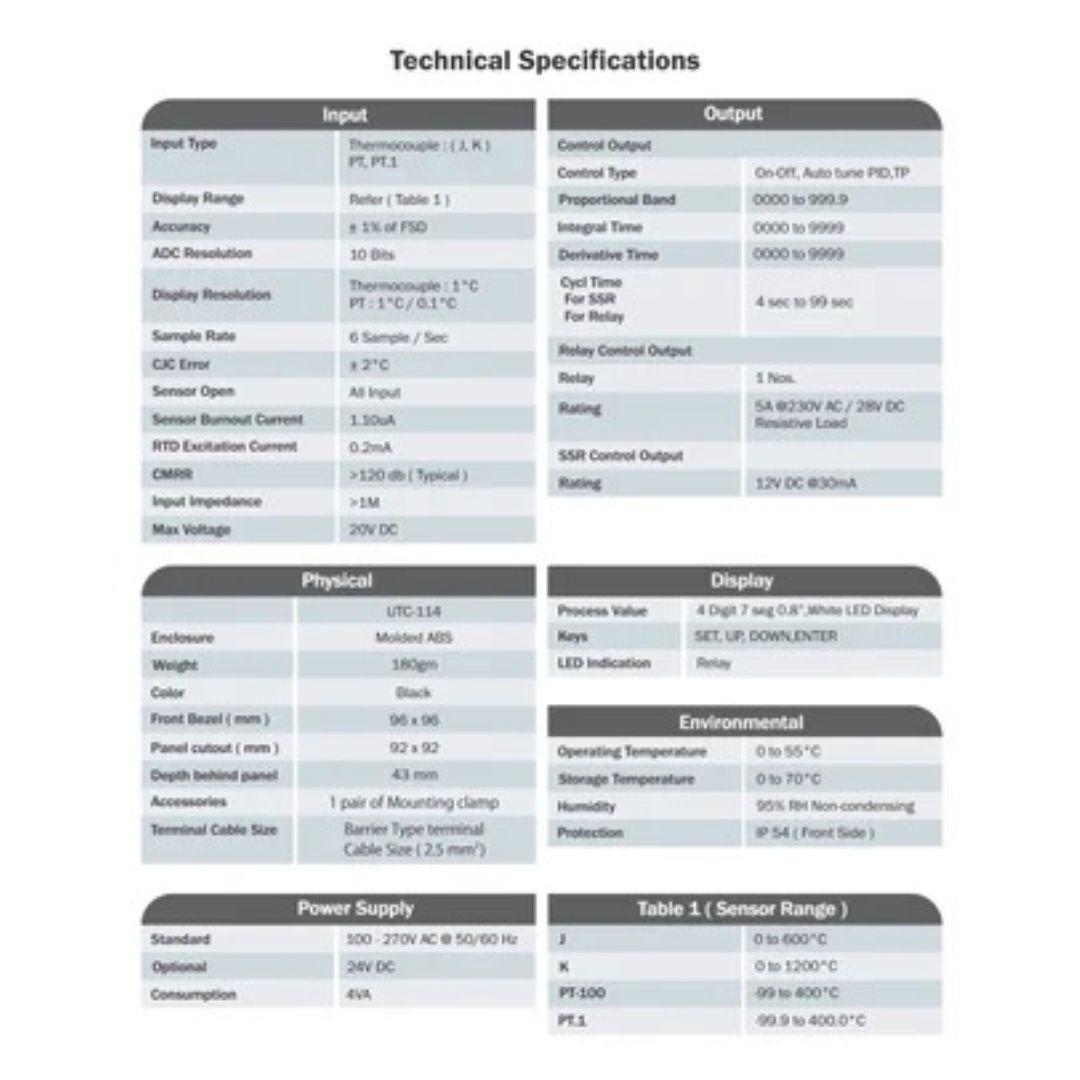

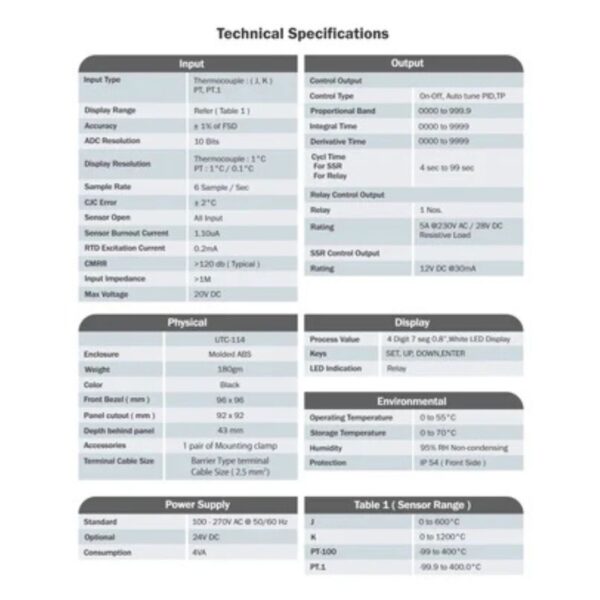

| INPUT SPECIFICATION: | ||
| Input Types | Input | Range |
| J | 0 to 600°C | |
| K | 0 to 1200°C | |
| PT-100 | -99 to 400°C | |
| PT.1 | -99.9 to 400.0°C | |
| Resolution | J,K,PT-100 = 1°C, PT.1 = 0.1°C | |
| Indication Accuracy | ±1% of FSD | |
| (FSD:- Full Scale Deflection) | ||
| DISPLAY AND KEYS: | ||
| Display | 4-Digit, 7-Segment, 0.8” Red | |
| Keys | SET, INC, DEC, ENT | |

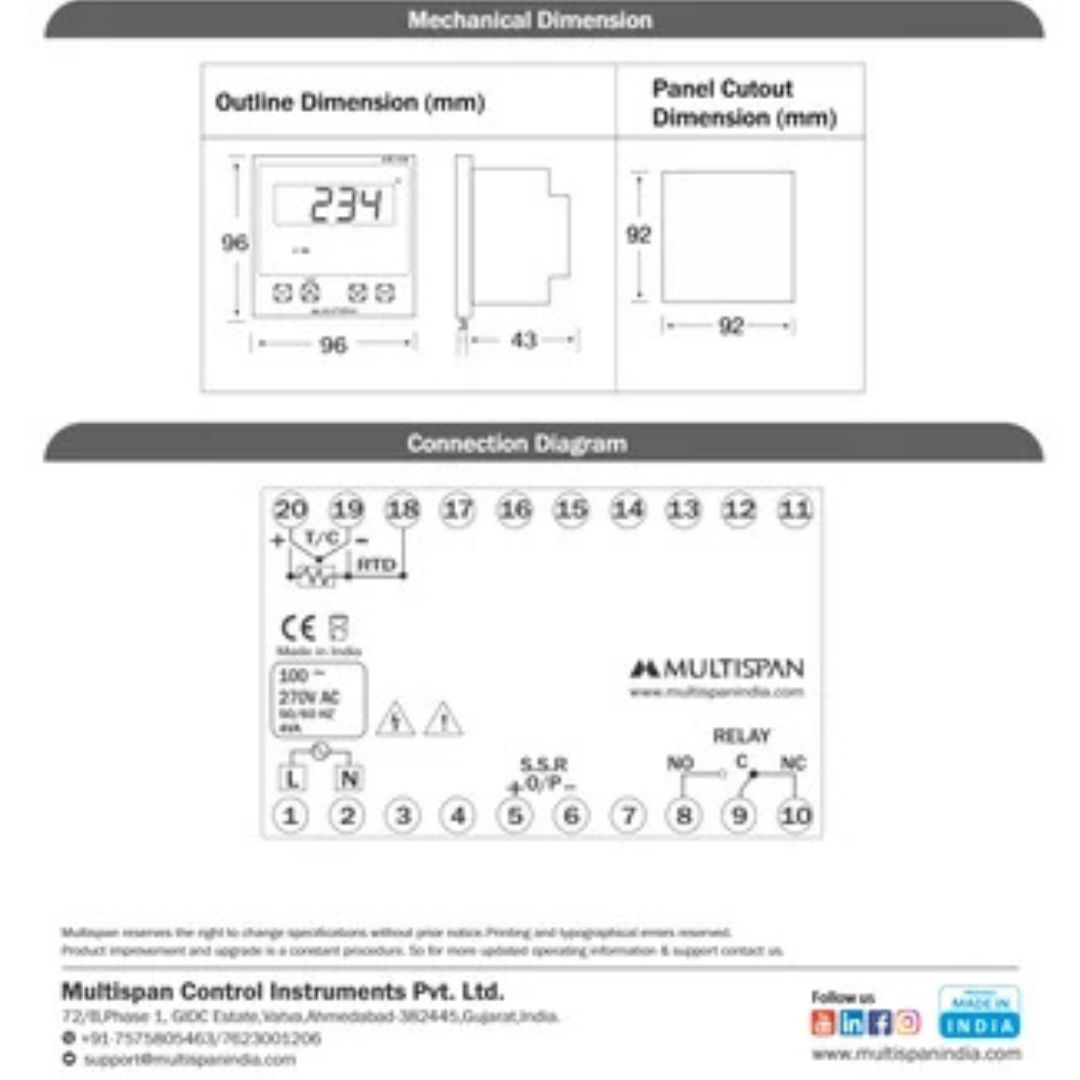

| DIMENSION: | ||
| Size (mm) | 96 (H) x 96 (W) x 43 (D) | |
| Panel Cutout (mm) | 92 (H) x 92 (W) | |
| CONTROL METHOD: | ||
| Heating | 1. PID control with Auto-Tuning | |
| 2. (TP) Time Proportional | ||
| 3. On-Off Control | ||
| Cooling | ON-OFF control | |
| OUTPUT SPECIFICATION: | ||
| Relay Output | ||
| Relay | 1 Nos | |
| Relay Type | 1C/O (NO-C-NC) | |
| Rating | 10A, 230V AC / 28V DC (Reg. Load) | |
| SSR Drive Output | ||
| Output Signal | 12V DC, 30mA DC (On-Off condition) | |
| POWER SUPPLY: | ||
| Supply Voltage | 100 to 270V AC, 50-60Hz | |
| Power Consumption (VA Rating) | 4VA @ 230V AC MAX | |
| ENVIRONMENT CONDITION: | ||
| Operating Temp. | 0°C to 55°C | |
| Relative Humidity(As per request) | Upto 95% RH
(non-condensing) |
|
| IP-65 (Front side) As per IS/IEC 60529 : 2001 | ||
| Protection Level | ||
